How can I get a price quote for Siemens 6ES7648-2BF10-0XF0?

You can request a fast quote for Siemens 6ES7648-2BF10-0XF0 from Yılsa Engineering. Reference part number CEY-8EF3B038690D. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7648-2BF10-0XF0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7648-2BF10-0XF0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7648-2BF10-0XF0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

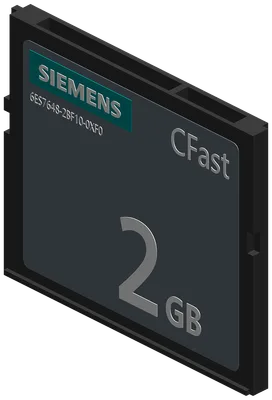

Siemens 6ES7648-2BF10-0XF0

SIMATIC CFast memory card, 2 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 2 GB

SiemensMFR # 6ES7648-2BF10-0XF0SKU # CEY-8EF3B038690D

Product type designationCFast memory card

Type of supply voltageDC

Rated value (DC)3.3 V; ±5 %

Active power input, typ.0.7 W; Inactive 0.3 W

Type of memoryCFast Type I

DesignSLC NAND flash

Have questions?Chat on WhatsApp

About This Product

SIMATIC CFast memory card, 2 GB, for IPCs with corresponding slot, scope of supply: 1 CFast 2 GB

Siemens 6ES7648-2BF10-0XF0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCFast memory card

Supply voltage

Type of supply voltageDC

Rated value (DC)3.3 V; ±5 %

Power

Active power input, typ.0.7 W; Inactive 0.3 W

Storage

Type of memoryCFast Type I

DesignSLC NAND flash

Memory size2 Gbyte; 1 year (data retention)

Speed classWrite speed: up to 60 MB/s (UDMA6), read speed: up to 100 MB/s (UDMA6)

SLC flash write cycles4; TB; number of write cycles determines the lifetime - with flash mass storage devices, the maximum number of possible write cycles is limited due to the physical properties of the flash cells. The intelligent data management of the flash controller ensures that the write cycle count of the mass storage device far surpasses the write cycles of a single flash memory cell. To ensure overall performance, it is recommended not use the memory area completely.

Standards, approvals, certificates

CE markYes

RoHS conformityYes

Ambient temperature during operation

min.-40 °C; Any mounting angle

max.85 °C; Any mounting angle

Ambient temperature during storage/transportation

min.-50 °C

max.100 °C

Relative humidity

Operation, max.85 %

Condensation permissibleNo
