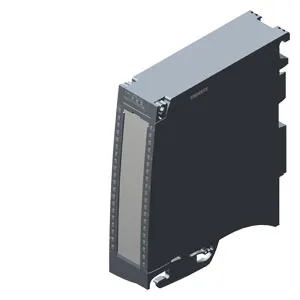

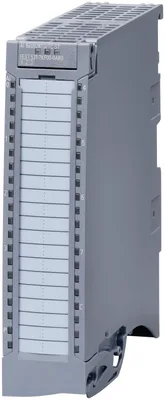

Siemens 6ES7531-7KF00-0AB0

SIMATIC S7-1500/ET 200MP, analog input module, AI 8xU/I/RTD/TC ST (35 mm); 16-bit resolution; accuracy 0.3%; 8 channels in one group (4 channels for RTD measurement); common mode voltage 10 V; diagnostics; hardware interrupts; calibrate in RUN; incl. U-connector and complete infeed and shielding set (without front connector)

SiemensMFR # 6ES7531-7KF00-0AB0SKU # CEY-937FC7800311

Product type designationAI 8xU/I/RTD/TC ST

HW functional statusFS04

Firmware versionV2.0.0

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7531-7KF00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationAI 8xU/I/RTD/TC ST

HW functional statusFS04

Firmware versionV2.0.0

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Prioritized startupNo

Measuring range scalableNo

Scalable measured valuesNo

Adjustment of measuring rangeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV12 / V12

STEP 7 configurable/integrated from versionV5.5 SP3 / -

PROFIBUS from GSD version/GSD revisionV1.0 / V5.1

PROFINET from GSD version/GSD revisionV2.3 / -

Operating mode

OversamplingNo

MSIYes

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

Current consumption, max.255 mA; with 19.2 V supply

24 V encoder supply

Short-circuit protectionYes

Output current, max.20 mA; Max. 47 mA per channel for a duration < 10 s

Power

Power consumption from the backplane bus0.7 W

Power loss

Power loss, typ.2.7 W

Address space per module

Inputs16 byte; typical, maximum 68 bytes, see manual for details

Outputs0 byte

Analog inputs

Number of analog inputs8

For current measurement8

For voltage measurement8

For resistance/resistance thermometer measurement4

For thermocouple measurement8

permissible input voltage for voltage input (destruction limit), max.28.8 V

permissible input current for current input (destruction limit), max.40 mA

Constant measurement current for resistance-type transmitter, typ.150 Ohm, 300 Ohm, 600 Ohm, Pt100, Pt200, Ni100: 1.25 mA; 6 000 Ohm, Pt500, Pt1000, Ni1000, LG-Ni1000: 0.625 mA; PTC: 0.472 mA

Technical unit for temperature measurement adjustableYes; °C/°F/K

Analog input with oversamplingNo

Standardization of measured valuesNo

Input ranges (rated values), voltages

0 to +5 VNo

0 to +10 VNo

1 V to 5 VYes

— Input resistance (1 V to 5 V)100 kΩ

-1 V to +1 VYes

— Input resistance (-1 V to +1 V)10 MΩ

-10 V to +10 VYes

— Input resistance (-10 V to +10 V)100 kΩ

-2.5 V to +2.5 VYes

— Input resistance (-2.5 V to +2.5 V)10 MΩ

-25 mV to +25 mVNo

-250 mV to +250 mVYes

— Input resistance (-250 mV to +250 mV)10 MΩ

-5 V to +5 VYes

— Input resistance (-5 V to +5 V)100 kΩ

-50 mV to +50 mVYes

— Input resistance (-50 mV to +50 mV)10 MΩ

-500 mV to +500 mVYes

— Input resistance (-500 mV to +500 mV)10 MΩ

-80 mV to +80 mVYes

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

-20 mA to +20 mAYes

— Input resistance (-20 mA to +20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)25 Ω; Plus approx. 42 ohms for overvoltage protection by PTC

Input ranges (rated values), thermocouples

Type BYes

— Input resistance (Type B)10 MΩ

Type CNo

Type EYes

— Input resistance (Type E)10 MΩ

Type JYes

— Input resistance (type J)10 MΩ

Type KYes

— Input resistance (Type K)10 MΩ

Type LNo

Type NYes

— Input resistance (Type N)10 MΩ

Type RYes

— Input resistance (Type R)10 MΩ

Type SYes

— Input resistance (Type S)10 MΩ

Type TYes

— Input resistance (Type T)10 MΩ

Type TXK/TXK(L) to GOSTNo

Input ranges (rated values), resistance thermometer

Cu 10No

Cu 10 according to GOSTNo

Cu 50No

Cu 50 according to GOSTNo

Cu 100No

Cu 100 according to GOSTNo

Ni 10No

Ni 10 according to GOSTNo

Ni 100Yes; Standard/climate

— Input resistance (Ni 100)10 MΩ

Ni 100 according to GOSTNo

Ni 1000Yes; Standard/climate

— Input resistance (Ni 1000)10 MΩ

Ni 1000 according to GOSTNo

LG-Ni 1000Yes; Standard/climate

— Input resistance (LG-Ni 1000)10 MΩ

Ni 120No

Ni 120 according to GOSTNo

Ni 200 according to GOSTNo

Ni 500No

Ni 500 according to GOSTNo

Pt 10No

Pt 10 according to GOSTNo

Pt 50No

Pt 50 according to GOSTNo

Pt 100Yes; Standard/climate

— Input resistance (Pt 100)10 MΩ

Pt 100 according to GOSTNo

Pt 1000Yes; Standard/climate

— Input resistance (Pt 1000)10 MΩ

Pt 1000 according to GOSTNo

Pt 200Yes; Standard/climate

— Input resistance (Pt 200)10 MΩ

Pt 200 according to GOSTNo

Pt 500Yes; Standard/climate

— Input resistance (Pt 500)10 MΩ

Pt 500 according to GOSTNo

Input ranges (rated values), resistors

0 to 150 ohmsYes

— Input resistance (0 to 150 ohms)10 MΩ

0 to 300 ohmsYes

— Input resistance (0 to 300 ohms)10 MΩ

0 to 600 ohmsYes

— Input resistance (0 to 600 ohms)10 MΩ

0 to 3000 ohmsNo

0 to 6000 ohmsYes

— Input resistance (0 to 6000 ohms)10 MΩ

PTCYes

— Input resistance (PTC)10 MΩ

Temperature compensation

— ParameterizableYes

— internal temperature compensationYes

— external temperature compensation via RTDYes

— Compensation for 0 °C reference point temperatureYes; fixed value can be set

— Reference channel of the moduleYes

Cable length

shielded, max.800 m; for U/I, 200 m for R/RTD, 50 m for TC

Analog value generation for the inputs

Measurement principleintegrating

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes

Integration time (ms)2,5 / 16,67 / 20 / 100 ms

Basic conversion time, including integration time (ms)9 / 23 / 27 / 107 ms

— additional conversion time for wire-break monitoring9 ms (to be considered in R/RTD/TC measurement)

— additional conversion time for resistance measurement150 ohm, 300 ohm, 600 ohm, Pt100, Pt200, Ni100: 2 ms, 6000 ohm, Pt500, Pt1000, Ni1000, LG-Ni1000, PTC: 4 ms

Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 / 10 Hz

Time for offset calibration (per module)Basic conversion time of the slowest channel

Smoothing of measured values

Number of smoothing levels4

parameterizableYes

Step: NoneYes

Step: lowYes

Step: MediumYes

Step: HighYes

Connection of signal encoders

for voltage measurementYes

for current measurement as 2-wire transducerYes

— Burden of 2-wire transmitter, max.820 Ω

for current measurement as 4-wire transducerYes

for resistance measurement with two-wire connectionYes; Only for PTC

for resistance measurement with three-wire connectionYes; All measuring ranges except PTC; internal compensation of the cable resistances

for resistance measurement with four-wire connectionYes; All measuring ranges except PTC

Errors/accuracies

Linearity error (relative to input range), (+/-)0.02 %

Temperature error (relative to input range), (+/-)0.005 %/K; With TC type T 0.02 ± % / K

Crosstalk between the inputs, max.-80 dB

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.02 %

Temperature error of internal compensation±6 °C

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.3 %

Current, relative to input range, (+/-)0.3 %

Resistance, relative to input range, (+/-)0.3 %

Resistance thermometer, relative to input range, (+/-)Ptxxx standard: ±1.5 K, Ptxxx climate: ±0.5 K, Nixxx standard: ±0.5 K, Nixxx climate: ±0.3 K

Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±4.6 K, type E: > -200 °C ±1.5 K, type J: > -210 °C ±1.9 K, type K: > -200 °C ±2.4 K, type N: > -200 °C ±2.9 K, type R: > 0 °C ±4.7 K, type S: > 0 °C ±4.6 K, type T: > -200 °C ±2.4 K

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.1 %

Current, relative to input range, (+/-)0.1 %

Resistance, relative to input range, (+/-)0.1 %

Resistance thermometer, relative to input range, (+/-)Ptxxx standard: ±0.7 K, Ptxxx climate: ±0.2 K, Nixxx standard: ±0.3 K, Nixxx climate: ±0.15 K

Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±1.7 K, type E: > -200 °C ±0.7 K, type J: > -210 °C ±0.8 K, type K: > -200 °C ±1.2 K, type N: > -200 °C ±1.2 K, type R: > 0 °C ±1.9 K, type S: > 0 °C ±1.9 K, type T: > -200 °C ±0.8 K

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.40 dB

Common mode voltage, max.10 V

Common mode interference, min.60 dB

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes; two upper and two lower limit values in each case

Diagnoses

Monitoring the supply voltageYes

Wire breakYes; Only for 1 to 5 V, 4 to 20 mA, TC, R, and RTD

Short-circuitNo

Group errorNo

Overflow/UnderflowYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDNo

Monitoring of the supply voltage (PWR-LED)Yes; green LED

Channel status displayYes; green LED

for channel diagnosticsYes; red LED

for module diagnosticsYes; red LED

Potential separation channels

between the channelsNo

between the channels, in groups of8

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Permissible potential difference

between the inputs (UCM)20 V DC

Between the inputs and MANA (UCM)10 V DC

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

Suitable for applications according to AMS 2750Yes; Declaration of Conformity, see online support entry 109757262

Suitable for applications according to CQI-9Yes; Based on AMS 2750 E

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]38.6 kg

— global warming potential, (during production) [CO2 eq]14.4 kg

— global warming potential, (during operation) [CO2 eq]24.6 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.44 kg

Security

signed firmware updateNo

securely removing dataNo

data integrityNo

Ambient temperature during operation

horizontal installation, min.-25 °C; From FS08

horizontal installation, max.60 °C

vertical installation, min.-25 °C; From FS08

vertical installation, max.40 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Absolute humidity

dew point, min.-60 °C; suitable for dry room applications

Dimensions

Width35 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.310 g

Other

Note:please order front connectors (screw-in/push-in) separately

Cookie Notice

Siemens 6ES7531-7KF00-0AB0

About This Product

Siemens 6ES7531-7KF00-0AB0

Specifications

Related Products

1FN3003-0PB02-0AA3

1FN3003-0PB03-0AA3

1FN3003-0PB04-0BA3

1FN3003-0PB05-0BA3

1FN3050-0TB00-1..0

1FN3050-2NE00-0EA3

1FN3050-2NE00-0FA3

1FN3100-0TB00-1..0

1FN3002-0TK03-1AF0

1FN3050-1ND00-0HA3

Featured Products

AW20-N02CG-6CZ-B

CDJ2L16-125Z-B

VQZ2121-5LO1-N3T

NCDJ2L10-300-B

CM2B40-75Z

SY5420-5DZ-01

MTS32-150M

NCMC150-0600-X103US

CG5EN50SV-150

MXS-AS16L

Related Searches
