How can I get a price quote for Siemens 6ES7505-0RB00-0AB0?

You can request a fast quote for Siemens 6ES7505-0RB00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77FCBB3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7505-0RB00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7505-0RB00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7505-0RB00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

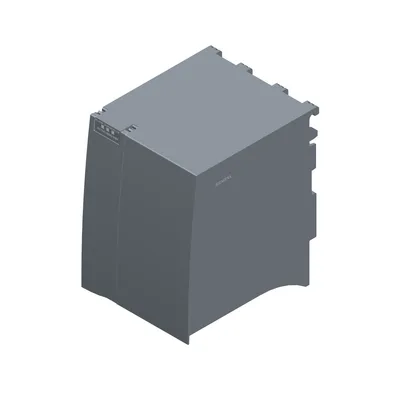

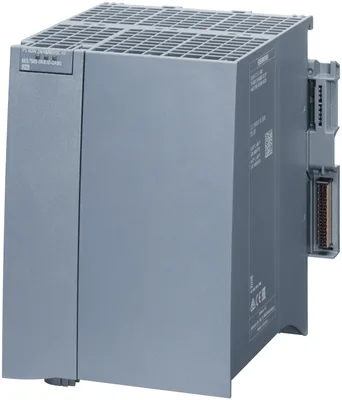

Siemens 6ES7505-0RB00-0AB0

SIMATIC S7-1500, System power supply with buffer functionality PS 60W 24/48/60V DC HF, supplies the backplane bus of the S7-1500 with operating voltage and permits the CPU to retain RAM (data) retentively

SiemensMFR # 6ES7505-0RB00-0AB0SKU # CEY-937FC77FCBB3

Product type designationPS 60 W 24/48/60 V DC HF

HW functional statusfrom FS01

Firmware versionfrom V1.0.0

Rated value (DC)24 V / 48 V / 60 V

permissible range, lower limit (DC)19.2 V; Static 19.2 V, dynamic 18.5 V

permissible range, upper limit (DC)72 V; Static 72 V, dynamic 75.5 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7505-0RB00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationPS 60 W 24/48/60 V DC HF

HW functional statusfrom FS01

Firmware versionfrom V1.0.0

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV14 SP1

Supply voltage

Rated value (DC)24 V / 48 V / 60 V

permissible range, lower limit (DC)19.2 V; Static 19.2 V, dynamic 18.5 V

permissible range, upper limit (DC)72 V; Static 72 V, dynamic 75.5 V

Reverse polarity protectionYes

Short-circuit protectionYes

Mains buffering

Mains/voltage failure stored energy time20 ms

Input current

Rated value at 24 V DC3 A

Rated value at 48 V DC1.5 A

Rated value at 60 V DC1.2 A

Inrush current, max.≤ 8 A for t ≤ 1 s

Output current

Short-circuit protectionYes

Power

Infeed power to the backplane bus60 W

Power loss

Power loss at nominal rating conditions12 W

Interrupts/diagnostics/status information

Status indicatorYes

Isolation

Isolation tested with2 500 V DC (type test)

Interference immunity against voltage surge

Interference immunity on supply lines acc. to IEC 61000-4-5Yes; ±1 kV (acc. to IEC 61000-4-5; 1995; surge symm.), ±2 kV (acc. to IEC 61000-4-5; 1995; surge asymm.), no external protective circuit required

Degree and class of protection

Equipment protection classI, with protective conductor

Ambient temperature during operation

min.-25 °C; up to FS02: 0 °C

max.60 °C

horizontal installation, min.-25 °C; up to FS02: 0 °C

horizontal installation, max.60 °C

vertical installation, min.-25 °C; up to FS02: 0 °C

vertical installation, max.40 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

Dimensions

Width105 mm

Height147 mm

Depth129 mm

Weights

Weight, approx.865 g
