Siemens 6ES7455-0VS00-0AE0

SIMATIC S7-400, control module FM 455 C, 16 channels, continuous, 8/16 AI + 16 DI+ 16 AO

SiemensMFR # 6ES7455-0VS00-0AE0SKU # CEY-8EF3B03869BC

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Power loss, typ.12 W

Power loss, max.17.3 W

Number of digital inputs16

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-400, control module FM 455 C, 16 channels, continuous, 8/16 AI + 16 DI+ 16 AO

Siemens 6ES7455-0VS00-0AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.440 mA; typ. 370 mA

Power loss

Power loss, typ.12 W

Power loss, max.17.3 W

Digital inputs

Number of digital inputs16

Input characteristic curve in accordance with IEC 61131, type 2Yes

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"13 to 30V

Input current

for signal "1", typ.7 mA

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Analog inputs

Number of analog inputs16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection

permissible input voltage for voltage input (destruction limit), max.20 V

permissible input current for current input (destruction limit), max.40 mA

Input ranges

VoltageYes

CurrentYes

ThermocoupleYes

Resistance thermometerYes

Input ranges (rated values), voltages

0 to +10 VYes

— Input resistance (0 to 10 V)100 kΩ

-1.75 V to +11.75 VYes

— Input resistance (-1.75 V to +11.75 V)100 kΩ

-80 mV to +80 mVYes

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)50 Ω

0 to 23.5 mAYes

— Input resistance (0 to 23.5 mA)50 Ω

-3.5 mA to +23.5 mAYes

— Input resistance (-3.5 mA to +23.5 mA)50 Ω

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)50 Ω

Input ranges (rated values), thermocouples

Type BYes

— Input resistance (Type B)10 MΩ

Type JYes

— Input resistance (type J)10 MΩ

Type KYes

— Input resistance (Type K)10 MΩ

Type RYes

— Input resistance (Type R)10 MΩ

Type SYes

— Input resistance (Type S)10 MΩ

Input ranges (rated values), resistance thermometer

Pt 100Yes

— Input resistance (Pt 100)10 MΩ

Temperature compensation

— internal temperature compensationYes; Parameterizable

— external temperature compensation with Pt100Yes; Parameterizable

Characteristic linearization

ParameterizableYes

— for thermocouplesType B, J, K, R, S

— for resistance thermometerPt100 (standard)

Cable length

shielded, max.200 m; 50 m at 80 mV and thermocouples

Analog outputs

Number of analog outputs16

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.25 mA

Current output, no-load voltage, max.18 V

Output ranges, voltage

0 to 10 VYes

-10 V to +10 VYes

Output ranges, current

0 to 20 mAYes

-20 mA to +20 mAYes

4 mA to 20 mAYes

Connection of actuators

for voltage output two-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.1 kΩ

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.500 Ω

with current outputs, inductive load, max.1 mH

Cable length

shielded, max.200 m; 50 m at 80 mV and thermocouples

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.14 bit; 12 bit or 14 bit, parameterizable

Conversion time (per channel)16.67 ms; for 12 bit: 16 2/3 ms for 60 Hz, 20 ms for 50 Hz; for 14 bit: 100 ms for 50 Hz and 60 Hz

Settling time

for resistive load0.1 ms

for capacitive load3.3 ms

for inductive load0.5 ms

Connection of signal encoders

for voltage measurementYes

for current measurement as 4-wire transducerYes

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)±0.6 to ±1%

Current, relative to input range, (+/-)±0.6 to ±1%

Resistance thermometer, relative to input range, (+/-)±0.6 to ±1%

Voltage, relative to output range, (+/-)0.5 %

Current, relative to output range, (+/-)0.6 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)±0.4 to ±0.6 %

Current, relative to input range, (+/-)±0.4 to ±0.6 %

Resistance thermometer, relative to input range, (+/-)±0.4 to ±0.6 %

Voltage, relative to output range, (+/-)0.4 %

Current, relative to output range, (+/-)0.5 %

Interrupts/diagnostics/status information

Substitute values connectableYes; Parameterizable

Control technology

Number of closed-loop controllers16; With thermocouples or 2-wire connection; 8 with Pt 100 or 4-wire connection

Potential separation controller

between the channelsNo

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V DC

Connection method

required front connector2x 48-pin

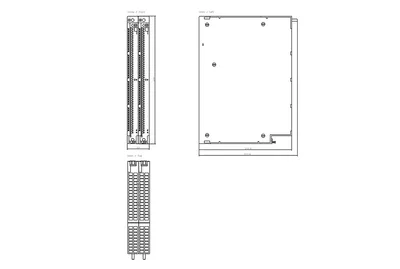

Dimensions

Width50 mm

Height290 mm

Depth210 mm

Weights

Weight, approx.1 400 g
