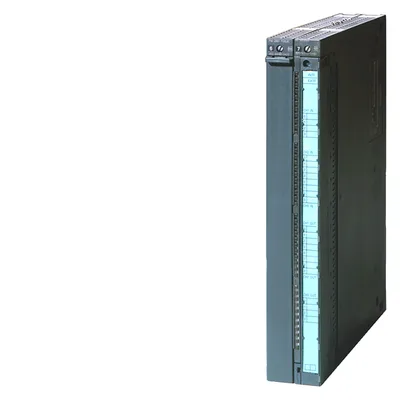

Siemens 6ES7453-3AH00-0AE0

SIMATIC S7-400, function module FM 453, (3-channel) for positioning with servo and stepper motors, incl. configuration package on CD

SiemensMFR # 6ES7453-3AH00-0AE0SKU # CEY-8EF3B03869BD

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V; Dynamic 18.5 V

permissible range, upper limit (DC)28.8 V; dynamic 30.2 V

from load voltage 2L+ to 4L+, max.2 A; Per channel

from backplane bus 5 V DC, max.1.6 A; Rated current

5 VYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-400, function module FM 453, (3-channel) for positioning with servo and stepper motors, incl. configuration package on CD

Siemens 6ES7453-3AH00-0AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Auxiliary voltage 1L+, load voltage 2L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V; Dynamic 18.5 V

permissible range, upper limit (DC)28.8 V; dynamic 30.2 V

Input current

from load voltage1L+, max.1 A; with 24 V position encoder; 1 A for 5 V position encoder

from load voltage 2L+ to 4L+, max.2 A; Per channel

from backplane bus 5 V DC, max.1.6 A; Rated current

5 V encoder supply

5 VYes

Output current, max.300 mA

Cable length, max.35 m; at max. 210 mA; 25 m at max. 300 mA

24 V encoder supply

24 VYes

Cable length, max.100 m; at max. 300 mA

Power loss

Power loss, typ.8 W

Digital inputs

Number of digital inputs6; for each channel/axis

Functionsconfigurable

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5 V (max. 3 mA)

for signal "1"11 to 30 V (max. 7 mA)

for standard inputs

— at "0" to "1", max.15 µs; via input voltage range, 8 µs at 24 V DC

— at "1" to "0", max.45 µs; via input voltage range

Digital outputs

Number of digital outputs4; for each channel/axis

Functionsconfigurable

Short-circuit protectionYes

Output voltage

Rated value (DC)24 V

for signal "1", min.UP - 0,3 V

Output current

for signal "1" rated value0.5 A; at 40 °C; 0.1 A at 60 °C

for signal "1" permissible range for 0 to 40 °C, min.5 mA

for signal "1" permissible range for 0 to 40 °C, max.0.6 A

for signal "1" permissible range for 40 to 60 °C, min.5 mA

for signal "1" permissible range for 40 to 60 °C, max.0.12 A

for signal "0" residual current, max.2 mA

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.25 Hz

Connectable encoders

Incremental encoder (symmetrical)Yes

Absolute encoder (SSI)Yes

Encoder signals, incremental encoder (symmetrical)

Input voltage5 V difference signal (phys. RS 422)

Input frequency, max.1 MHz; for 10 m cable length; 0.5 MHz for 35 m cable length

Encoder signals, absolute encoder (SSI)

Input signal5 V difference signal (phys. RS 422)

Clock frequency, max.1.25 Mbit/s at 10 cable length (2.5 Mbit/s available soon)

Cable length, shielded, max.250 m; At max. 156 kbit/s

Signal Input

TypeDrive interface step, signal input "READY 1"

Function"Power section ready" where Ui < 1 V, Ii = 2 mA

Setpoint signal

— Rated voltage range-10 to +10V

— Output current-3 to +3 mA

— Cable length, max.30 m

Output controller enable

— Switching voltage, max.50 V

— Switching current, max.1 A

— Switching capacity, max.30 V·A

Stepper drive

Differential output voltage, min.2 V; RL = 100 Ohm

Differential output voltage for signal "0", max.1.1 V; Io = 30 mA

Differential output voltage for signal "1", min.3.7 V; Io = -30 mA

Load resistance, min.55 Ω

Output current, max.60 mA

Pulse frequency200 kHz; 500 kHz available soon

Cable length, shielded, max.35 m; 35 m with symm. transmission; 10 m with asymm. transmission

Potential separation digital inputs

Potential separation digital inputsYes; Optocoupler

Potential separation digital outputs

Potential separation digital outputsYes; Optocoupler

Ambient temperature during operation

min.0 °C

max.55 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Connection method

required front connector1x 48-pin

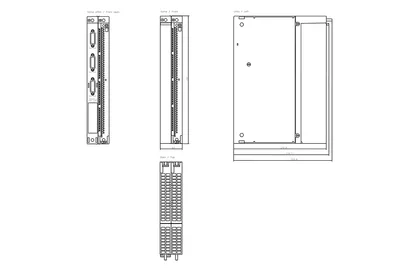

Dimensions

Width50 mm

Height290 mm

Depth210 mm

Weights

Weight, approx.1 620 g

Accessories 1

Genuine accessories that can be used with the Siemens 6ES7453-3AH00-0AE0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
