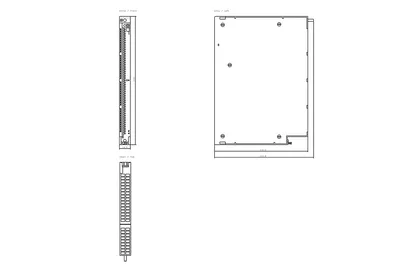

Siemens 6ES7422-1HH00-0AA0

SIMATIC S7-400, digital output SM 422, isolated 16 DO; 5..230 V AC, 5 A relay

SiemensMFR # 6ES7422-1HH00-0AA0SKU # CEY-8EF3B03869CE

Rated value (DC)60 V

permissible range, lower limit (DC)1 V

permissible range, upper limit (DC)60 V

Rated value (AC)230 V

permissible range, lower limit (AC)2 V

permissible range, upper limit (AC)264 V

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-400, digital output SM 422, isolated 16 DO; 5..230 V AC, 5 A relay

Siemens 6ES7422-1HH00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)60 V

permissible range, lower limit (DC)1 V

permissible range, upper limit (DC)60 V

Load voltage L1

Rated value (AC)230 V

permissible range, lower limit (AC)2 V

permissible range, upper limit (AC)264 V

Input current

from backplane bus 5 V DC, max.1 A

Power loss

Power loss, typ.4.5 W

Digital outputs

Number of digital outputs16; Relays

Short-circuit protectionNo

Controlling a digital inputYes; possible

Size of motor starters according to NEMA, max.Size 5 according to NEMA

Switching capacity of the outputs

on lamp load, max.60 W

Output current

for signal "1" rated value5 A

for signal "1" minimum load current11 mA

Parallel switching of two outputs

for upratingNo; Not possible

for redundant control of a loadYes; Possible (only outputs with the same load voltage)

Switching frequency

with resistive load, max.10 Hz

With inductive load (to IEC 60947-5-1, DC13/AC15), max.1 Hz

on lamp load, max.1 Hz

mechanical, max.20 Hz

all mounting positions

— up to 40 °C, max.10 A; 10 A with fan subassembly

— up to 60 °C, max.5 A; 10 A with fan subassembly

Relay outputs

Number of operating cycles, max.100 000; 100 000 (AC-15 / DC-13); 3 000 000 mechanical

Switching capacity of contacts

— with inductive load, max.5 A; 5 A (30 V DC), 5 A (230 V AC)

— with resistive load, max.5 A; 5 A (30 V DC), 5 A (230 V AC), 1.2 A (60 V DC), 0.2 A (125 V DC)

— Thermal continuous current, max.5 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionNo

Diagnostics indication LED

Status indicator digital output (green)Yes; per channel

Potential separation digital outputs

between the channelsYes

between the channels, in groups of2

between the channels and backplane busYes

Isolation

Isolation tested with1 500 V AC

Dimensions

Width25 mm

Height290 mm

Depth210 mm

Weights

Weight, approx.700 g

Accessories 1

Genuine accessories that can be used with the Siemens 6ES7422-1HH00-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
