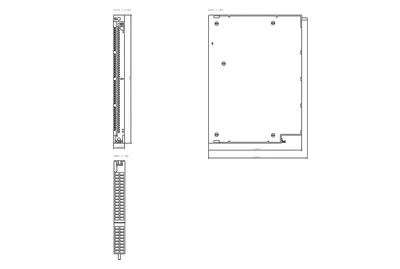

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7422-1BH11-0AA0

SIMATIC S7-400, digital output SM 422, isolated 16 DO; 24 V DC, 2 A

SiemensMFR # 6ES7422-1BH11-0AA0SKU # CEY-937FC780AD1A

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.160 mA

Power loss, typ.5 W

Number of digital outputs16
