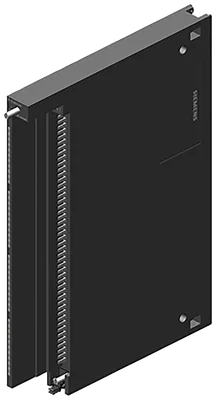

Siemens 6ES7421-1BL01-0AA0

SIMATIC S7-400, digital input SM 421, isolated 32 DI; 24 V DC

SiemensMFR # 6ES7421-1BL01-0AA0SKU # CEY-937FC77F630B

from backplane bus 5 V DC, max.20 mA

Power loss, typ.6 W

Number of digital inputs32

Type of input voltageDC

Rated value (DC)24 V

for signal "0"-30 V DC to +5 V DC

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-400, digital input SM 421, isolated 32 DI; 24 V DC

Siemens 6ES7421-1BL01-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Input current

from backplane bus 5 V DC, max.20 mA

Power loss

Power loss, typ.6 W

Digital inputs

Number of digital inputs32

Input characteristic according to IEC 61131Type 1

Number of simultaneously controllable inputs

Number of simultaneously controllable inputs32

Input voltage

Type of input voltageDC

Rated value (DC)24 V

for signal "0"-30 V DC to +5 V DC

for signal "1"13 V DC to 30 V DC

Input current

for signal "0", max. (permissible quiescent current)1.3 mA

for signal "1", typ.7 mA

for standard inputs

— at "0" to "1", min.1.2 ms

— at "0" to "1", max.4.8 ms

— at "1" to "0", min.1.2 ms

— at "1" to "0", max.4.8 ms

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Interrupts/diagnostics/status information

Diagnostics functionNo

Diagnostics indication LED

Status indicator digital input (green)Yes

Potential separation digital inputs

between the channelsNo

between the channels, in groups of32

between the channels and backplane busYes

Isolation

Isolation tested with500 V AC/707 V DC, type test

Dimensions

Width25 mm

Height290 mm

Depth210 mm

Weights

Weight, approx.500 g
