How can I get a price quote for Siemens 6ES7405-0DA02-0AA1?

You can request a fast quote for Siemens 6ES7405-0DA02-0AA1 from Yılsa Engineering. Reference part number CEY-8EF3B0386FDF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7405-0DA02-0AA1 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7405-0DA02-0AA1 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7405-0DA02-0AA1?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

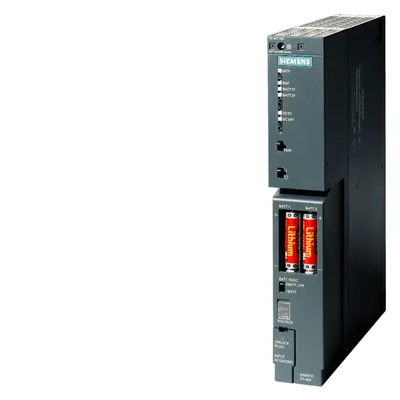

Siemens 6ES7405-0DA02-0AA1

SIMATIC PCS 7, PS 405 4A XTR S7-400 power supply wide range, 24/48/60 V DC; 5 V DC/4 A, for extended temp. range and with conformal coating

SiemensMFR # 6ES7405-0DA02-0AA1SKU # CEY-8EF3B0386FDF

24 V DCYes

48 V DCYes

60 V DCYes

Mains/voltage failure stored energy time20 ms

Rated value at 24 V DC2 A

Rated value at 48 V DC1 000 mA

Have questions?Chat on WhatsApp

About This Product

SIMATIC PCS 7, PS 405 4A XTR S7-400 power supply wide range, 24/48/60 V DC; 5 V DC/4 A, for extended temp. range and with conformal coating

Siemens 6ES7405-0DA02-0AA1

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

24 V DCYes

48 V DCYes

60 V DCYes

Mains buffering

Mains/voltage failure stored energy time20 ms

Mains buffering according to NAMUR recommendationYes

Input current

Rated value at 24 V DC2 A

Rated value at 48 V DC1 000 mA

Rated value at 60 V DC800 mA

Inrush current, max.18 A; Full width at half maximum 20 ms

Output voltage

Type of output voltageDC

5 V DCYes

24 V DCYes

Output current

for backplane bus (5 V DC), max.4 A; no base load required

for backplane bus (24 V DC), max.0.5 A; idling-proof

Short-circuit protectionYes

Power

Active power input, typ.48 W

Power loss

Power loss, typ.16 W

Backup battery

Backup battery (optional)Yes; 1x lithium AA; 3.6 V / 2.2 Ah

Slots

required slots1

Potential separation

primary/secondaryYes

Isolation

Overvoltage categoryII

Degree and class of protection

Equipment protection classI, with protective conductor

Standards, approvals, certificates

FM approvalYes; Ta: 0 °C to 70 °C T4

CCCYes

BISYes

Ambient temperature during operation

min.0 °C

max.70 °C

Connection method

Design of electrical connection3x 1.5 mm², solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm

Dimensions

Width25 mm

Height290 mm

Depth217 mm

Weights

Weight, approx.800 g

Accessories 1

Genuine accessories that can be used with the Siemens 6ES7405-0DA02-0AA1 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
