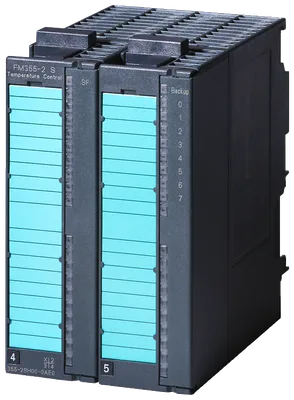

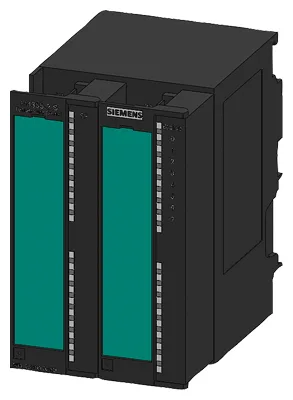

Siemens 6ES7355-2SH00-0AE0

***spare part*** SIMATIC S7-300, temperature Control Unit FM 355-2S, 4 channels, step and pulse, 4 AI+8 DI+8 DO incl. multi-language configuration package, manual and Getting Started (de, en, it) on CD-ROM

SiemensMFR # 6ES7355-2SH00-0AE0SKU # CEY-937FC77E6BC6

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.75 mA; typ. 50 mA

Power loss, typ.5.5 W

Power loss, max.6.9 W

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7355-2SH00-0AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.270 mA; typ. 220 mA

from backplane bus 5 V DC, max.75 mA; typ. 50 mA

Power loss

Power loss, typ.5.5 W

Power loss, max.6.9 W

Digital inputs

Number of digital inputs8

Input characteristic curve in accordance with IEC 61131, type 2Yes

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"13 to 30V

Input current

for signal "1", typ.7 mA

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Digital outputs

Number of digital outputs8

Short-circuit protectionYes; Electronic

Limitation of inductive shutdown voltage toL+ (-1.5 V)

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.5 W

Load resistance range

lower limit240 Ω

upper limit4 kΩ

Output voltage

for signal "1", min.L+ (-2.5 V)

Output current

for signal "1" rated value0.1 A

for signal "1" permissible range for 0 to 60 °C, min.5 mA

for signal "1" permissible range for 0 to 60 °C, max.150 mA

for signal "0" residual current, max.0.5 mA

Parallel switching of two outputs

for logic linksYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

on lamp load, max.100 Hz

all mounting positions

— up to 60 °C, max.400 mA

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Analog inputs

Number of analog inputs4

permissible input voltage for voltage input (destruction limit), max.20 V

permissible input current for current input (destruction limit), max.40 mA

Input ranges

VoltageYes

CurrentYes

ThermocoupleYes

Resistance thermometerYes

Input ranges (rated values), voltages

0 to +10 VYes

— Input resistance (0 to 10 V)100 kΩ

-1.75 V to +11.75 VYes

— Input resistance (-1.75 V to +11.75 V)100 kΩ

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)50 Ω

0 to 23.5 mAYes

— Input resistance (0 to 23.5 mA)50 Ω

-3.5 mA to +23.5 mAYes

— Input resistance (-3.5 mA to +23.5 mA)50 Ω

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)50 Ω

Input ranges (rated values), thermocouples

Type BYes

— Input resistance (Type B)10 MΩ

Type EYes

— Input resistance (Type E)10 MΩ

Type JYes

— Input resistance (type J)10 MΩ

Type KYes

— Input resistance (Type K)10 MΩ

Type RYes

— Input resistance (Type R)10 MΩ

Type SYes

— Input resistance (Type S)10 MΩ

Input ranges (rated values), resistance thermometer

Pt 100Yes

— Input resistance (Pt 100)10 MΩ

Temperature compensation

— internal temperature compensationYes

— external temperature compensation with Pt100Yes

Characteristic linearization

ParameterizableYes

— for thermocouplesType B, E, J, K, R, S

— for resistance thermometerPt100 (standard)

Cable length

shielded, max.200 m; 50 m at 80 mV and thermocouples

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.14 bit

Connection of signal encoders

for voltage measurementYes

for current measurement as 4-wire transducerYes

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.06 %; ±0.06 to ±0.7%

Current, relative to input range, (+/-)0.06 %; ±0.06 to ±0.7%

Resistance thermometer, relative to input range, (+/-)0.06 %; ±0.06 to ±0.7%

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.04 %; ±0.04 to ±0.5 %

Current, relative to input range, (+/-)0.04 %; ±0.04 to ±0.5 %

Resistance thermometer, relative to input range, (+/-)0.04 %; ±0.04 to ±0.5 %

Interrupts/diagnostics/status information

Substitute values connectableYes; Parameterizable

Control technology

Number of closed-loop controllers4

Potential separation controller

between the channelsNo

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V DC

Connection method

required front connector2x 20-pin

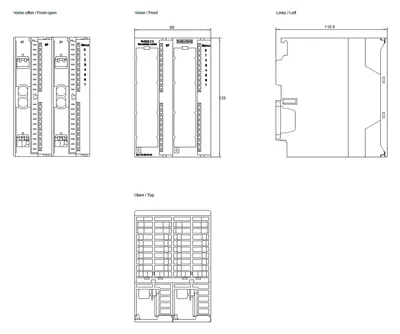

Dimensions

Width80 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.470 g
