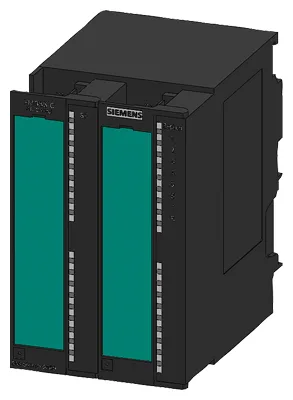

Siemens 6ES7355-0VH10-0AE0

***spare part*** SIMATIC S7-300, Control Unit FM 355 C, 4 channels, continuous, 4 AI+8 DI+4 AO incl. multi-language configuration package, manual and Getting Started (de, en, fr, it) on CD-ROM

SiemensMFR # 6ES7355-0VH10-0AE0SKU # CEY-8EF3B0387035

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.75 mA; typ. 50 mA

Power loss, typ.6.5 W

Power loss, max.7.8 W

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, Control Unit FM 355 C, 4 channels, continuous, 4 AI+8 DI+4 AO incl. multi-language configuration package, manual and Getting Started (de, en, fr, it) on CD-ROM

Siemens 6ES7355-0VH10-0AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.310 mA; Typ. 260 mA

from backplane bus 5 V DC, max.75 mA; typ. 50 mA

Power loss

Power loss, typ.6.5 W

Power loss, max.7.8 W

Digital inputs

Number of digital inputs8

Input characteristic curve in accordance with IEC 61131, type 2Yes

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"13 to 30V

Input current

for signal "1", typ.7 mA

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Analog inputs

Number of analog inputs4

permissible input voltage for voltage input (destruction limit), max.30 V

permissible input current for current input (destruction limit), max.40 mA

Input ranges

VoltageYes

CurrentYes

ThermocoupleYes

Resistance thermometerYes

Input ranges (rated values), voltages

0 to +10 VYes

— Input resistance (0 to 10 V)100 kΩ

-1.75 V to +11.75 VYes

— Input resistance (-1.75 V to +11.75 V)100 kΩ

-80 mV to +80 mVYes

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)50 Ω

0 to 23.5 mAYes

— Input resistance (0 to 23.5 mA)50 kΩ

-3.5 mA to +23.5 mAYes

— Input resistance (-3.5 mA to +23.5 mA)50 Ω

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)50 kΩ

Input ranges (rated values), thermocouples

type BYes

— Input resistance (Type B)10 MΩ

Type JYes

— Input resistance (type J)10 MΩ

Type KYes

— Input resistance (Type K)10 MΩ

Type RYes

— Input resistance (Type R)10 MΩ

Type SYes

— Input resistance (Type S)10 MΩ

Input ranges (rated values), resistance thermometer

Pt 100Yes

— Input resistance (Pt 100)10 MΩ

Temperature compensation

— internal temperature compensationYes

— external temperature compensation with Pt100Yes

Characteristic linearization

ParameterizableYes

— for thermocouplesType B, J, K, R, S

— for resistance thermometerPt100 (standard)

Cable length

shielded, max.200 m; 50 m at 80 mV and thermocouples

Analog outputs

Number of analog outputs4

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.25 mA

Current output, no-load voltage, max.18 V

Output ranges, voltage

0 to 10 VYes

-10 V to +10 VYes

Output ranges, current

0 to 20 mAYes

4 mA to 20 mAYes

Connection of actuators

for voltage output two-wire connectionYes

for current output two-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.1 kΩ

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.500 Ω

with current outputs, inductive load, max.1 mH

Cable length

shielded, max.200 m; 50 m at 80 mV and thermocouples

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.14 bit; 12 bit or 14 bit, parameterizable

Settling time

for resistive load0.1 ms

for capacitive load3.3 ms

for inductive load0.5 ms

Connection of signal encoders

for voltage measurementYes

for current measurement as 4-wire transducerYes

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.1.5 mA

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.6 %; ±0.6 to ±1%

Current, relative to input range, (+/-)0.6 %; ±0.6 to ±1%

Resistance thermometer, relative to input range, (+/-)0.6 %; ±0.6 to ±1%

Voltage, relative to output range, (+/-)0.5 %

Current, relative to output range, (+/-)0.6 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.4 %; 80 mV: ±0.6 %; 250 to 1 000 mV: ±0.4 %; 2.5 to 10 V: ±0.6 %; 3.2 to 20 mA: ±0.5 %

Current, relative to input range, (+/-)0.4 %; ±0.4 to ±0.6 %

Resistance thermometer, relative to input range, (+/-)0.4 %; ±0.4 to ±0.6 %

Voltage, relative to output range, (+/-)0.3 %

Current, relative to output range, (+/-)0.5 %

Interrupts/diagnostics/status information

Substitute values connectableYes; Parameterizable

Control technology

Number of closed-loop controllers4

Potential separation controller

between the channelsNo

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V DC

Connection method

required front connector2x 20-pin

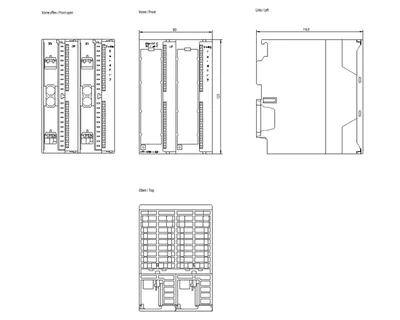

Dimensions

Width80 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.470 g
