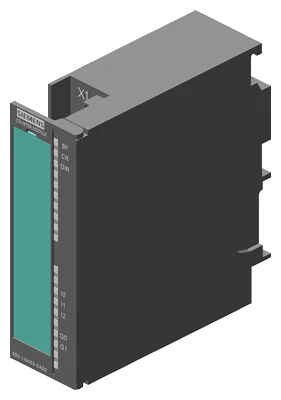

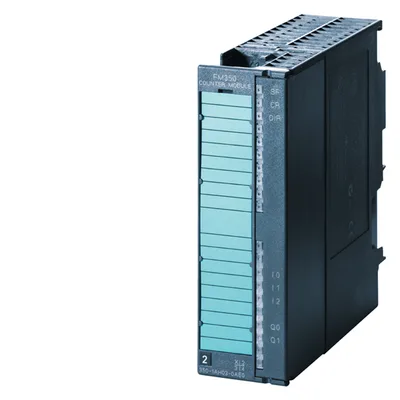

Siemens 6ES7350-1AH03-0AE0

***spare part*** SIMATIC S7-300, counter module FM 350-1 for S7-300, counter functions up to 500 kHz 1 channel for connection of 5 V and 24 V incremental encoders isochronous mode; measuring range types incl. configuration package on CD

SiemensMFR # 6ES7350-1AH03-0AE0SKU # CEY-937FC77F0AA7

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V; Dynamic 18.5 V

permissible range, upper limit (DC)28.8 V; dynamic 30.2 V

from backplane bus 5 V DC, max.160 mA

5 VYes; 5.2 V ±2 %

Output current, max.300 mA

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7350-1AH03-0AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Auxiliary voltage 1L+, load voltage 2L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V; Dynamic 18.5 V

permissible range, upper limit (DC)28.8 V; dynamic 30.2 V

Input current

from load voltage 1L+ (without load), max.40 mA

from backplane bus 5 V DC, max.160 mA

5 V encoder supply

5 VYes; 5.2 V ±2 %

Output current, max.300 mA

24 V encoder supply

24 VYes; 1L+ (-3 V)

Output current, max.400 mA

Power loss

Power loss, typ.4.5 W

Digital inputs

Number of digital inputs3

Functions1 for gate start, 1 for gate stop, 1 for setting the counter

Input voltage

for signal "0"-28.8 ... +5V

for signal "1"+11 to +28.8V

Input current

for signal "1", typ.9 mA

Digital outputs

Number of digital outputs2

Short-circuit protectionYes; Clocked electronically

Limitation of inductive shutdown voltage to2L+ (-39 V)

Output voltage

for signal "0", max.3 V

for signal "1", min.2L+ (-1,5 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range for 0 to 60 °C, min.5 mA

for signal "1" permissible range for 0 to 60 °C, max.0.6 A

Output delay with resistive load

"0" to "1", max.300 µs

Connectable encoders

Incremental encoder (symmetrical)Yes; With 2 pulse trains offset by 90°

Incremental encoder (asymmetrical)Yes

24 V initiatorYes

24 V directional elementYes; 1 pulse train, 1 direction level

Counter

Number of counter inputs1; 32 bit or ±31 bit

Counter input 5 V

TypeRS 422

terminating resistor220 Ω

Differential input voltage1,3 V

Counting frequency, max.500 kHz

Counter input 24 V

Input voltage for signal "0"-28.8 ... +5V

Input voltage for signal "1"+11 to +28.8V

Input current for signal "1", typ.9 mA

Counting frequency, max.200 kHz

Minimum pulse width2.5 µs

Potential separation digital inputs

between the channels and backplane busYes; Optocoupler

Potential separation digital outputs

between the channels and backplane busYes; Optocoupler

Potential separation counter

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V

Connection method

required front connector1x 20-pin

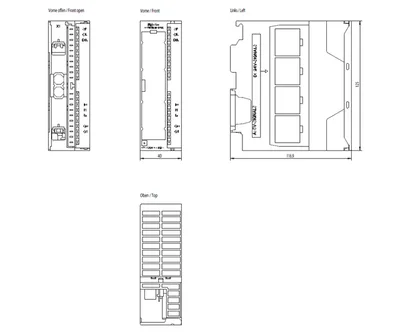

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.250 g
