How can I get a price quote for Siemens 6ES7341-1CH02-0AE0?

You can request a fast quote for Siemens 6ES7341-1CH02-0AE0 from Yılsa Engineering. Reference part number CEY-937FC7807547. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7341-1CH02-0AE0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7341-1CH02-0AE0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7341-1CH02-0AE0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

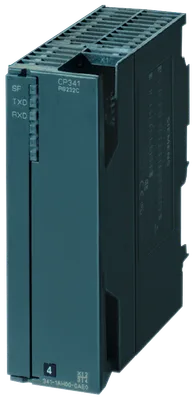

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7341-1CH02-0AE0

***spare part*** SIMATIC S7-300, CP 341 communications processor with RS-422/485 interface incl. configuration package on CD

SiemensMFR # 6ES7341-1CH02-0AE0SKU # CEY-937FC7807547

24 V DCYes

from supply voltage L+, max.100 mA

from backplane bus 5 V DC, max.70 mA

Power loss, typ.1.6 W

Power loss, max.2.4 W

Interfaces/bus typeRS 422 / 485 (X.27)

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, CP 341 communications processor with RS-422/485 interface incl. configuration package on CD

Siemens 6ES7341-1CH02-0AE0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

24 V DCYes

Input current

from supply voltage L+, max.100 mA

from backplane bus 5 V DC, max.70 mA

Power loss

Power loss, typ.1.6 W

Power loss, max.2.4 W

Interfaces

Interfaces/bus typeRS 422 / 485 (X.27)

Number of interfaces1; Isolated

Transmission rate, min.0.3 kbit/s

Transmission rate, max.115.2 kbit/s

Point-to-point connection

Cable length, max.1 200 m

supported printersSerial printers

Connector type15-pin sub D socket

Integrated protocol driver

— 3964 (R)Yes; not with RS 485

— ASCIIYes

— RK 512Yes; not with RS 485

Telegram length, max.

— 3964 (R)4 096 byte

— ASCII4 096 byte

— RK 5124 096 byte

Transmission rate, RS 422/485

— with 3964 (R) protocol, max.115.2 kbit/s

— with ASCII protocol, max.115.2 kbit/s

— with printer driver, max.115.2 kbit/s

— with RK 512 protocol, max.115.2 kbit/s

Diagnostics indication LED

Receive RxDYes

Transmit TxDYes

Group error SF (red)Yes

Ambient temperature during operation

min.0 °C

max.60 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Block

FB length in RAM, max.6 100 byte; Data communication, sending and receiving

Connection method

Design of electrical connection for supply voltage3 screw-type terminals: L+, M, GND

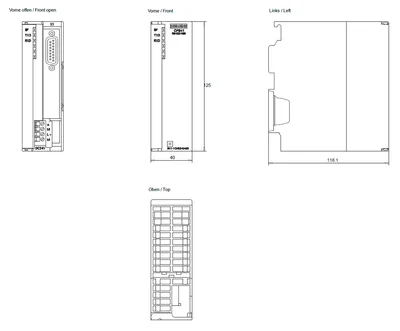

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.300 g

Accessories 7

Genuine accessories that can be used with the Siemens 6ES7341-1CH02-0AE0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7902-3AB00-0AA0	Aksesuar · Cable
6ES7902-3AC00-0AA0	Aksesuar · Cable
6ES7902-3AG00-0AA0	Aksesuar · Cable
6ES7870-1AA01-0YA0	Aksesuar · Software
6ES7870-1AA01-0YA1	Aksesuar · Software
6ES7870-1AB01-0YA0	Aksesuar · Software
6ES7870-1AB01-0YA1	Aksesuar · Software
