How can I get a price quote for Siemens 6ES7338-4BC01-0AB0?

You can request a fast quote for Siemens 6ES7338-4BC01-0AB0 from Yılsa Engineering. Reference part number CEY-937FC780ADCF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7338-4BC01-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7338-4BC01-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7338-4BC01-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

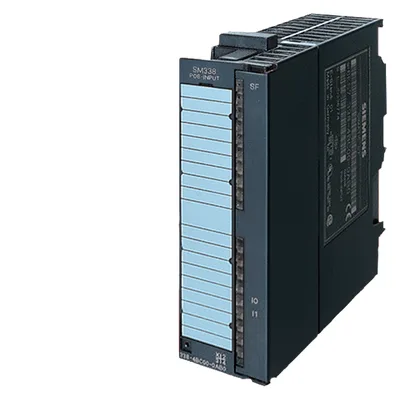

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

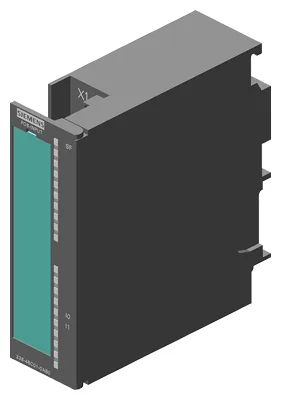

Siemens 6ES7338-4BC01-0AB0

***spare part*** SIMATIC S7-300, signal module for 3 SSI encoders for reading in the position value with 2 FREEZE inputs, 1x 20-pole supports isochronous mode

SiemensMFR # 6ES7338-4BC01-0AB0SKU # CEY-937FC780ADCF

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.160 mA

24 VYes; L+ (-0.8 V)

Output current, max.900 mA

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, signal module for 3 SSI encoders for reading in the position value with 2 FREEZE inputs, 1x 20-pole supports isochronous mode

Siemens 6ES7338-4BC01-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.100 mA

from backplane bus 5 V DC, max.160 mA

24 V encoder supply

24 VYes; L+ (-0.8 V)

Output current, max.900 mA

Power loss

Power loss, typ.3 W

Input voltage

for signal "0"-3 to +5V

for signal "1"11 to 30.2 V

Input current

for signal "0", max. (permissible quiescent current)2 mA

for signal "1", typ.9 mA

for standard inputs

— at "0" to "1", min.300 µs

Cable length

shielded, max.600 m

Encoder

Number of connectable encoders, max.3

Connectable encoders

Absolute encoder (SSI)Yes

2-wire sensorYes

Encoder signals, absolute encoder (SSI)

Cable length, shielded, max.320 m; 320 m at 125 kHz; 160 m at 250 kHz; 60 m at 500 kHz; 20 m at 1 MHz

Alarms

Diagnostic alarmYes

Connection method

required front connector20-pin

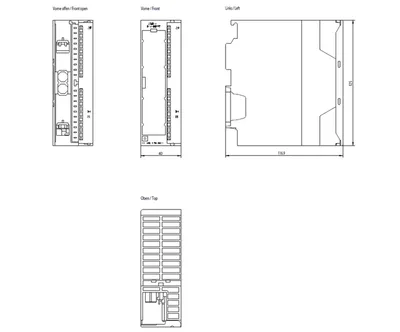

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.235 g

Accessories 3

Genuine accessories that can be used with the Siemens 6ES7338-4BC01-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
