How can I get a price quote for Siemens 6ES7334-0CE01-0AA0?

You can request a fast quote for Siemens 6ES7334-0CE01-0AA0 from Yılsa Engineering. Reference part number CEY-937FC77F02F5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7334-0CE01-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7334-0CE01-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7334-0CE01-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

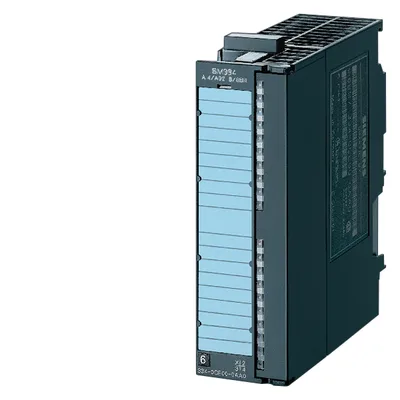

Photo may not represent actual item. Refer to name and product specs for all details.

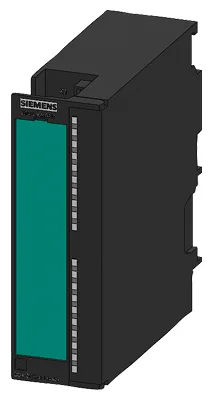

Siemens 6ES7334-0CE01-0AA0

***spare part*** SIMATIC S7-300, analog module SM 334, non-isolated 4 AI/2 AO, 1x 20-pole, removing and inserting with active backplane bus possible

SiemensMFR # 6ES7334-0CE01-0AA0SKU # CEY-937FC77F02F5

Rated value (DC)24 V

from backplane bus 5 V DC, max.55 mA

Power loss, typ.3 W

Number of analog inputs4

For voltage measurement4

Cycle time (all channels) max.5 ms

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, analog module SM 334, non-isolated 4 AI/2 AO, 1x 20-pole, removing and inserting with active backplane bus possible

Siemens 6ES7334-0CE01-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

Input current

from supply and load voltage L+ (without load), max.110 mA

from backplane bus 5 V DC, max.55 mA

Power loss

Power loss, typ.3 W

Analog inputs

Number of analog inputs4

For voltage measurement4

permissible input voltage for voltage input (destruction limit), max.20 V

permissible input current for current input (destruction limit), max.40 mA

Cycle time (all channels) max.5 ms

Input ranges

VoltageYes

CurrentYes

ThermocoupleNo

Resistance thermometerNo

ResistanceNo

Input ranges (rated values), voltages

0 to +10 VYes

— Input resistance (0 to 10 V)100 kΩ

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)50 Ω

Cable length

shielded, max.200 m

Analog outputs

Number of analog outputs2

Voltage output, short-circuit protectionYes

Voltage output, short-circuit current, max.11 mA

Current output, no-load voltage, max.15 V

Output ranges, voltage

0 to 10 VYes

Output ranges, current

0 to 20 mAYes

Load impedance (in rated range of output)

with voltage outputs, min.5 kΩ

with voltage outputs, capacitive load, max.1 µF

with current outputs, max.300 Ω

with current outputs, inductive load, max.1 mH

Cable length

shielded, max.200 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.8 bit

Integration time, parameterizableNo

Resolution with overrange (bit including sign), max.8 bit

Conversion time (per channel)500 µs

Settling time

for resistive load0.3 ms

for capacitive load3 ms

for inductive load0.3 ms

Connection of signal encoders

for voltage measurementYes

for current measurement as 2-wire transducerNo

for current measurement as 4-wire transducerYes

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.9 %

Current, relative to input range, (+/-)0.8 %

Voltage, relative to output range, (+/-)0.6 %

Current, relative to output range, (+/-)1 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.7 %

Current, relative to input range, (+/-)0.6 %

Voltage, relative to output range, (+/-)0.5 %

Current, relative to output range, (+/-)0.5 %

Interrupts/diagnostics/status information

AlarmsNo

Diagnostics functionNo

Potential separation analog inputs

between the channels and backplane busNo

Potential separation analog outputs

between the channelsNo

between the channels and backplane busNo

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with500 V DC

Connection method

required front connector20-pin

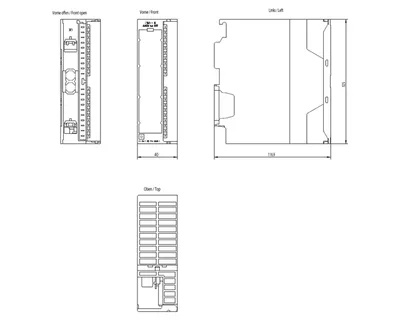

Dimensions

Width40 mm

Height125 mm

Depth117 mm

Weights

Weight, approx.285 g
