How can I get a price quote for Siemens 6ES7331-7TF01-0AB0?

You can request a fast quote for Siemens 6ES7331-7TF01-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77F065A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7331-7TF01-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7331-7TF01-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7331-7TF01-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

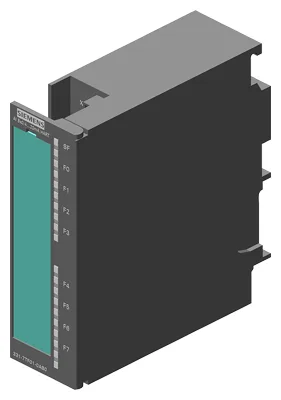

Siemens 6ES7331-7TF01-0AB0

********** spare part ********* SIMATIC DP, HART analog input SM 331, 8 AI, 0/4 - 20 mA HART for ET200M with IM153-2, 1 x 20-pole, functions: firmware update, HART auxiliary variables, redundancy, local diagnostic buffer with time stamping,

SiemensMFR # 6ES7331-7TF01-0AB0SKU # CEY-937FC77F065A

Isochronous modeNo

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.120 mA

presentYes

Rated value (DC)24 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7331-7TF01-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product function

Isochronous modeNo

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.20 mA

from backplane bus 5 V DC, max.120 mA

Power supply to the transmitters

presentYes

Rated value (DC)24 V

short-circuit proofYes

Supply current, max.60 mA

Power loss

Power loss, typ.1.5 W

Analog inputs

Number of analog inputs8

permissible input current for current input (destruction limit), max.40 mA

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)140 Ω

— Input resistance (4 mA to 20 mA)140 Ω

Cable length

shielded, max.800 m

Analog value generation for the inputs

Measurement principleSigma Delta

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit

Integration time, parameterizableYes

Integration time (ms)20 ms at 50 Hz; 16.6 ms at 60 Hz; 100 ms at 100 Hz

Basic conversion time, including integration time (ms)55 ms @ 60 Hz, 65 ms @ 50 Hz, 305 ms @ 100 Hz

Interference voltage suppression for interference frequency f1 in Hz10 / 50 / 60 Hz

Smoothing of measured values

parameterizableYes

Step: NoneYes

Step: lowYes

Step: MediumYes

Step: HighYes

Connection of signal encoders

for current measurement as 2-wire transducerYes

for current measurement as 4-wire transducerYes

Operational error limit in overall temperature range

Current, relative to input range, (+/-)0.15 %

Basic error limit (operational limit at 25 °C)

Current, relative to input range, (+/-)0.1 %

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Limit value alarmYes

Diagnostics indication LED

Group error SF (red)Yes

Channel fault indicator F (red)Yes

Potential separation analog inputs

between the channelsNo

between the channels and backplane busYes

Isolation

Isolation tested with500 V DC

Degree and class of protection

IP degree of protectionIP20

Connection method

required front connector20-pin

Dimensions

Width40 mm

Height125 mm

Depth117 mm

Weights

Weight, approx.205 g

Accessories 2

Genuine accessories that can be used with the Siemens 6ES7331-7TF01-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
