How can I get a price quote for Siemens 6ES7331-7PF01-0AB0?

You can request a fast quote for Siemens 6ES7331-7PF01-0AB0 from Yılsa Engineering. Reference part number CEY-937FC7804646. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7331-7PF01-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7331-7PF01-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7331-7PF01-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

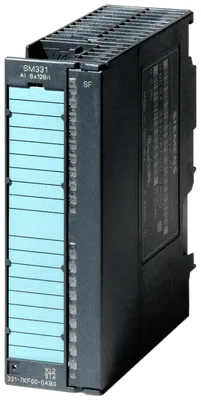

Photo may not represent actual item. Refer to name and product specs for all details.

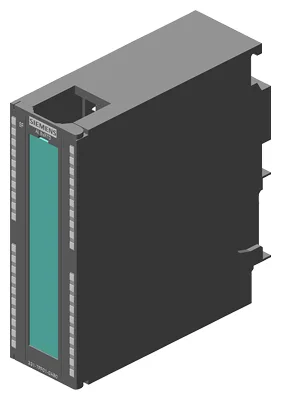

Siemens 6ES7331-7PF01-0AB0

***spare part*** SIMATIC S7-300, analog input SM 331, isolated, 2/3/4-wire, 8 AI, resistor, Pt100/200/1000 NI100/120/200/500/1000, CU10, characteristic curves according to GOST 16 (internal 24) bit, 50 ms, 1x 40-pole

SiemensMFR # 6ES7331-7PF01-0AB0SKU # CEY-937FC7804646

Isochronous modeNo

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.100 mA

Power loss, typ.4.6 W

Number of analog inputs8

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7331-7PF01-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product function

Isochronous modeNo

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.240 mA

from backplane bus 5 V DC, max.100 mA

Power loss

Power loss, typ.4.6 W

Analog inputs

Number of analog inputs8

For resistance measurement8

permissible input voltage for voltage input (destruction limit), max.75 V; 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20)

Input ranges

VoltageNo

CurrentNo

ThermocoupleNo

Resistance thermometerYes

ResistanceYes

Input ranges (rated values), voltages

0 to +10 VNo

1 V to 5 VNo

1 V to 10 VNo

-1 V to +1 VNo

-10 V to +10 VNo

-2.5 V to +2.5 VNo

-250 mV to +250 mVNo

-5 V to +5 VNo

-50 mV to +50 mVNo

-500 mV to +500 mVNo

-80 mV to +80 mVNo

Input ranges (rated values), currents

0 to 20 mANo

-10 mA to +10 mANo

-20 mA to +20 mANo

-3.2 mA to +3.2 mANo

4 mA to 20 mANo

Input ranges (rated values), thermocouples

Type BNo

Type CNo

Type ENo

Type JNo

Type KNo

Type LNo

Type NNo

Type RNo

Type SNo

Type TNo

Type UNo

Type TXK/TXK(L) to GOSTNo

Input ranges (rated values), resistance thermometer

Cu 10Yes

Ni 100Yes

Ni 1000Yes

LG-Ni 1000Yes

Ni 120Yes

Ni 200Yes

Ni 500Yes

Pt 100Yes

Pt 1000Yes

Pt 200Yes

Pt 500Yes

Input ranges (rated values), resistors

0 to 150 ohmsYes

0 to 300 ohmsYes

0 to 600 ohmsYes

Characteristic linearization

ParameterizableYes

— for resistance thermometerPt100, Pt200, Pt500, Pt1000, Ni100, Ni120, Ni200, Ni500, Ni1000, Cu10; (standard/climate)

Cable length

shielded, max.200 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit; Two's complement

Integration time, parameterizableYes

Basic conversion time (ms)up to 4 channels: 10 ms per module, over 5 channels: 190 ms per module, 8 channels: 80 ms

Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 Hz

Connection of signal encoders

for resistance measurement with two-wire connectionYes; without resistance correction

for resistance measurement with three-wire connectionYes

for resistance measurement with four-wire connectionYes

Operational error limit in overall temperature range

Resistance, relative to input range, (+/-)0.1 %

Resistance thermometer, relative to input range, (+/-)±1 K

Basic error limit (operational limit at 25 °C)

Resistance, relative to input range, (+/-)0.05 %

Resistance thermometer, relative to input range, (+/-)±0.5 K

Interrupts/diagnostics/status information

Diagnostics functionYes; Parameterizable

Alarms

Diagnostic alarmYes; Parameterizable per group

Limit value alarmYes; Parameterizable

Hardware interruptYes; Parameterizable, channels 0 to 7

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Group error SF (red)Yes

Potential separation analog inputs

between the channelsYes

between the channels, in groups of2

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with500 V DC

Connection method

required front connector40-pin

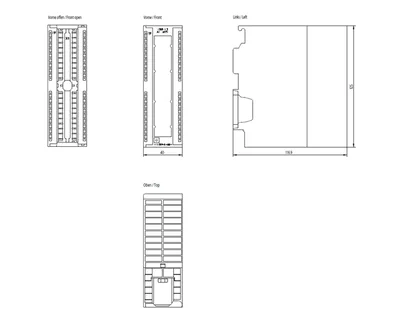

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.272 g
