How can I get a price quote for Siemens 6ES7331-7PE10-0AB0?

You can request a fast quote for Siemens 6ES7331-7PE10-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77FFDD5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7331-7PE10-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7331-7PE10-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7331-7PE10-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

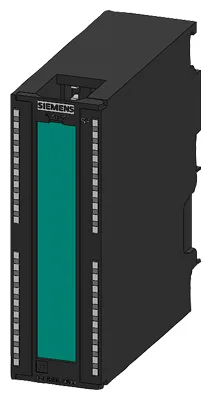

Siemens 6ES7331-7PE10-0AB0

***spare part*** SIMATIC S7-300, analog input SM 331, single channel isolated 250 V AC, 6 AI thermocouples type B, E, J, K, L, N, R, S, T voltage: +/-25 MV to +/-1 V 16 bit, 50 ms, 1x 40-pole

SiemensMFR # 6ES7331-7PE10-0AB0SKU # CEY-937FC77FFDD5

Isochronous modeNo

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.100 mA

Power loss, typ.2.2 W

Number of analog inputs6

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, analog input SM 331, single channel isolated 250 V AC, 6 AI thermocouples type B, E, J, K, L, N, R, S, T voltage: +/-25 MV to +/-1 V 16 bit, 50 ms, 1x 40-pole

Siemens 6ES7331-7PE10-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product function

Isochronous modeNo

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.150 mA

from backplane bus 5 V DC, max.100 mA

Power loss

Power loss, typ.2.2 W

Analog inputs

Number of analog inputs6

permissible input voltage for voltage input (destruction limit), max.35 V; 35 V continuous, 75 V for max. 1 s (mark to space ratio 1:20)

Constant measurement current for resistance-type transmitter, typ.0.7 mA

Input ranges

VoltageYes

CurrentNo

ThermocoupleYes

Resistance thermometerNo

ResistanceNo

Input ranges (rated values), voltages

0 to +10 VNo

1 V to 5 VNo

1 V to 10 VNo

-1 V to +1 VYes

— Input resistance (-1 V to +1 V)10 MΩ

-10 V to +10 VNo

-2.5 V to +2.5 VNo

-250 mV to +250 mVYes

— Input resistance (-250 mV to +250 mV)10 MΩ

-5 V to +5 VNo

-50 mV to +50 mVYes

— Input resistance (-50 mV to +50 mV)10 MΩ

-500 mV to +500 mVYes

— Input resistance (-500 mV to +500 mV)10 MΩ

-80 mV to +80 mVYes

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), currents

0 to 20 mANo

-10 mA to +10 mANo

-20 mA to +20 mANo

-3.2 mA to +3.2 mANo

4 mA to 20 mANo

Input ranges (rated values), thermocouples

Type BYes

— Input resistance (Type B)10 MΩ

Type CYes

— Input resistance (Type C)10 MΩ

Type EYes

— Input resistance (Type E)10 MΩ

Type JYes

— Input resistance (type J)10 MΩ

Type KYes

— Input resistance (Type K)10 MΩ

Type LYes

— Input resistance (Type L)10 MΩ

Type NYes

— Input resistance (Type N)10 MΩ

Type RYes

— Input resistance (Type R)10 MΩ

Type SYes

— Input resistance (Type S)10 MΩ

Type TYes

— Input resistance (Type T)10 MΩ

Type UYes

— Input resistance (Type U)10 MΩ

Type TXK/TXK(L) to GOSTYes

— Input resistance (Type TXK/TXK(L) to GOST)10 MΩ

Input ranges (rated values), resistance thermometer

Cu 10No

Ni 100No

Ni 1000No

LG-Ni 1000No

Ni 120No

Ni 200No

Ni 500No

Pt 100No

Pt 1000No

Pt 200No

Pt 500No

Input ranges (rated values), resistors

0 to 150 ohmsNo

0 to 300 ohmsNo

0 to 600 ohmsNo

0 to 6000 ohmsNo

Temperature compensation

— ParameterizableYes

— internal temperature compensationYes

— external temperature compensation with Pt100Yes

— external temperature compensation with compensations socketYes

— for definable comparison point temperatureYes

Characteristic linearization

ParameterizableYes

— for thermocouplesType B, E, J, K, L, N, R, S. T, U, C, TXK, XK(L)

— for resistance thermometerNo

Cable length

shielded, max.200 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit; Two's complement

Integration time, parameterizableYes

Basic conversion time (ms)30 / 50 / 60 / 300 ms

Integration time (ms)10/ 16.67/ 20/ 100 ms

Interference voltage suppression for interference frequency f1 in Hz10 / 50 / 60 / 400 Hz

Connection of signal encoders

for voltage measurementYes

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)Operating error at 0 ... 60 °C: ±0.12% @ ±25 mV, ±0.08% @ ±50 mV, ±0.6% @ ±80 mV, ±0.05% @ ±250 mV, ±0.05% @ 500 mV, ±0.05% @ ±1 V

Thermocouple, relative to input range, (+/-)See manual for details

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)See manual for details

Thermocouple, relative to input range, (+/-)See manual for details

Interrupts/diagnostics/status information

Diagnostics functionYes; Parameterizable

Alarms

Diagnostic alarmYes; channel by channel

Limit value alarmYes; Parameterizable

Hardware interruptYes; Parameterizable

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Group error SF (red)Yes

Potential separation analog inputs

between the channelsYes

between the channels, in groups of1

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with2 500 V DC

Connection method

required front connector40-pin

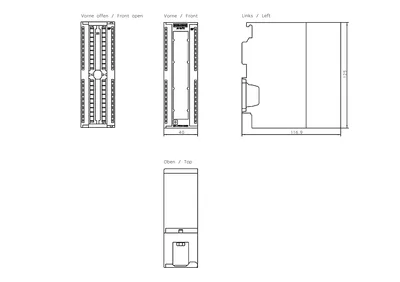

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.272 g
