How can I get a price quote for Siemens 6ES7331-7NF00-0AB0?

You can request a fast quote for Siemens 6ES7331-7NF00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77F5ACA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7331-7NF00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7331-7NF00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7331-7NF00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

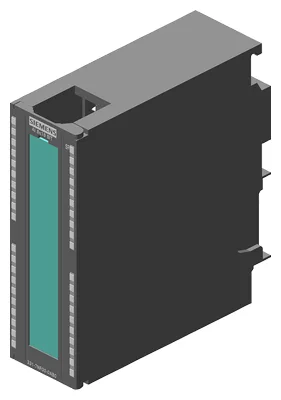

Siemens 6ES7331-7NF00-0AB0

***spare part*** SIMATIC S7-300, analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit (55 ms), single-point grounding (50 V COM.), 1x 40-pole

SiemensMFR # 6ES7331-7NF00-0AB0SKU # CEY-937FC77F5ACA

Isochronous modeNo

from backplane bus 5 V DC, max.130 mA

Power loss, typ.0.6 W

Number of analog inputs8

VoltageYes

CurrentYes

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, analog input SM 331, isolated, 8 AI; +/-5/10V, 1-5 V, +/-20 mA, 0/4 to 20 mA, 16 bit (55 ms), single-point grounding (50 V COM.), 1x 40-pole

Siemens 6ES7331-7NF00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product function

Isochronous modeNo

Input current

from backplane bus 5 V DC, max.130 mA

Power loss

Power loss, typ.0.6 W

Analog inputs

Number of analog inputs8

permissible input voltage for voltage input (destruction limit), max.50 V; Permanent

permissible input current for current input (destruction limit), max.32 mA

Input ranges

VoltageYes

CurrentYes

ThermocoupleNo

Resistance thermometerNo

ResistanceNo

Input ranges (rated values), voltages

0 to +10 VNo

1 V to 5 VYes

— Input resistance (1 V to 5 V)2 MΩ

1 V to 10 VNo

-1 V to +1 VNo

-10 V to +10 VYes

— Input resistance (-10 V to +10 V)2 MΩ

-2.5 V to +2.5 VNo

-250 mV to +250 mVNo

-5 V to +5 VYes

— Input resistance (-5 V to +5 V)2 MΩ

-50 mV to +50 mVNo

-500 mV to +500 mVNo

-80 mV to +80 mVNo

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)250 Ω

-10 mA to +10 mANo

-20 mA to +20 mAYes

— Input resistance (-20 mA to +20 mA)250 Ω

-3.2 mA to +3.2 mANo

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)250 Ω

Input ranges (rated values), thermocouples

Type BNo

Type CNo

Type ENo

Type JNo

Type KNo

Type LNo

Type NNo

Type RNo

Type SNo

Type TNo

Type UNo

Type TXK/TXK(L) to GOSTNo

Input ranges (rated values), resistance thermometer

Cu 10No

Ni 100No

Ni 1000No

LG-Ni 1000No

Ni 120No

Ni 200No

Ni 500No

Pt 100No

Pt 1000No

Pt 200No

Pt 500No

Input ranges (rated values), resistors

0 to 150 ohmsNo

0 to 300 ohmsNo

0 to 600 ohmsNo

0 to 6000 ohmsNo

Cable length

shielded, max.200 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.16 bit; Unipolar: 15/15/15/15 bit; bipolar: 15 bit + sign/15 bit + sign/15 bit + sign/15 bit + sign

Integration time, parameterizableYes; 10/ 16.67/ 20/ 100 ms

Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 / 10 Hz

Connection of signal encoders

for voltage measurementYes

for current measurement as 2-wire transducerYes; with external transmitter; possible with separate supply for transmitter

for current measurement as 4-wire transducerYes

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.1 %; At Ucm = 0 V or ±0.7 % at Ucm = 50 V

Current, relative to input range, (+/-)0.3 %; At Ucm = 0 V or ±0.9 % at Ucm = 50 V

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.05 %

Current, relative to input range, (+/-)0.05 %

Interrupts/diagnostics/status information

Diagnostics functionYes; Parameterizable

Alarms

Diagnostic alarmYes; Parameterizable

Limit value alarmYes; Parameterizable, channels 0 and 2

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Group error SF (red)Yes

Potential separation analog inputs

between the channelsNo

between the channels, in groups of2

between the channels and backplane busYes

Isolation

Isolation tested with500 V DC

Connection method

required front connector40-pin

Dimensions

Width40 mm

Height125 mm

Depth117 mm

Weights

Weight, approx.272 g

Accessories 2

Genuine accessories that can be used with the Siemens 6ES7331-7NF00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
