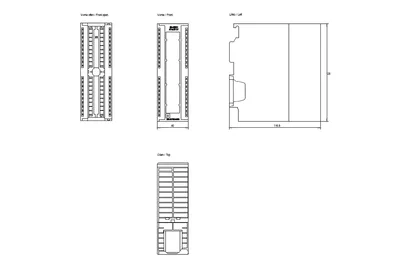

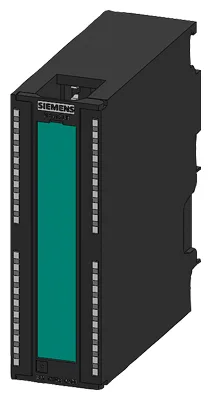

Siemens 6ES7331-1KF02-0AB0

***spare part*** SIMATIC S7-300, analog input SM 331, isolated 8 AI, resolution 13 bit U/I/resistance/Pt100, NI100, NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole

SiemensMFR # 6ES7331-1KF02-0AB0SKU # CEY-937FC77FB5A5

Isochronous modeNo

from backplane bus 5 V DC, max.90 mA

Power loss, typ.0.4 W

Number of analog inputs8

For resistance measurement8

VoltageYes

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, analog input SM 331, isolated 8 AI, resolution 13 bit U/I/resistance/Pt100, NI100, NI1000, LG-NI1000, PTC/KTY, 66 ms conversion time; 1x 40-pole

Siemens 6ES7331-1KF02-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Product function

Isochronous modeNo

Input current

from backplane bus 5 V DC, max.90 mA

Power loss

Power loss, typ.0.4 W

Analog inputs

Number of analog inputs8

For resistance measurement8

permissible input voltage for voltage input (destruction limit), max.30 V; 12 V continuous, 30 V for max. 1 s

permissible input current for current input (destruction limit), max.40 mA

Input ranges

VoltageYes

CurrentYes

ThermocoupleNo

Resistance thermometerYes

ResistanceYes

Input ranges (rated values), voltages

0 to +10 VYes

— Input resistance (0 to 10 V)100 kΩ

1 V to 5 VYes

— Input resistance (1 V to 5 V)100 kΩ

1 V to 10 VNo

-1 V to +1 VYes

— Input resistance (-1 V to +1 V)100 kΩ

-10 V to +10 VYes

— Input resistance (-10 V to +10 V)100 kΩ

-2.5 V to +2.5 VNo

-250 mV to +250 mVNo

-5 V to +5 VYes

— Input resistance (-5 V to +5 V)100 kΩ

-50 mV to +50 mVYes

— Input resistance (-50 mV to +50 mV)100 kΩ

-500 mV to +500 mVYes

— Input resistance (-500 mV to +500 mV)100 kΩ

-80 mV to +80 mVNo

Input ranges (rated values), currents

0 to 20 mAYes

— Input resistance (0 to 20 mA)100 Ω

-10 mA to +10 mANo

-20 mA to +20 mAYes

— Input resistance (-20 mA to +20 mA)100 Ω

-3.2 mA to +3.2 mANo

4 mA to 20 mAYes

— Input resistance (4 mA to 20 mA)100 Ω

Input ranges (rated values), thermocouples

Type BNo

Type CNo

Type ENo

Type JNo

Type KNo

Type LNo

Type NNo

Type RNo

Type SNo

Type TNo

Type UNo

Type TXK/TXK(L) to GOSTNo

Input ranges (rated values), resistance thermometer

Cu 10No

Ni 100Yes; Standard/climate

— Input resistance (Ni 100)100 MΩ

Ni 1000Yes

— Input resistance (Ni 1000)100 MΩ

LG-Ni 1000Yes; Standard/climate

— Input resistance (LG-Ni 1000)100 MΩ

Ni 120No

Ni 200No

Ni 500No

Pt 100Yes; Standard/climate

— Input resistance (Pt 100)100 MΩ

Pt 1000No

Pt 200No

Pt 500No

Input ranges (rated values), resistors

0 to 150 ohmsNo

0 to 300 ohmsNo

0 to 600 ohmsYes

— Input resistance (0 to 600 ohms)100 MΩ

0 to 6000 ohmsYes

— Input resistance (0 to 6000 ohms)100 MΩ

Temperature compensation

— ParameterizableNo

— internal temperature compensationNo

— external temperature compensation with compensations socketNo

Characteristic linearization

ParameterizableYes

— for thermocouplesNo

— for resistance thermometeryes; Pt100 standard/air con.; Ni100 standard/air con.; Ni1000 standard/air con.; LG-Ni1000 standard/air con.

Cable length

shielded, max.200 m; max. 50 m at 50 mV

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.13 bit

Integration time, parameterizableYes; 60 / 50 ms

Basic conversion time (ms)66 / 55 ms

Interference voltage suppression for interference frequency f1 in Hz50 / 60 Hz

Connection of signal encoders

for voltage measurementYes

for current measurement as 2-wire transducerYes; with external supply

for current measurement as 4-wire transducerYes

for resistance measurement with two-wire connectionYes

for resistance measurement with three-wire connectionYes

for resistance measurement with four-wire connectionYes

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.6 %; ±0.6 % (±5 V, 10 V, 1 to 5 V, 0 to 10 V); ±0.5 % (±50 mV, 500 mV, 1 V)

Current, relative to input range, (+/-)0.5 %; ±20 mA, 0 to 20 mA, 4 to 20 mA

Resistance, relative to input range, (+/-)0.5 %; 0 to 6 kohms, 0 to 600 kohms

Resistance thermometer, relative to input range, (+/-)1 Kelvin (Pt100, Ni100, climatic; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic); 1.2 Kelvin (Pt100, Ni100, standard)

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.4 %; 0.4% (±5 V, 10 V, 1 to 5 V, 0 to 10 V); 0.3% (±50 mV, 500 mV, 1 V)

Current, relative to input range, (+/-)0.3 %; ±20 mA, 0 to 20 mA, 4 to 20 mA

Resistance, relative to input range, (+/-)0.3 %; 0 to 6 kohms, 0 to 600 kohms

Resistance thermometer, relative to input range, (+/-)1 Kelvin (Pt100, Ni100, standard); 0.8 Kelvin (Pt100, Ni100, climatic; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic)

Interrupts/diagnostics/status information

Diagnostics functionNo

Alarms

Diagnostic alarmNo

Limit value alarmNo

Diagnoses

Diagnostic information readableNo

Diagnostics indication LED

Group error SF (red)No

Potential separation analog inputs

between the channelsNo

between the channels and backplane busYes
