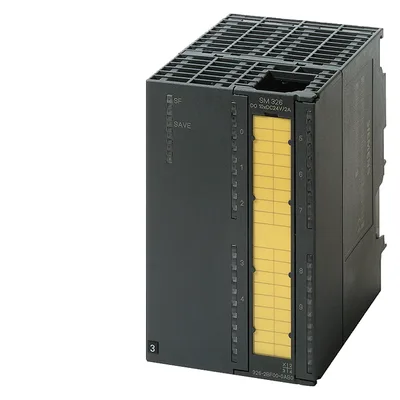

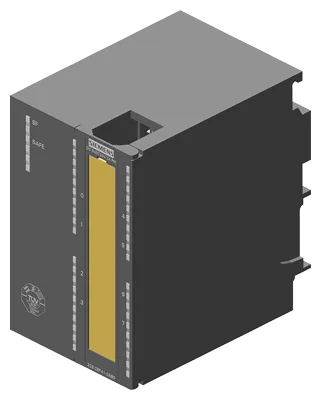

Siemens 6ES7326-2BF41-0AB0

***spare part*** SIMATIC S7, digital output SM 326, F-DO 8x24 V DC/2 A PM fail-safe digital output sinking-sourcing, up to category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 40-pole

SiemensMFR # 6ES7326-2BF41-0AB0SKU # CEY-937FC77E44CC

Rated value (DC)24 V; 1L+

Reverse polarity protectionYes

Rated value (DC)24 V; 2L+, 3L+

Reverse polarity protectionNo

from supply voltage 1L+, max.75 mA

from backplane bus 5 V DC, max.100 mA

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7, digital output SM 326, F-DO 8x24 V DC/2 A PM fail-safe digital output sinking-sourcing, up to category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849), 1x 40-pole

Siemens 6ES7326-2BF41-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

Rated value (DC)24 V; 1L+

Reverse polarity protectionYes

Load voltage L+

Rated value (DC)24 V; 2L+, 3L+

Reverse polarity protectionNo

Input current

from supply voltage 1L+, max.75 mA

from load voltage 2L+ (without load), max.100 mA

from load voltage 3L+ (without load), max.100 mA

from backplane bus 5 V DC, max.100 mA

Power loss

Power loss, typ.12 W

Digital outputs

Number of digital outputs8

Short-circuit protectionYes

Limitation of inductive shutdown voltage toL+ (-33 V)

Switching capacity of the outputs

on lamp load, max.5 W

Output voltage

for signal "1", min.L+ (-1.0 V)

Output current

for signal "1" rated value2 A

for signal "1" permissible range for 0 to 40 °C, min.7 mA

for signal "1" permissible range for 0 to 40 °C, max.2 A; 2 A for horizontal installation, 1 A for vertical installation

for signal "1" permissible range for 40 to 60 °C, min.7 mA

for signal "1" permissible range for 40 to 60 °C, max.1 A; for horizontal installation

for signal "0" residual current, max.0.5 mA

Switching frequency

with resistive load, max.30 Hz

with inductive load, max.2 Hz

on lamp load, max.10 Hz

horizontal installation

— up to 40 °C, max.7.5 A

— up to 60 °C, max.5 A

vertical installation

— up to 40 °C, max.5 A

Cable length

shielded, max.200 m; 200 m for SIL 3, AK 6, Cat 4

unshielded, max.200 m

Alarms

Diagnostic alarmYes; Parameterizable

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Fail-safe operationYes

Group error SF (red)Yes

Potential separation digital outputs

between the channelsYes

between the channels, in groups of4

between the channels and backplane busYes

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with500 V DC/350 V AC

Highest safety class achievable in safety mode

acc. to EN 954Cat. 4

Performance level according to ISO 13849-1e

SIL acc. to IEC 61508SIL 3

Connection method

required front connector40-pin

Dimensions

Width80 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.465 g
