How can I get a price quote for Siemens 6ES7323-1BH01-0AA0?

You can request a fast quote for Siemens 6ES7323-1BH01-0AA0 from Yılsa Engineering. Reference part number CEY-937FC77FF5C5. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7323-1BH01-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7323-1BH01-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7323-1BH01-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

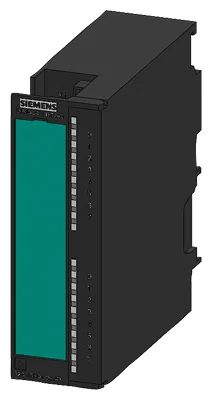

Siemens 6ES7323-1BH01-0AA0

***spare part*** SIMATIC S7-300, digital module SM 323, isolated, 8 DI and 8 DO, 24 V DC, 0.5 A total current 2 A, 1x 20-pole

SiemensMFR # 6ES7323-1BH01-0AA0SKU # CEY-937FC77FF5C5

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.40 mA

Power loss, typ.3.5 W

Number of digital inputs8

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, digital module SM 323, isolated, 8 DI and 8 DO, 24 V DC, 0.5 A total current 2 A, 1x 20-pole

Siemens 6ES7323-1BH01-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.40 mA

from backplane bus 5 V DC, max.40 mA

Power loss

Power loss, typ.3.5 W

Digital inputs

Number of digital inputs8

Input characteristic curve in accordance with IEC 61131, type 1Yes

horizontal installation

— up to 60 °C, max.8

vertical installation

— up to 40 °C, max.8

Input voltage

Type of input voltageDC

Rated value (DC)24 V

for signal "0"-30 to +5 V

for signal "1"13 to 30V

Input current

for signal "1", typ.7 mA

for standard inputs

— at "0" to "1", min.1.2 ms

— at "0" to "1", max.4.8 ms

— at "1" to "0", min.1.2 ms

— at "1" to "0", max.4.8 ms

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Digital outputs

Number of digital outputs8

Short-circuit protectionYes

Response threshold, typ.1 A

Limitation of inductive shutdown voltage toL+ (-53 V)

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit4 kΩ

Output voltage

for signal "1", min.L+ (-0.8 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, min.5 mA

for signal "1" permissible range, max.0.6 A

for signal "1" minimum load current5 mA

for signal "0" residual current, max.0.5 mA

Output delay with resistive load

"0" to "1", max.100 µs

"1" to "0", max.500 µs

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes; only outputs of the same group

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

with inductive load (acc. to IEC 60947-5-1, DC13), max.0.5 Hz

on lamp load, max.10 Hz

horizontal installation

— up to 40 °C, max.4 A

— up to 60 °C, max.4 A

vertical installation

— up to 40 °C, max.4 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Connectable encoders

2-wire sensorYes

— permissible quiescent current (2-wire sensor), max.2 mA

Interrupts/diagnostics/status information

AlarmsNo

Diagnostics functionNo

Diagnostics indication LED

Status indicator digital input (green)Yes

Status indicator digital output (green)Yes

Potential separation digital inputs

between the channelsYes

between the channels, in groups of8

between the channels and backplane busYes; Optocoupler

Potential separation digital outputs

between the channelsYes

between the channels, in groups of8

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V DC

Connection method

required front connector20-pin

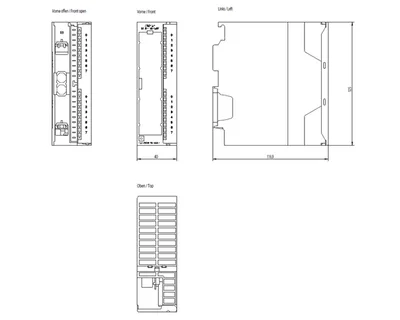

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.220 g
