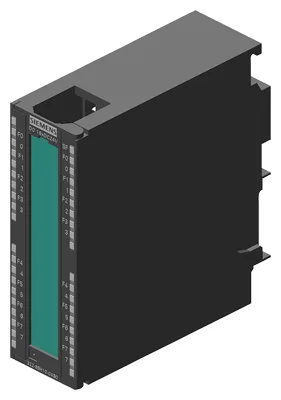

Siemens 6ES7322-8BH10-0AB0

********** spare part ********* SIMATIC S7/PCS7, digital output SM 322, 16 DO; 24 V DC / 0.5 A, diagnostics-capable, wire break detection with 0 and 1 signal, 1 x 40-pole, connection IM 153-X HF required

SiemensMFR # 6ES7322-8BH10-0AB0SKU # CEY-937FC77DE7ED

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.100 mA

Power loss, typ.6 W

Number of digital outputs16

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7322-8BH10-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.100 mA

from backplane bus 5 V DC, max.100 mA

Power loss

Power loss, typ.6 W

Digital outputs

Number of digital outputs16

Short-circuit protectionYes

Response threshold, typ.1.4 A; per channel

Limitation of inductive shutdown voltage toL+ (-68 V)

Switching capacity of the outputs

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit4 kΩ

Output voltage

for signal "1", min.L+ (-0.7 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range, min.5 mA

for signal "1" permissible range, max.0.6 A

for signal "0" residual current, max.0.7 mA

Output delay with resistive load

"0" to "1", max.3 ms

"1" to "0", max.3 ms

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load (acc. to IEC 60947-5-1, DC13), max.2 Hz

on lamp load, max.10 Hz

horizontal installation

— up to 60 °C, max.2 A

vertical installation

— up to 40 °C, max.2 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

AlarmsYes

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Diagnoses

Diagnostic information readableYes

Wire breakYes

Short-circuitYes

Missing load voltageYes

Diagnostics indication LED

Rated load voltage PWR (green)No

Group error SF (red)Yes

Status indicator digital output (green)Yes

Channel fault indicator F (red)Yes

Potential separation digital outputs

between the channelsNo

between the channels, in groups of4

between the channels and backplane busYes

between the channels and the power supply of the electronicsNo

Isolation

Isolation tested with500 V DC

Connection method

required front connector1x 40-pin

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.350 g
