How can I get a price quote for Siemens 6ES7322-5RD00-0AB0?

You can request a fast quote for Siemens 6ES7322-5RD00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77DDF8E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7322-5RD00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7322-5RD00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7322-5RD00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

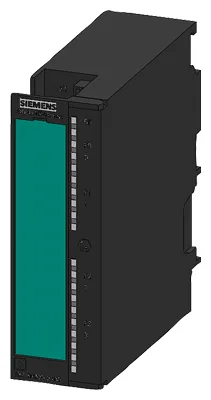

Siemens 6ES7322-5RD00-0AB0

********** spare part ********* SIMATIC S7, digital output SM 322, isolated, 4 DO; 15 V / 20 mA, 1 x 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested

SiemensMFR # 6ES7322-5RD00-0AB0SKU # CEY-937FC77DDF8E

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.85 mA

Power loss, typ.3 W

Number of digital outputs4

Short-circuit protectionYes; Electronic

Have questions?Chat on WhatsApp

About This Product

********** spare part ********* SIMATIC S7, digital output SM 322, isolated, 4 DO; 15 V / 20 mA, 1 x 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested

Siemens 6ES7322-5RD00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.160 mA

from backplane bus 5 V DC, max.85 mA

Power loss

Power loss, typ.3 W

Digital outputs

Number of digital outputs4

Short-circuit protectionYes; Electronic

Response threshold, typ.Output current with short-circuit protection, min. 20.5 mA + 10 %

Load resistance range

upper limit200 Ω; Two-wire connection

Output voltage

Rated value (DC)15 V

Output current

for signal "1" permissible range for 0 to 60 °C, max.20 mA; ±10 %

Switching frequency

with resistive load, max.100 Hz

Cable length

unshielded, max.200 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Diagnoses

Diagnostic information readableYes

Short-circuitYes

Diagnostics indication LED

Group error SF (red)Yes

Status indicator digital output (green)Yes

Channel fault indicator F (red)Yes

Ex(i) characteristics

Module for Ex(i) protectionYes

maximum values for connecting terminals for gas group IIC

Uo (no-load voltage), max.15.75 V

Io (short-circuit current), max.85 mA

Po (power output), max.335 mW

Co (permissible external capacity), max.500 nF

Lo (permissible external inductivity), max.5 mH

Potential separation digital outputs

between the channelsYes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area

between the channels, in groups of1

between the channels and backplane busYes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area

Between the channels and load voltage L+Yes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area

Use in hazardous areas

ATEX marking[EEx ib] IIC

FM markingAIS CL.1, DIV 1, GP A, B, C, D; CL.I, DIV 2, GP A, B, C, D T4

Test number PTBEx-96.D.2102X

Ambient temperature during operation

max.60 °C

Connection method

required front connector20-pin

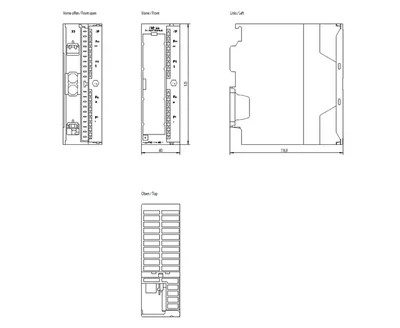

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.230 g

Accessories 2

Genuine accessories that can be used with the Siemens 6ES7322-5RD00-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
