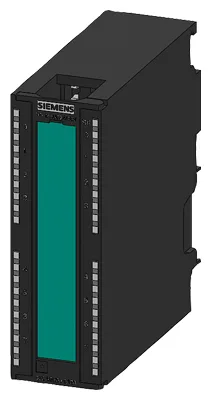

Siemens 6ES7322-5GH00-0AB0

***spare part*** SIMATIC S7-300, digital output SM 322, isolated, 16 DO (solid-state relay), 24-48 V AC/DC; 0.5 A with single-point grounding, 1x 40-pole

SiemensMFR # 6ES7322-5GH00-0AB0SKU # CEY-937FC77FFA40

Mains/voltage failure stored energy time5 ms

Rated value (DC)24 V; 24 / 48

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)57.6 V

Reverse polarity protectionYes

from supply voltage L+, max.200 mA

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, digital output SM 322, isolated, 16 DO (solid-state relay), 24-48 V AC/DC; 0.5 A with single-point grounding, 1x 40-pole

Siemens 6ES7322-5GH00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Mains buffering

Mains/voltage failure stored energy time5 ms

Load voltage L+

Rated value (DC)24 V; 24 / 48

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)57.6 V

Reverse polarity protectionYes

Input current

from supply voltage L+, max.200 mA

from backplane bus 5 V DC, max.100 mA

Power loss

Power loss, typ.2.8 W

Digital outputs

Number of digital outputs16

Short-circuit protectionNo; to be provided externally

Controlling a digital inputYes

Size of motor starters according to NEMA, max.Size 5 according to NEMA

Switching capacity of the outputs

on lamp load, max.2.5 W

Output voltage

for signal "1", min.L+ (-0.25 V)

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range for 0 to 40 °C, max.0.5 A

for signal "1" permissible range for 40 to 60 °C, max.0.5 A

for signal "1" permissible surge current, max.1.5 A; for 50 ms, 1 A 2 s one-time

for signal "0" residual current, max.10 µA

Output delay with resistive load

"0" to "1", max.6 ms

"1" to "0", max.3 ms

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.10 Hz

with inductive load, max.0.5 Hz

with inductive load (acc. to IEC 60947-5-1, DC13), max.0.5 Hz

on lamp load, max.0.5 Hz

horizontal installation

— up to 40 °C, max.0.5 A; 8 A per module

— up to 60 °C, max.0.5 A; 8 A per module

vertical installation

— up to 40 °C, max.0.5 A; 8 A per module

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

Diagnostics functionYes; Parameterizable

Alarms

Diagnostic alarmYes; Parameterizable

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Group error SF (red)Yes

Status indicator digital output (green)Yes

Potential separation digital outputs

between the channelsYes

between the channels, in groups of1

between the channels and backplane busYes; Optocoupler

between the channels and the power supply of the electronicsYes

Isolation

Isolation tested with1 500 V AC

Connection method

required front connector40-pin

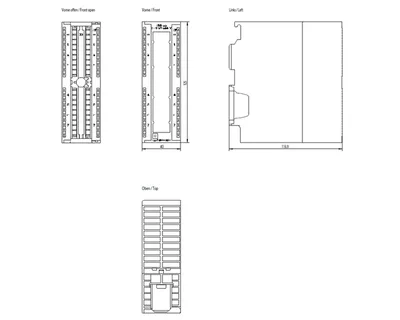

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.260 g
