How can I get a price quote for Siemens 6ES7322-1HF10-0AA0?

You can request a fast quote for Siemens 6ES7322-1HF10-0AA0 from Yılsa Engineering. Reference part number CEY-937FC77EB672. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7322-1HF10-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7322-1HF10-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7322-1HF10-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

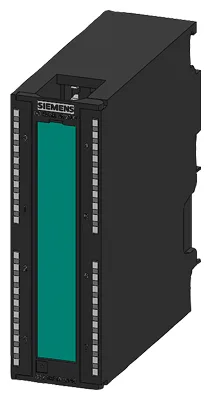

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7322-1HF10-0AA0

***spare part*** SIMATIC S7-300, digital output SM 322, isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 5 A or 230 V AC, 5 A, connectors with spring-loaded terminal can be used as of 6ES7392-1BM01-0AA0

SiemensMFR # 6ES7322-1HF10-0AA0SKU # CEY-937FC77EB672

Rated value (DC)120 V

Rated value (AC)230 V

from supply voltage L+, max.125 mA

from backplane bus 5 V DC, max.40 mA

Power loss, typ.3.2 W

Number of digital outputs8; Relays

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, digital output SM 322, isolated, 8 DO (relay), 1x 40-pole, 24 V DC, 5 A or 230 V AC, 5 A, connectors with spring-loaded terminal can be used as of 6ES7392-1BM01-0AA0

Siemens 6ES7322-1HF10-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)120 V

Load voltage L1

Rated value (AC)230 V

Input current

from supply voltage L+, max.125 mA

from backplane bus 5 V DC, max.40 mA

Power loss

Power loss, typ.3.2 W

Digital outputs

Number of digital outputs8; Relays

Short-circuit protectionNo; to be provided externally

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.1 500 W; 230 V AC

Low energy/fluorescent lamps with electronic control gear10x 58 W

Fluorescent tubes, conventionally compensated1x 58 W

Fluorescent tubes, uncompensated10x 58 W

Output current

for signal "1" rated value5 A

for signal "1" minimum load current5 mA

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.2 Hz

with inductive load, max.0.5 Hz

With inductive load (to IEC 60947-5-1, DC13/AC15), max.0.5 Hz

on lamp load, max.2 Hz

mechanical, max.10 Hz

horizontal installation

— up to 60 °C, max.5 A

vertical installation

— up to 40 °C, max.5 A

Relay outputs

Rated supply voltage of relay coil L+ (DC)24 V

Contact connection (internal)No

Number of operating cycles, max.300 000; 300 000 (24 V DC, at 2 A); 200 000 (120 V AC, at 3 A); 100 000 (230 V AC, at 3 A)

Switching capacity of contacts

— with inductive load, max.3 A; 3 A (230 V DC), 2 A (24 V AC)

— with resistive load, max.8 A; 8 A (230 V DC), 5 A (24 V AC)

— Thermal continuous current, max.8 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

AlarmsNo

Diagnostics functionNo

Alarms

Diagnostic alarmNo

Diagnoses

Wire breakNo

Short-circuitNo

Fuse blownNo

Missing load voltageNo

Diagnostics indication LED

Rated load voltage PWR (green)No

Fuse OK FSG (green)No

Status indicator digital output (green)Yes

Potential separation digital outputs

between the channelsYes

between the channels, in groups of1

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with2 000 V AC

Connection method

required front connector40-pin

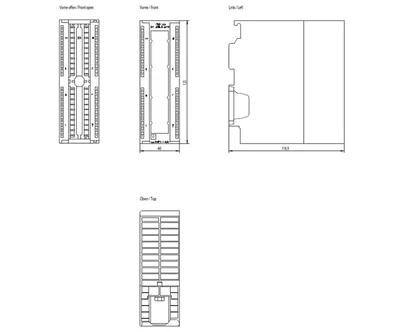

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.320 g
