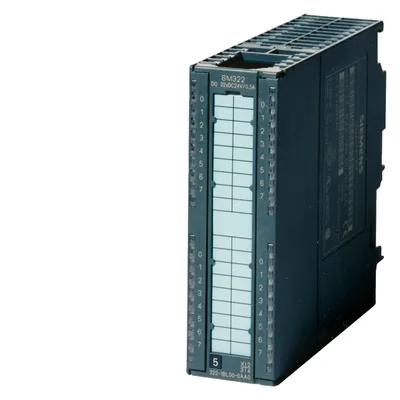

Photo may not represent actual item. Refer to name and product specs for all details.

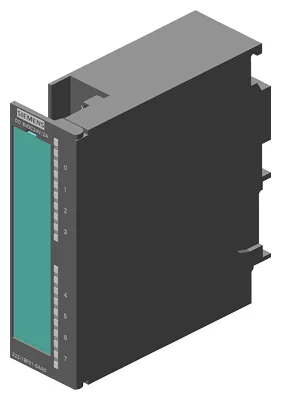

Siemens 6ES7322-1BF01-0AA0

***spare part*** SIMATIC S7-300, digital output SM 322, isolated, 8 DO, 24 V DC, 2 A, 1x 20-pole

SiemensMFR # 6ES7322-1BF01-0AA0SKU # CEY-55221B146660

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.40 mA

Power loss, typ.6.8 W

Number of digital outputs8

Have questions?Chat on WhatsApp

About This Product

***spare part*** SIMATIC S7-300, digital output SM 322, isolated, 8 DO, 24 V DC, 2 A, 1x 20-pole

Siemens 6ES7322-1BF01-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from load voltage L+ (without load), max.60 mA

from backplane bus 5 V DC, max.40 mA

Power loss

Power loss, typ.6.8 W

Digital outputs

Number of digital outputs8

Short-circuit protectionYes; Electronic

Response threshold, typ.3 A

Limitation of inductive shutdown voltage toL+ (-48 V)

Controlling a digital inputYes

Switching capacity of the outputs

on lamp load, max.10 W

Load resistance range

lower limit12 Ω

upper limit4 kΩ

Output voltage

for signal "1", min.L+ (-0.8 V)

Output current

for signal "1" rated value2 A

for signal "1" permissible range for 0 to 40 °C, min.5 mA

for signal "1" permissible range for 0 to 40 °C, max.2.4 A

for signal "1" permissible range for 40 to 60 °C, min.5 mA

for signal "1" permissible range for 40 to 60 °C, max.2.4 A

for signal "1" minimum load current5 mA

for signal "0" residual current, max.0.5 mA

Output delay with resistive load

"0" to "1", max.100 µs

"1" to "0", max.500 µs

Parallel switching of two outputs

for upratingNo

for redundant control of a loadYes

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.5 Hz

with inductive load (acc. to IEC 60947-5-1, DC13), max.0.5 Hz

on lamp load, max.10 Hz

horizontal installation

— up to 40 °C, max.4 A

— up to 60 °C, max.4 A

vertical installation

— up to 40 °C, max.4 A

Cable length

shielded, max.1 000 m

unshielded, max.600 m

Interrupts/diagnostics/status information

AlarmsNo

Diagnostics functionNo

Alarms

Diagnostic alarmNo

Diagnoses

Wire breakNo

Short-circuitNo

Fuse blownNo

Missing load voltageNo

Diagnostics indication LED

Rated load voltage PWR (green)No

Fuse OK FSG (green)No

Status indicator digital output (green)Yes; per channel

Potential separation digital outputs

between the channelsYes

between the channels, in groups of4

between the channels and backplane busYes; Optocoupler

Isolation

Isolation tested with500 V DC

Connection method

required front connector20-pin

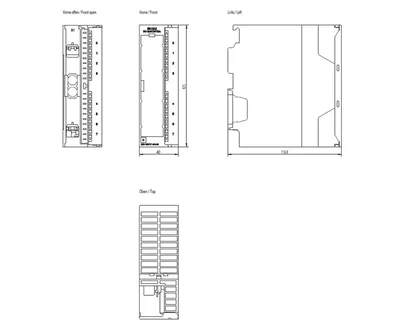

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.190 g
