How can I get a price quote for Siemens 6ES7321-7TH00-0AB0?

You can request a fast quote for Siemens 6ES7321-7TH00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77EAC5E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7321-7TH00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7321-7TH00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7321-7TH00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

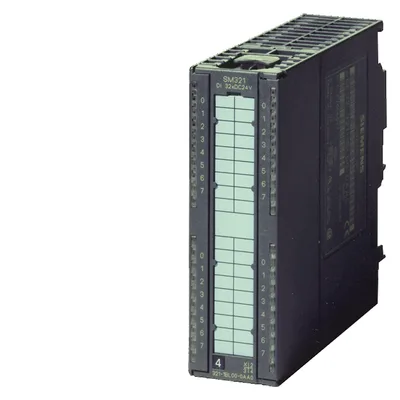

Photo may not represent actual item. Refer to name and product specs for all details.

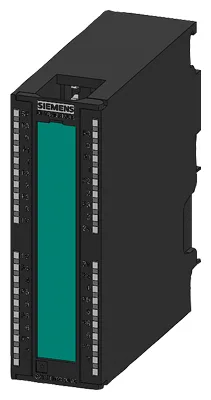

Siemens 6ES7321-7TH00-0AB0

********** spare part ********* SIMATIC S7/PCS7, digital input SM 321, 16 DI; 24 V DC, 1 x 40-pole, diagnostics-capable, for contacts (wired/ not wired), NAMUR encoder, 3/4-wire BERO, with chatter monitoring; pulse stretching, open-circuit detection connection IM 153-2 HF or IM 153-4 HF possible

SiemensMFR # 6ES7321-7TH00-0AB0SKU # CEY-937FC77EAC5E

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.100 mA

Number of outputs4

Type of output voltage1Vs1/2Vs1: 18 V, 1Vs2/2Vs2: 8.2 V

Short-circuit protectionYes; Electronic

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7321-7TH00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.100 mA

from backplane bus 5 V DC, max.100 mA

Encoder supply

Number of outputs4

Type of output voltage1Vs1/2Vs1: 18 V, 1Vs2/2Vs2: 8.2 V

Short-circuit protectionYes; Electronic

additional (redundant) feedNo

Output current

Rated value190 mA; at 18V: 190mA, at 8.2V: 60mA

permissible range, upper limitUp to 60 degree: at 18V: 0 to 110mA, at 8.2V: 0 to 60mA; Up to 40 degree: at 18V: 0 to 190mA, at 8.2V: 0 to 60mA

Power loss

Power loss, typ.11 W

Digital inputs

Number of digital inputs16

Input characteristic curve in accordance with IEC 61131, type 1No

Input characteristic curve in accordance with IEC 61131, type 2Yes

horizontal installation

— up to 60 °C, max.16

vertical installation

— up to 40 °C, max.16

Input voltage

Type of input voltageDC

Rated value (DC)8.2 V; 8.2V/18V

Input current

for signal "0", min.0.35 mA

for signal "0", max. (permissible quiescent current)1.2 mA

for signal "1", typ.10 mA; for NAMUR: 2.1 to 7 mA, for 10k ohm/47k ohm contact: typical 10mA, for 4 wire BEROs: typical 10 mA

for standard inputs

— at "0" to "1", min.2.5 ms

— at "0" to "1", max.3.5 ms

— at "1" to "0", min.2.5 ms

— at "1" to "0", max.3.5 ms

Cable length

shielded, max.400 m; max. 200m with 8.2 V sensor, max. 400m with 18 V sensor

unshielded, max.Not permitted

Interrupts/diagnostics/status information

AlarmsYes

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Hardware interruptYes

Diagnoses

Diagnostic information readableYes

Wire breakYes

Diagnostics indication LED

Group error SF (red)Yes

Status indicator digital input (green)Yes

Encoder supply Vs (green)Yes

Potential separation digital inputs

between the channelsYes

between the channels, in groups of8

between the channels and backplane busYes

Isolation

Isolation tested with600 V DC

Ambient temperature during operation

min.0 °C

max.60 °C

Connection method

required front connector1x 40-pin

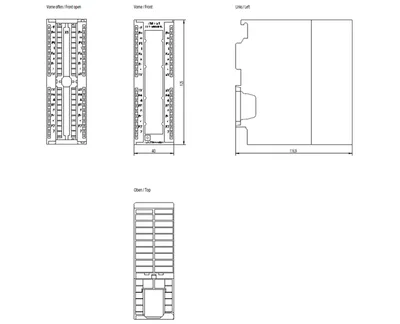

Dimensions

Width40 mm

Height125 mm

Depth120 mm
