How can I get a price quote for Siemens 6ES7321-7RD00-0AB0?

You can request a fast quote for Siemens 6ES7321-7RD00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77FABE7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7321-7RD00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7321-7RD00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7321-7RD00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

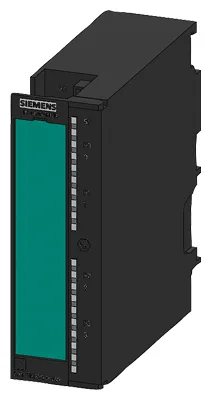

Siemens 6ES7321-7RD00-0AB0

********** spare part ********* SIMATIC S7, digital input SM 321, isolated, 4 DI; 24 V DC, NAMUR/DIN 19234, for signals from the hazardous area, diagnostics-capable, PTB tested,

SiemensMFR # 6ES7321-7RD00-0AB0SKU # CEY-937FC77FABE7

Rated value (DC)24 V

Reverse polarity protectionYes

from backplane bus 5 V DC, max.80 mA

Type of output voltagevia the inputs

Power loss, typ.1.1 W

Number of digital inputs4

Have questions?Chat on WhatsApp

About This Product

********** spare part ********* SIMATIC S7, digital input SM 321, isolated, 4 DI; 24 V DC, NAMUR/DIN 19234, for signals from the hazardous area, diagnostics-capable, PTB tested,

Siemens 6ES7321-7RD00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Input current

from load voltage L+ (without load), max.50 mA

from backplane bus 5 V DC, max.80 mA

Encoder supply

Type of output voltagevia the inputs

Power loss

Power loss, typ.1.1 W

Digital inputs

Number of digital inputs4

Number of NAMUR inputs4

Input voltage

Type of input voltageDC

Rated value (DC)8.2 V; from internal power circuit supply

Input current

on wire-break, max.0.1 mA

on short-circuit, max.8.5 mA

for NAMUR encoders

— for signal "0", min.0.35 mA

— for signal "0", max.1.2 mA

— for signal "1", min.2.1 mA

— for signal "1", max.7 mA

Input delay (for rated value of input voltage)

Input frequency (with a time delay of 0.1 ms), max.2 kHz

for NAMUR inputs

— ParameterizableYes; 0.1 / 0.5 / 3 / 15 / 20 ms (plus 0.25 ms preparation time)

Cable length

unshielded, max.200 m

Connectable encoders

NAMUR encoderYes; Two-wire connection

Interrupts/diagnostics/status information

Diagnostics functionYes

Diagnoses

Diagnostic information readableYes

Diagnostics indication LED

Group error SF (red)Yes

Status indicator digital input (green)Yes

Channel fault indicator F (red)Yes

Ex(i) characteristics

Module for Ex(i) protectionYes

maximum values for connecting terminals for gas group IIC

Uo (no-load voltage), max.10 V

Io (short-circuit current), max.14.1 mA

Po (power output), max.33.7 mW

Co (permissible external capacity), max.3 µF

Lo (permissible external inductivity), max.100 mH

Potential separation digital inputs

between the channelsYes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area

between the channels, in groups of1

between the channels and backplane busYes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area

Between the channels and load voltage L+Yes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area

Use in hazardous areas

ATEX markingATEX II 3 G (2) GD Ex nA [ib Gb] [ib IIIC Db] IIC T4 Gc

FM markingClass II, Division 2, Group A, B, C, D T4

Test number PTBEx-96.D.2094X

Ambient temperature during operation

max.60 °C

Connection method

required front connector20-pin

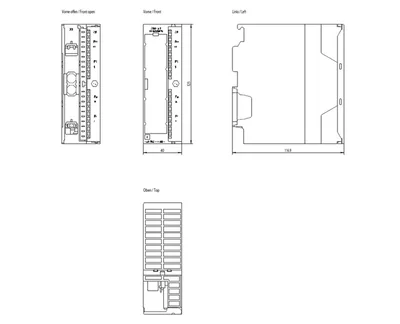

Dimensions

Width40 mm

Height125 mm

Depth120 mm

Weights

Weight, approx.230 g
