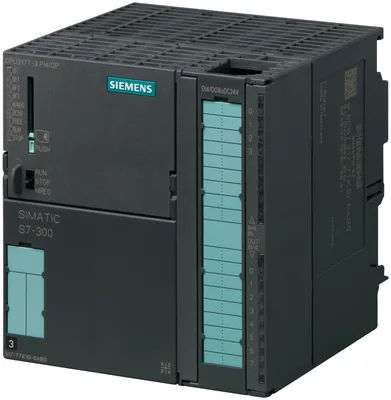

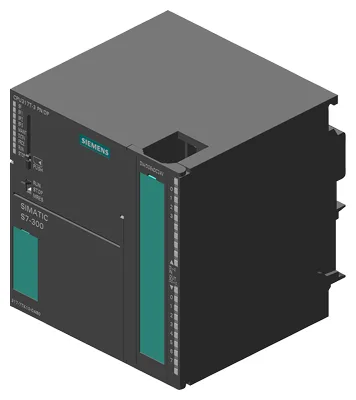

Siemens 6ES7317-7TK10-0AB0

SINAMICS FIRMWARE VERSIONS. FOR FURTHER INFORMATION SEE: HTTP://SUPPORT.AUTOMATION.SIEMENS.COM/WW/VIEW/DE/23411204 S7-300, CPU 317T-3 PN/DP, central processing unit for PLC and technology tasks, 1024 KB work memory, 1st interface MPI/DP 12 Mbps, 2nd interface DP (drive), 3rd interface Ethernet PROFINET with 2-port switch, integrated I/O for technology, front connector (1x 40-pole) and Micro Memory Card min. 8 MB required

SiemensMFR # 6ES7317-7TK10-0AB0SKU # CEY-937FC780AE78

Product type designationCPU 317T-3 PN/DP

HW functional status01

Firmware versionCPU: V3.2; integrated technology V4.1.5

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7317-7TK10-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCPU 317T-3 PN/DP

HW functional status01

Firmware versionCPU: V3.2; integrated technology V4.1.5

Product function

Isochronous modeYes; Via PROFIBUS DP or PROFINET interface

Engineering with

Programming packageSTEP 7 V5.5 SP2 or higher and S7-Technology option package V4.2 SP3

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

external protection for power supply lines (recommendation)2 A min.

Load voltage L+

Rated value (DC)24 V

Reverse polarity protectionYes

Digital outputs

— Rated value (DC)24 V; 2L+

— Reverse polarity protectionNo; 2L+

Input current

Current consumption (rated value)1 050 mA

Current consumption (in no-load operation), typ.230 mA

Inrush current, typ.6.5 A

I²t1 A²·s

Power loss

Power loss, typ.7.5 W

Work memory

Integrated1 024 kbyte

expandableNo

Load memory

Plug-in (MMC)Yes

Plug-in (MMC), max.8 Mbyte

Data management on MMC (after last programming), min.10 a

Backup

presentYes; Guaranteed by MMC (maintenance-free)

without batteryYes; Program and data

CPU processing times

for bit operations, typ.0.025 µs

for word operations, typ.0.03 µs

for fixed point arithmetic, typ.0.04 µs

for floating point arithmetic, typ.0.16 µs

CPU-blocks

Number of elements (total)2 048; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.

Number, max.2 048; Number range: 1 to 16000

Size, max.64 kbyte

Number, max.2 048; Number range: 0 to 7999

Size, max.64 kbyte

Number, max.2 048; Number range: 0 to 7999

Size, max.64 kbyte

Number, max.see instruction list

Size, max.64 kbyte

Number of free cycle OBs1; OB 1

Number of time alarm OBs1; OB 10

Number of delay alarm OBs2; OB 20, 21

Number of cyclic interrupt OBs4; OB 32, 33, 34, 35

Number of process alarm OBs1; OB 40

Number of DPV1 alarm OBs3; OB 55, 56, 57

Number of isochronous mode OBs1; OB 61 - isochronous mode is possible either on DP or PROFINET IO (not simultaneously)

Number of technology synchronous alarm OBs1; OB 65

Number of startup OBs1; OB 100

Number of asynchronous error OBs6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO)

Number of synchronous error OBs2; OB 121, 122

Nesting depth

per priority class16

additional within an error OB4

S7 counter

Number512

Retentivity

— can be setYes

— presetZ 0 to Z 7

Counting range

— can be setYes

— lower limit0

— upper limit999

IEC counter

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

S7 timer

Number512

Retentivity

— adjustableYes

— presetNo retentivity

Time range

— lower limit10 ms

— upper limit9 990 s

IEC timer

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.256 kbyte

Flag

Size, max.4 096 byte

Retentivity availableYes; From MB 0 to MB 4 095

Retentivity presetMB 0 to MB 15

Number of clock memories8; 1 memory byte

Data blocks

Retentivity adjustableYes; via non-retain property on DB

Retentivity presetYes

Local data

per priority class, max.32 768 byte; Max. 2048 bytes per block

I/O address area

Inputs8 192 byte

Outputs8 192 byte

of which distributed

— Inputs8 192 byte

— Outputs8 192 byte

Process image

Inputs8 192 byte

Outputs8 192 byte

Inputs, adjustable8 192 byte

Outputs, adjustable8 192 byte

Inputs, default256 byte

Outputs, default256 byte

Subprocess images

Number of subprocess images, max.1; With PROFINET IO, the length of the user data is limited to 1600 bytes

Digital channels

Inputs65 536

— of which central256

Outputs65 536

— of which central256

Analog channels

Inputs4 096

— of which central64

Outputs4 096

— of which central64

Hardware configuration

Number of expansion units, max.0

Number of DP masters

integrated2; 1 DP and 1 DP (drive)

via CP2; for DP

Number of operable FMs and CPs (recommended)

FM8

CP, PtP8

CP, LAN8

Rack

Racks, max.1

Modules per rack, max.8

Clock

Hardware clock (real-time)Yes

retentive and synchronizableYes

Backup time6 wk; At 40 °C ambient temperature

Deviation per day, max.10 s; Typ.: 2 s

Behavior of the clock following POWER-ONClock continues running after POWER OFF

Behavior of the clock following expiry of backup periodthe clock continues at the time of day it had when power was switched off

Operating hours counter

Number4

Number/Number range0 to 3

Range of values0 to 2^31 hours (when using SFC 101)

Granularity1 h

retentiveYes; Must be restarted at each restart

Clock synchronization

supportedYes

to MPI, masterYes

on MPI, deviceYes

to DP, masterYes

on DP, deviceYes; Only time-of-day slave

in AS, masterYes

in AS, deviceYes

on Ethernet via NTPYes; As client

Digital inputs

Number of digital inputs4

of which inputs usable for technological functions4

Input characteristic curve in accordance with IEC 61131, type 1Yes

horizontal installation

— up to 40 °C, max.4

— up to 60 °C, max.4

vertical installation

— up to 40 °C, max.4

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"+15 to +30 V

Input current

for signal "1", typ.7 mA

for technological functions

— at "0" to "1", max.10 µs; Typical

— at "1" to "0", max.10 µs; Typical

Cable length

shielded, max.1 000 m

Digital outputs

Number of digital outputs8

of which high-speed outputs8

Functionsfor technology functions, e.g. high-speed cam switch signals

Short-circuit protectionYes

Response threshold, typ.1 A

Limitation of inductive shutdown voltage to48 V

Controlling a digital inputNo

Switching capacity of the outputs

on lamp load, max.5 W

Load resistance range

lower limit48 Ω

upper limit4 kΩ

Output voltage

for signal "0", max.3 V; (2L+)

for signal "1", min.Rated voltage -2.5 V

Output current

for signal "1" rated value0.5 A

for signal "1" permissible range for 0 to 60 °C, min.5 mA

for signal "1" permissible range for 0 to 60 °C, max.0.6 A

for signal "0" residual current, max.0.3 mA

Parallel switching of two outputs

for upratingNo

for redundant control of a loadNo

Switching frequency

with resistive load, max.100 Hz

with inductive load, max.0.2 Hz; According to IEC 60947-5-1, DC-13

on lamp load, max.100 Hz

horizontal installation

— up to 40 °C, max.4 A

— up to 60 °C, max.3 A

all other mounting positions

— up to 40 °C, max.4 A

Integrated high-speed cams

Switching accuracy (+/-)70 µs

Cable length

shielded, max.1 000 m

Analog inputs

Number of analog inputs0

Connectable encoders

2-wire sensorNo

Interfaces

Number of PROFINET interfaces1

Number of RS 485 interfaces2

Number of RS 422 interfaces0

1. Interface

Interface typeIntegrated RS 485 interface

IsolatedYes

Interface types

RS 485Yes

Output current of the interface, max.200 mA

Protocols

MPIYes

PROFIBUS DP masterYes

PROFIBUS DP deviceYes

Point-to-point connectionNo

MPI

Transmission rate, max.12 Mbit/s

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationYes

— S7 basic communicationYes

— S7 communicationYes

— S7 communication, as clientNo; but via CP and loadable FB

— S7 communication, as serverYes

PROFIBUS DP master

Transmission rate, max.12 Mbit/s

max. number of DP devices124

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationNo

— S7 basic communicationYes; I blocks only

— S7 communicationYes

— S7 communication, as clientNo

— S7 communication, as serverYes

— EquidistanceYes

— Isochronous modeYes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO

— SYNC/FREEZEYes

— activation/deactivation of DP devicesYes

— max. number of DP devices that can be activated/deactivated at the same time8

— Direct data exchange (slave-to-slave communication)Yes; as subscriber

— DPV1Yes

Address area

— Inputs, max.8 kbyte

— Outputs, max.8 kbyte

User data per DP device

— Inputs, max.244 byte

— Outputs, max.244 byte

PROFIBUS DP device

Transmission rate, max.12 Mbit/s

automatic baud rate searchYes; only with passive interface

Address area, max.32

User data per address area, max.32 byte

Services

— PG/OP communicationYes

— RoutingYes; Only with active interface

— Global data communicationNo

— S7 basic communicationNo

— S7 communicationYes

— S7 communication, as clientNo

— S7 communication, as serverYes; Connection configured on one side only

— Direct data exchange (slave-to-slave communication)Yes

— DPV1No

Transfer memory

— Inputs244 byte

— Outputs244 byte

2. Interface

Interface typeIntegrated RS 485 interface

IsolatedYes

Interface types

RS 485Yes

Output current of the interface, max.200 mA

Protocols

MPINo

PROFIBUS DP masterYes; DP(DRIVE)-Master

PROFIBUS DP deviceNo

Point-to-point connectionNo

PROFIBUS DP master

Transmission rate, max.12 Mbit/s

max. number of DP devices64

Services

— PG/OP communicationNo

— RoutingNo

— Global data communicationNo

— S7 basic communicationNo

— S7 communicationNo

— EquidistanceYes

— Isochronous modeYes

— SYNC/FREEZENo

— activation/deactivation of DP devicesYes

— DPV1No

Address area

— Inputs, max.1 024 byte

— Outputs, max.1 024 byte

User data per DP device

— Inputs, max.244 byte

— Outputs, max.244 byte

PROFIBUS DP device

Transmission rate, max.12 Mbit/s

3. Interface

Interface typePROFINET

IsolatedYes

automatic detection of transmission rateYes; 10/100 Mbit/s

AutonegotiationYes

AutocrossingYes

Change of IP address at runtime, supportedYes

Interface types

RJ 45 (Ethernet)Yes

Number of ports2

integrated switchYes

Protocols

MPINo

PROFINET IO ControllerYes; Also simultaneously with IO-Device functionality

PROFINET IO deviceYes; Also simultaneously with IO Controller functionality

PROFIBUS DP masterNo

PROFIBUS DP deviceNo

Open IE communicationYes; Via TCP/IP, ISO on TCP, and UDP

Web serverYes

Media redundancyYes

PROFINET IO Controller

Transmission rate, max.100 Mbit/s

Services

— PG/OP communicationYes

— RoutingYes

— S7 communicationYes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32

— Isochronous modeYes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO

— Shared deviceYes

— Prioritized startupYes

— Number of IO devices with prioritized startup, max.32

— Number of connectable IO Devices, max.128

— Of which IO devices with IRT, max.64

— of which in line, max.64

— Number of connectable IO Devices for RT, max.128

— of which in line, max.128

— Activation/deactivation of IO DevicesYes

— Number of IO Devices that can be simultaneously activated/deactivated, max.8

— IO Devices changing during operation (partner ports), supportedYes

— Number of IO Devices per tool, max.8

— Device replacement without swap mediumYes

— Send cycles250 µs, 500 µs, 1 ms, 2 ms, 4 ms

— Updating time250 µs to 512 ms (depending on the operating mode, see Manual "S7-300 CPU 31xC and CPU 31x, technical Data" for more details)

Address area

— Inputs, max.8 kbyte

— Outputs, max.8 kbyte

— User data consistency, max.1 024 byte

Services

— PG/OP communicationYes

— RoutingYes

— S7 communicationYes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32

— Isochronous modeNo

— IRTYes

— PROFIenergyYes; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device

— Shared deviceYes

— Number of IO Controllers with shared device, max.2

Transfer memory

— Inputs, max.1 440 byte; Per IO Controller with shared device

— Outputs, max.1 440 byte; Per IO Controller with shared device

Submodules

— Number, max.64

— User data per submodule, max.1 024 byte

Open IE communication

Number of connections, max.16

Local port numbers used at the system end0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535

Keep-alive function, supportedYes

Protocols

PROFIsafeNo

Media redundancy

— Switchover time on line break, typ.200 ms; PROFINET MRP

— Number of stations in the ring, max.50

Open IE communication

TCP/IPYes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.16

— Data length for connection type 01H, max.1 460 byte

— Data length for connection type 11H, max.32 768 byte

— several passive connections per port, supportedYes

ISO-on-TCP (RFC1006)Yes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.16

— Data length, max.32 768 byte

UDPYes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.16

— Data length, max.1 472 byte

Web server

supportedYes

User-defined websitesYes

Number of HTTP clients5

Communication functions

PG/OP communicationYes

Data record routingYes

Global data communication

supportedYes

Number of GD loops, max.8

Number of GD packets, max.8

Number of GD packets, transmitter, max.8

Number of GD packets, receiver, max.8

Size of GD packets, max.22 byte

Size of GD packet (of which consistent), max.22 byte

S7 basic communication

supportedYes

User data per job, max.76 byte

User data per job (of which consistent), max.76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)

S7 communication

supportedYes

as serverYes

as clientYes; via integrated PROFINET interface and loadable FB or via CP and loadable FB

User data per job, max.See online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication)

S5 compatible communication

supportedYes; via CP and loadable FC

Number of connections

overall32

usable for PG communication31

— reserved for PG communication1

— adjustable for PG communication, min.1

— adjustable for PG communication, max.31

usable for OP communication31

— reserved for OP communication1

— adjustable for OP communication, min.1

— adjustable for OP communication, max.31

usable for S7 basic communication30

— reserved for S7 basic communication0

— adjustable for S7 basic communication, min.0

— adjustable for S7 basic communication, max.30

usable for S7 communication16

— reserved for S7 communication0

— adjustable for S7 communication, min.0

— adjustable for S7 communication, max.16

total number of instances, max.32

usable for routingX1 as MPI: max. 10; X1 as DP master: max. 24; X1 as DP slave (active): max. 14; X2 as PROFINET: 24 max.

S7 message functions

Number of login stations for message functions, max.32; Depending on the configured connections for PG/OP and S7 basic communication

Process diagnostic messagesYes

simultaneously active Alarm_S blocks, max.300

Test commissioning functions

Status blockYes; Up to 2 simultaneously

Single stepYes

Number of breakpoints4; without continuation

Status/control

Status/control variableYes

VariablesInputs, outputs, memory bits, DB, times, counters

Number of variables, max.30

— of which status variables, max.30

— of which control variables, max.14

Forcing

ForcingYes

Forcing, variablesInputs, outputs

Number of variables, max.10

Diagnostic buffer

presentYes

Number of entries, max.500

— can be setNo

— of which powerfail-proof100; Only the last 100 entries are retained

Number of entries readable in RUN, max.499

— can be setYes; From 10 to 499

— preset10

Service data

Can be read outYes

Interrupts/diagnostics/status information

AlarmsNo

Diagnostics functionNo

Diagnostics indication LED

Status indicator digital input (green)Yes

Status indicator digital output (green)Yes

Potential separation digital inputs

between the channels and backplane busYes

Potential separation digital outputs

between the channels and backplane busYes

Isolation

Isolation tested with500 V DC

Ambient temperature during operation

min.0 °C

max.60 °C

Configuration software

STEP 7Yes; STEP 7 V5.5 SP2 or higher and S7-Technology option package V4.2 SP3

Programming

Command setsee instruction list

Nesting levels8

System functions (SFC)see instruction list

System function blocks (SFB)see instruction list

Programming language

— LADYes

— FBDYes

— STLYes

— SCLYes

— CFCYes

— GRAPHYes

— HiGraph®Yes

Know-how protection

User program protection/password protectionYes

Block encryptionYes; With S7 block Privacy

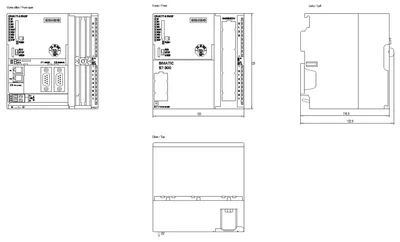

Dimensions

Width120 mm

Height125 mm

Depth130 mm

Weights

Weight, approx.640 g

Accessories 5

Genuine accessories that can be used with the Siemens 6ES7317-7TK10-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7953-8LP31-0AA0	Aksesuar · Memory card
6ES7392-1AM00-0AA0	Aksesuar · Connection plug
6ES7392-1BM01-0AA0	Aksesuar · Connection plug
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
