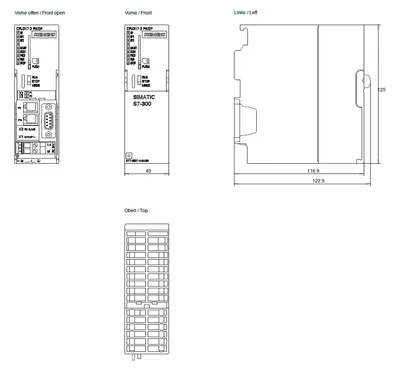

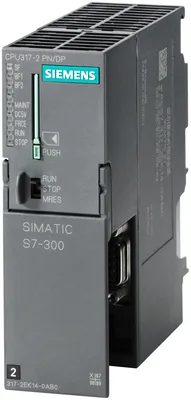

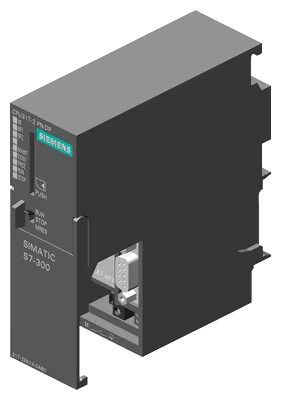

Siemens 6ES7317-2EK14-0AB0

SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required

SiemensMFR # 6ES7317-2EK14-0AB0SKU # CEY-937FC7801AA3

Product type designationCPU 317-2 PN/DP

HW functional status01

Firmware versionV3.2

Programming packageSTEP 7 V5.5 or higher

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-300 CPU 317-2 PN/DP, Central processing unit with 1 MB work memory, 1st interface MPI/DP 12 Mbit/s, 2nd interface Ethernet PROFINET, with 2-port switch, Micro Memory Card required

Siemens 6ES7317-2EK14-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationCPU 317-2 PN/DP

HW functional status01

Firmware versionV3.2

Product function

Isochronous modeYes; Via PROFIBUS DP or PROFINET interface

Engineering with

Programming packageSTEP 7 V5.5 or higher

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

external protection for power supply lines (recommendation)2 A min.

Mains buffering

Mains/voltage failure stored energy time5 ms

Repeat rate, min.1 s

Input current

Current consumption (rated value)750 mA

Current consumption (in no-load operation), typ.150 mA

Inrush current, typ.4 A

I²t1 A²·s

Power loss

Power loss, typ.4.65 W

Work memory

integrated1 024 kbyte

expandableNo

Load memory

Plug-in (MMC)Yes

Plug-in (MMC), max.8 Mbyte

Data management on MMC (after last programming), min.10 a

Backup

presentYes; Guaranteed by MMC (maintenance-free)

without batteryYes; Program and data

CPU processing times

for bit operations, typ.0.025 µs

for word operations, typ.0.03 µs

for fixed point arithmetic, typ.0.04 µs

for floating point arithmetic, typ.0.16 µs

CPU-blocks

Number of elements (total)2 048; (DBs, FCs, FBs); the maximum number of loadable blocks can be reduced by the MMC used.

Number, max.2 048; Number range: 1 to 16000

Size, max.64 kbyte

Number, max.2 048; Number range: 0 to 7999

Size, max.64 kbyte

Number, max.2 048; Number range: 0 to 7999

Size, max.64 kbyte

Number of free cycle OBs1; OB 1

Number of time alarm OBs1; OB 10

Number of delay alarm OBs2; OB 20, 21

Number of cyclic interrupt OBs4; OB 32, 33, 34, 35

Number of process alarm OBs1; OB 40

Number of DPV1 alarm OBs3; OB 55, 56, 57

Number of isochronous mode OBs1; OB 61 - isochronous mode is possible either on DP or PROFINET IO (not simultaneously)

Number of startup OBs1; OB 100

Number of asynchronous error OBs6; OB 80, 82, 83, 85, 86, 87 (OB83 only for PROFINET IO)

Number of synchronous error OBs2; OB 121, 122

Nesting depth

per priority class16

additional within an error OB4

S7 counter

Number512

Retentivity

— adjustableYes

— presetZ 0 to Z 7

Counting range

— can be setYes

— lower limit0

— upper limit999

IEC counter

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

S7 timer

Number512

Retentivity

— adjustableYes

— presetNo retentivity

Time range

— lower limit10 ms

— upper limit9 990 s

IEC timer

presentYes

TypeSFB

NumberUnlimited (limited only by RAM capacity)

Data areas and their retentivity

Retentive data area (incl. timers, counters, flags), max.256 kbyte

Flag

Size, max.4 096 byte

Retentivity availableYes; From MB 0 to MB 4 095

Retentivity presetMB 0 to MB 15

Number of clock memories8; 1 memory byte

Data blocks

Retentivity adjustableYes; via non-retain property on DB

Retentivity presetYes

Local data

per priority class, max.32 768 byte; Max. 2048 bytes per block

I/O address area

Inputs8 192 byte

Outputs8 192 byte

of which distributed

— Inputs8 192 byte

— Outputs8 192 byte

Process image

Inputs8 192 byte

Outputs8 192 byte

Inputs, adjustable8 192 byte

Outputs, adjustable8 192 byte

Inputs, default256 byte

Outputs, default256 byte

Subprocess images

Number of subprocess images, max.1; With PROFINET IO, the length of the user data is limited to 1600 bytes

Digital channels

Inputs65 536

— of which central1 024

Outputs65 536

— of which central1 024

Analog channels

Inputs4 096

— of which central256

Outputs4 096

— of which central256

Hardware configuration

Number of expansion units, max.3

Number of DP masters

integrated1

via CP4

Number of operable FMs and CPs (recommended)

FM8

CP, PtP8

CP, LAN10

Rack

Racks, max.4

Modules per rack, max.8

Clock

Hardware clock (real-time)Yes

retentive and synchronizableYes

Backup time6 wk; At 40 °C ambient temperature

Deviation per day, max.10 s; Typ.: 2 s

Behavior of the clock following POWER-ONClock continues running after POWER OFF

Behavior of the clock following expiry of backup periodthe clock continues at the time of day it had when power was switched off

Operating hours counter

Number4

Number/Number range0 to 3

Range of values0 to 2^31 hours (when using SFC 101)

Granularity1 h

retentiveYes; Must be restarted at each restart

Clock synchronization

supportedYes

to MPI, masterYes

on MPI, deviceYes

to DP, masterYes; With DP slave only slave clock

on DP, deviceYes

in AS, masterYes

in AS, deviceYes

on Ethernet via NTPYes; As client

Digital inputs

Number of digital inputs0

Digital outputs

Number of digital outputs0

Analog inputs

Number of analog inputs0

Interfaces

Number of PROFINET interfaces1; 2 ports (switch) RJ45

Number of RS 485 interfaces1; Combined MPI / PROFIBUS DP

Number of RS 422 interfaces0

1. Interface

Interface typeIntegrated RS 485 interface

IsolatedYes

Interface types

RS 485Yes

Output current of the interface, max.200 mA

Protocols

MPIYes

PROFIBUS DP masterYes

PROFIBUS DP deviceYes

Point-to-point connectionNo

MPI

Transmission rate, max.12 Mbit/s

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationYes

— S7 basic communicationYes

— S7 communicationYes

— S7 communication, as clientNo; but via CP and loadable FB

— S7 communication, as serverYes

PROFIBUS DP master

Transmission rate, max.12 Mbit/s

max. number of DP devices124

Services

— PG/OP communicationYes

— RoutingYes

— Global data communicationNo

— S7 basic communicationYes; I blocks only

— S7 communicationYes

— S7 communication, as clientNo

— S7 communication, as serverYes

— EquidistanceYes

— Isochronous modeYes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO

— SYNC/FREEZEYes

— activation/deactivation of DP devicesYes

— max. number of DP devices that can be activated/deactivated at the same time8

— Direct data exchange (slave-to-slave communication)Yes; as subscriber

— DPV1Yes

Address area

— Inputs, max.8 kbyte

— Outputs, max.8 kbyte

User data per DP device

— Inputs, max.244 byte

— Outputs, max.244 byte

PROFIBUS DP device

Transmission rate, max.12 Mbit/s

automatic baud rate searchYes; only with passive interface

Address area, max.32

User data per address area, max.32 byte

Services

— PG/OP communicationYes

— RoutingYes; Only with active interface

— Global data communicationNo

— S7 basic communicationNo

— S7 communicationYes

— S7 communication, as clientNo

— S7 communication, as serverYes; Connection configured on one side only

— Direct data exchange (slave-to-slave communication)Yes

— DPV1No

Transfer memory

— Inputs244 byte

— Outputs244 byte

2. Interface

Interface typePROFINET

IsolatedYes

automatic detection of transmission rateYes; 10/100 Mbit/s

AutonegotiationYes

AutocrossingYes

Change of IP address at runtime, supportedYes

Interface types

RJ 45 (Ethernet)Yes

Number of ports2

integrated switchYes

Protocols

MPINo

PROFINET IO ControllerYes; Also simultaneously with IO-Device functionality

PROFINET IO deviceYes; Also simultaneously with IO Controller functionality

PROFINET CBAYes

PROFIBUS DP masterNo

PROFIBUS DP deviceNo

Open IE communicationYes; Via TCP/IP, ISO on TCP, and UDP

Web serverYes

Media redundancyYes

PROFINET IO Controller

Transmission rate, max.100 Mbit/s

Services

— PG/OP communicationYes

— RoutingYes

— S7 communicationYes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32

— Isochronous modeYes; OB 61; isochronous mode can only be used alternatively on PROFIBUS DP or PROFINET IO

— IRTYes

— Shared deviceYes

— Prioritized startupYes

— Number of IO devices with prioritized startup, max.32

— Number of connectable IO Devices, max.128

— Of which IO devices with IRT, max.64

— of which in line, max.64

— Number of IO Devices with IRT and the option "high flexibility"128

— of which in line, max.61

— Number of connectable IO Devices for RT, max.128

— of which in line, max.128

— Activation/deactivation of IO DevicesYes

— Number of IO Devices that can be simultaneously activated/deactivated, max.8

— IO Devices changing during operation (partner ports), supportedYes

— Number of IO Devices per tool, max.8

— Device replacement without swap mediumYes

— Send cycles250 μs, 500 μs,1 ms; 2 ms, 4 ms (not in the case of IRT with "high flexibility" option)

— Updating time250 µs to 512 ms (depending on the operating mode, see Manual "S7-300 CPU 31xC and CPU 31x, technical Data" for more details)

Address area

— Inputs, max.8 kbyte

— Outputs, max.8 kbyte

— User data consistency, max.1 024 byte

Services

— PG/OP communicationYes

— RoutingYes

— S7 communicationYes; with loadable FBs, max. configurable connections: 16, max. number of instances: 32

— Isochronous modeNo

— IRTYes

— PROFIenergyYes; With SFB 73 / 74 prepared for loadable PROFIenergy standard FB for I-Device

— Shared deviceYes

— Number of IO Controllers with shared device, max.2

Transfer memory

— Inputs, max.1 440 byte; Per IO Controller with shared device

— Outputs, max.1 440 byte; Per IO Controller with shared device

Submodules

— Number, max.64

— User data per submodule, max.1 024 byte

PROFINET CBA

acyclic transmissionYes

cyclic transmissionYes

Open IE communication

Number of connections, max.16

Local port numbers used at the system end0, 20, 21, 23, 25, 80, 102, 135, 161, 443, 8080, 34962, 34963, 34964, 65532, 65533, 65534, 65535

Keep-alive function, supportedYes

Protocols

PROFIsafeNo

Media redundancy

— Switchover time on line break, typ.200 ms; PROFINET MRP

— Number of stations in the ring, max.50

Open IE communication

TCP/IPYes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.16

— Data length for connection type 01H, max.1 460 byte

— Data length for connection type 11H, max.32 768 byte

— several passive connections per port, supportedYes

ISO-on-TCP (RFC1006)Yes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.16

— Data length, max.32 768 byte

UDPYes; via integrated PROFINET interface and loadable FBs

— Number of connections, max.16

— Data length, max.1 472 byte

Web server

supportedYes

User-defined websitesYes

Number of HTTP clients5

Communication functions

PG/OP communicationYes

Data record routingYes

Global data communication

supportedYes

Number of GD loops, max.8

Number of GD packets, max.8

Number of GD packets, transmitter, max.8

Number of GD packets, receiver, max.8

Size of GD packets, max.22 byte

Size of GD packet (of which consistent), max.22 byte

S7 basic communication

supportedYes

User data per job, max.76 byte

User data per job (of which consistent), max.76 byte; 76 bytes (with X_SEND or X_RCV); 64 bytes (with X_PUT or X_GET as server)

S7 communication

supportedYes

as serverYes

as clientYes; via integrated PROFINET interface and loadable FB or via CP and loadable FB

User data per job, max.See online help of STEP 7 (shared parameters of the SFBs/FBs and of the SFCs/FCs of S7 Communication)

S5 compatible communication

supportedYes; via CP and loadable FC

PROFINET CBA (at set setpoint communication load)

Setpoint for the CPU communication load50 %

Number of remote interconnection partners32

number of master/device functions30

total of all master/device connections1 000

data length of all incoming master/device connections, max.4 000 byte

data length of all outgoing master/device connections, max.4 000 byte

Number of device-internal and PROFIBUS interconnections500

Data length of device-internal und PROFIBUS interconnections, max.4 000 byte

Data length per connection, max.1 400 byte

Remote interconnections with cyclic transmission

— Transmission frequency: Transmission interval, min.10 ms

— Number of incoming interconnections200

— Number of outgoing interconnections200

— Data length of all incoming interconnections, max.2 000 byte

— Data length of all outgoing interconnections, max.2 000 byte

— Data length per connection, max.450 byte

HMI variables via PROFINET (acyclic)

— Number of stations that can log on for HMI variables (PN OPC/iMap)3; 2x PN OPC/1x iMap

— HMI variable updating500 ms

— Number of HMI variables200

— Data length of all HMI variables, max.2 000 byte

PROFIBUS proxy functionality

— supportedYes

— Number of linked PROFIBUS devices16

— Data length per connection, max.240 byte; Slave-dependent

Number of connections

overall32

usable for PG communication31

— reserved for PG communication1

— adjustable for PG communication, min.1

— adjustable for PG communication, max.31

usable for OP communication31

— reserved for OP communication1

— adjustable for OP communication, min.1

— adjustable for OP communication, max.31

usable for S7 basic communication30

— reserved for S7 basic communication0

— adjustable for S7 basic communication, min.0

— adjustable for S7 basic communication, max.30

usable for S7 communication16

— reserved for S7 communication0

— adjustable for S7 communication, min.0

— adjustable for S7 communication, max.16

total number of instances, max.32

usable for routingX1 as MPI: max. 10; X1 as DP master: max. 24; X1 as DP slave (active): max. 14; X2 as PROFINET: 24 max.

S7 message functions

Number of login stations for message functions, max.32; Depending on the configured connections for PG/OP and S7 basic communication

Process diagnostic messagesYes

simultaneously active Alarm_S blocks, max.300

Test commissioning functions

Status blockYes; Up to 2 simultaneously

Single stepYes

Number of breakpoints4

Status/control

Status/control variableYes

VariablesInputs, outputs, memory bits, DB, times, counters

Number of variables, max.30

— of which status variables, max.30

— of which control variables, max.14

Forcing

ForcingYes

Forcing, variablesInputs, outputs

Number of variables, max.10

Diagnostic buffer

presentYes

Number of entries, max.500

— adjustableNo

— of which powerfail-proof100; Only the last 100 entries are retained

Number of entries readable in RUN, max.499

— can be setYes; From 10 to 499

— preset10

Service data

Can be read outYes

Ambient temperature during operation

min.0 °C

max.60 °C

Configuration software

STEP 7Yes; V5.5 or higher

Programming

Command setsee instruction list

Nesting levels8

System functions (SFC)see instruction list

System function blocks (SFB)see instruction list

Programming language

— LADYes

— FBDYes

— STLYes

— SCLYes

— CFCYes

— GRAPHYes

— HiGraph®Yes

Know-how protection

User program protection/password protectionYes

Block encryptionYes; With S7 block Privacy

Dimensions

Width40 mm

Height125 mm

Depth130 mm

Weights

Weight, approx.340 g

Accessories 5

Genuine accessories that can be used with the Siemens 6ES7317-2EK14-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7953-8LP31-0AA0	Aksesuar · Memory card
6ES7392-1AM00-0AA0	Aksesuar · Connection plug
6ES7392-1BM01-0AA0	Aksesuar · Connection plug
9LF1110-6DA13-2AB1	Servis · Service Card
9TF6276-2XA11-1AL4	Servis
