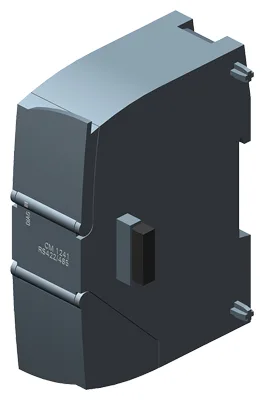

Siemens 6ES7241-1CH32-0XB0
SIMATIC S7-1200, Communication module CM 1241, RS422/485, 9-pole D-sub (socket) supports Freeport
Product type designationCM 1241 RS 422 / 485
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Current consumption, max.220 mA; From backplane bus 5 V DC
Power loss, typ.1.1 W
About This Product
SIMATIC S7-1200, Communication module CM 1241, RS422/485, 9-pole D-sub (socket) supports Freeport
Siemens 6ES7241-1CH32-0XB0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationCM 1241 RS 422 / 485
Supply voltage
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption, max.220 mA; From backplane bus 5 V DC
Power loss
Power loss, typ.1.1 W
Interfaces
Interfaces/bus typeRS 422 / 485 (X.27)
Number of interfaces1
Point-to-point connection
Cable length, max.1 000 m
Integrated protocol driver
— FreeportYes
— ASCIIYes; Available as library function
— Modbus RTU masterYes
— Modbus RTU deviceYes
— USSYes; Available as library function
Freeport
— Telegram length, max.1 kbyte
— Bits per character7 or 8
— Number of stop bits1 (Standard), 2
— ParityNo parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0)
3964 (R)
— Telegram length, max.1 kbyte
— Bits per character7 or 8
— Number of stop bits1 (Standard), 2
— ParityNo parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0)
Modbus RTU master
— Address area1 through 49 999 (Standard Modbus addressing)
— max. number of devices247; slave numbers 1 through 247, per MODBUS network segment maximum 32 devices, additional repeaters needed to expand the network to maximum configuration
Modbus RTU device
— Address area1 through 49 999 (Standard Modbus addressing)
Interrupts/diagnostics/status information
Diagnostics functionYes
Diagnostics indication LED
for status of the outputsYes
Degree and class of protection
IP degree of protectionIP20
Standards, approvals, certificates
CE markYes
CSA approvalYes
UL approvalYes
cULusYes
FM approvalYes
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalYes
Free fall
Fall height, max.0.3 m; five times, in product package
Ambient temperature during operation
min.-20 °C
max.60 °C
horizontal installation, min.-20 °C
horizontal installation, max.60 °C
vertical installation, min.-20 °C
vertical installation, max.50 °C
permissible temperature change5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation
min.-40 °C
max.70 °C
Air pressure acc. to IEC 60068-2-13
Operation, min.795 hPa
Operation, max.1 080 hPa
Storage/transport, min.660 hPa
Storage/transport, max.1 080 hPa
Relative humidity
Operation at 25 ℃ without condensation, max.95 %

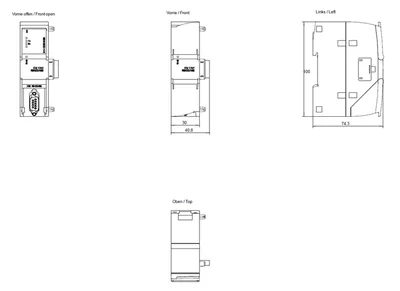

Dimensions
Width30 mm
Height100 mm
Depth75 mm
Weights
Weight, approx.155 g
