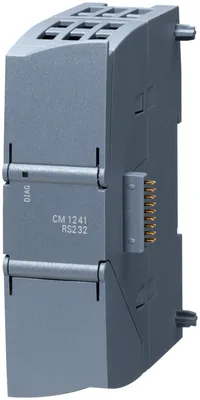

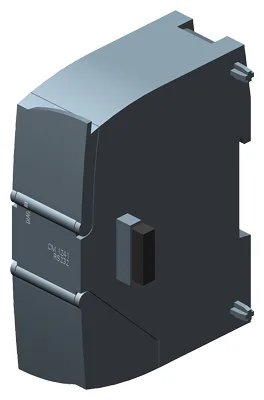

Siemens 6ES7241-1AH32-0XB0

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6ES7241-1AH32-0XB0

SIMATIC S7-1200, Communication module CM 1241, RS232, 9-pole D-sub (pin), supports Freeport

SiemensMFR # 6ES7241-1AH32-0XB0SKU # CEY-937FC780AEA4
Product type designationCM 1241 RS 232
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Current consumption, max.200 mA; From backplane bus 5 V DC
Power loss, typ.1.1 W
Share
Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200, Communication module CM 1241, RS232, 9-pole D-sub (pin), supports Freeport

Siemens 6ES7241-1AH32-0XB0

  • Genuine, certified Siemens product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

General information
Product type designationCM 1241 RS 232
Supply voltage
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Input current
Current consumption, max.200 mA; From backplane bus 5 V DC
Power loss
Power loss, typ.1.1 W
Interfaces
Interfaces/bus typeRS 232C (V.24)
Number of interfaces1
Point-to-point connection
Cable length, max.10 m
Integrated protocol driver
— FreeportYes
— ASCIIYes; Available as library function
— Modbus RTU masterYes
— Modbus RTU deviceYes
Freeport
— Telegram length, max.1 kbyte
— Bits per character7 or 8
— Number of stop bits1 (Standard), 2
— ParityNo parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0)
3964 (R)
— Telegram length, max.1 kbyte
— Bits per character7 or 8
— Number of stop bits1 (Standard), 2
— ParityNo parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0)
Modbus RTU master
— Address area1 through 49 999 (Standard Modbus addressing)
— max. number of devices247; slave numbers 1 through 247, per MODBUS network segment maximum 32 devices, additional repeaters needed to expand the network to maximum configuration
Modbus RTU device
— Address area1 through 49 999 (Standard Modbus addressing)
Interrupts/diagnostics/status information
Diagnostics functionYes
Diagnostics indication LED
for status of the outputsYes
Degree and class of protection
IP degree of protectionIP20
Standards, approvals, certificates
CE markYes
CSA approvalYes
UL approvalYes
cULusYes
FM approvalYes
RCM (formerly C-TICK)Yes
KC approvalYes
Marine approvalYes
Free fall
Fall height, max.0.3 m; five times, in product package
Ambient temperature during operation
min.-20 °C
max.60 °C
horizontal installation, min.-20 °C
horizontal installation, max.60 °C
vertical installation, min.-20 °C
vertical installation, max.50 °C
permissible temperature change5°C to 55°C, 3°C / minute
Ambient temperature during storage/transportation
min.-40 °C
max.70 °C
Air pressure acc. to IEC 60068-2-13
Operation, min.795 hPa
Operation, max.1 080 hPa
Storage/transport, min.660 hPa
Storage/transport, max.1 080 hPa
Relative humidity
Operation at 25 ℃ without condensation, max.95 %

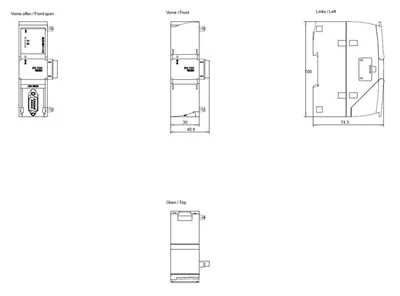

Dimensions
Width30 mm
Height100 mm
Depth75 mm
Weights
Weight, approx.150 g
