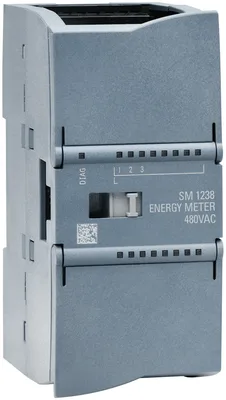

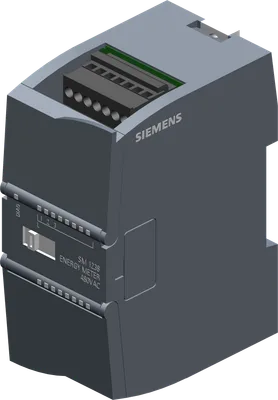

Siemens 6ES7238-5XA32-0XB0

SIMATIC S7-1200, Analog input, SM 1238 Energy Meter 480 V AC, power measurement module for data acquisition in 1- and 3-phase supply systems (TN, TT) up to 480 V AC; Current range: 1 A, 5A; acquisition of voltage, current, phase angles, power, energy values, frequencies; Channel diagnostics

SiemensMFR # 6ES7238-5XA32-0XB0SKU # CEY-937FC77F99D5

Product type designationSM 1238, AI energy meter 480 V AC

HW functional statusFrom FS02

Firmware versionV2.0.1

Voltage measurementYes

— with voltage transformerYes

Current measurementYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7238-5XA32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1238, AI energy meter 480 V AC

HW functional statusFrom FS02

Firmware versionV2.0.1

Product function

Voltage measurementYes

— with voltage transformerYes

Current measurementYes

— without current transformerNo

— with current transformerYes

Energy measurementYes

Frequency measurementYes

Power measurementYes

Active power measurementYes

Reactive power measurementYes

I&M dataYes; I&M 0

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV13 SP1

Operating mode

cyclic measurementYes

acyclic measurementYes

Acyclic measured value accessYes

Fixed measured value setsYes

Freely definable measured value setsNo

CiR - Configuration in RUN

Reparameterization possible in RUNYes

Calibration possible in RUNYes

Installation type/mounting

Mounting positionHorizontal, vertical

Supply voltage

Design of the power supplyfrom CPU

Type of supply voltageDC

Input current

Current consumption, max.180 mA

Power loss

Power loss, typ.0.75 W

Address space per module

Address space per module, max.124 byte; 112 byte input / 12 byte output

Operating hours counter

presentYes

Analog inputs

Cycle time (all channels), typ.50 ms; Time for consistent update of all measured and calculated values (cyclic und acyclic data)

Alarms

Diagnostic alarmYes

Limit value alarmYes

Hardware interruptNo

Diagnostics indication LED

Monitoring of the supply voltage (PWR-LED)Yes

Channel status displayYes; green LED

for channel diagnosticsYes; red Fn LED

for module diagnosticsYes; green/red DIAG LED

Measuring functions

Measuring procedure for voltage measurementTRMS

Measuring procedure for current measurementTRMS

Type of measured value acquisitionseamless

Curve shape of voltageSinusoidal or distorted

Buffering of measured variablesYes

Parameter length74 byte

Bandwidth of measured value acquisition2 kHz; Harmonics: 39 / 50 Hz, 32 / 60 Hz

Measuring range

— Frequency measurement, min.45 Hz

— Frequency measurement, max.65 Hz

Measuring inputs for voltage

— Measurable line voltage between phase and neutral conductor277 V

— Measurable line voltage between the line conductors480 V

— Measurable line voltage between phase and neutral conductor, min.0 V

— Measurable line voltage between phase and neutral conductor, max.293 V

— Measurable line voltage between the line conductors, min.0 V

— Measurable line voltage between the line conductors, max.508 V

— Internal resistance line conductor and neutral conductor3.4 MΩ

— Power consumption per phase20 mW

— Impulse voltage resistance 1,2/50µs1 kV

— Measurement category for voltage measurement in accordance with IEC 61010-2-030CAT II; CAT III in case of guaranteed protection level of 1.5 kV

Measuring inputs for current

— measurable relative current (AC), min.1 %; Relative to the secondary rated current 5 A

— measurable relative current (AC), max.100 %; Relative to the secondary rated current 5 A

— Continuous current with AC, maximum permissible5 A

— Apparent power consumption per phase for measuring range 5 A0.6 V·A

— Rated value short-time withstand current restricted to 1 s100 A

— Input resistance measuring range 0 to 5 A25 mΩ; At the terminal

— Surge strength10 A; for 1 minute

— Zero point suppressionParameterizable: 2 ... 250 mA, default 50 mA

Accuracy class according to IEC 61557-12

— Measured variable voltage0,2

— Measured variable current0,2

— Measured variable apparent power0.5

— Measured variable active power0.5

— Measured variable reactive power1

— Measured variable power factor0.5

— Measured variable active energy0.5

— Measured variable reactive energy1

— Measured variable neutral current0.5; calculated

— Measured variable phase angle±1 °; not covered by IEC 61557-12

— Measured variable frequency0.05

Potential separation channels

between the channels and backplane busYes; 3 700V AC (type test) CAT III

Isolation

Isolation tested with2 300V AC for 1 min. (type test)

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Ambient temperature during operation

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

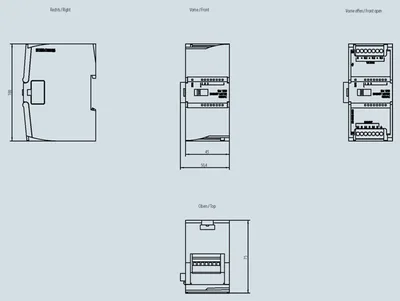

Dimensions

Width45 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.165 g

Data for selecting a current transformer

Burden power current transformer x/1A, min.As a function of cable length and cross section, see device manual

Burden power current transformer x/5A, min.As a function of cable length and cross section, see device manual
