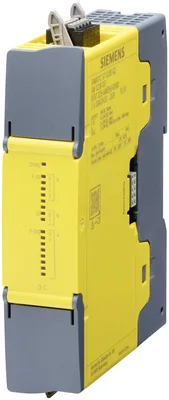

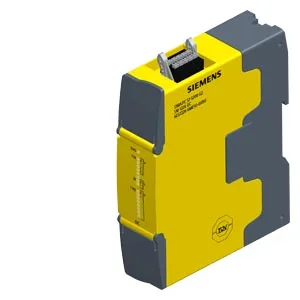

Siemens 6ES7226-6ME50-0XB0

SIMATIC S7-1200 G2, digital I/O, SM 1226, F-DI 4x / F-DQ 2x 2A PPM / DI 2x, 24 V DC, up to PL e (ISO 13849-1) / SIL3 (IEC 61508)

SiemensMFR # 6ES7226-6ME50-0XB0SKU # YLSS3JDDDOTEXQ2

HW functional status01

Firmware versionV1.0.0

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200 G2, digital I/O, SM 1226, F-DI 4x / F-DQ 2x 2A PPM / DI 2x, 24 V DC, up to PL e (ISO 13849-1) / SIL3 (IEC 61508)

Siemens 6ES7226-6ME50-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1226, F-DI 4x 24 V DC, F-DQ 2x 24 V DC, DI 2x 24 V DC

HW functional status01

Firmware versionV1.0.0

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Input current

from backplane bus 5 V DC, max.80 mA

Digital inputs

from load voltage L+ (without load), max.42 mA; 1L+ plus 6 mA / input used plus any VS0 to VS3 current used

Digital outputs

from load voltage L+, max.45 mA; 2L+ plus load current for all P-switch outputs

Encoder supply

Number of outputs4; Vs0 - Vs3

24 V encoder supply

Short-circuit protectionYes; per channel, electronic

Output current, max.0.5 A; per sensor supply; 1.0 A total sensor supplies

Power loss

Power loss, typ.6 W

Digital inputs

Number of digital inputs6; 4 fail-safe inputs: 2 (1oo2), 4 (1oo1), or a mix; 2 standard inputs

in groups of6

Sourcing/sinking inputNo

Input characteristic curve in accordance with IEC 61131, type 1Yes; Current-sinking

Input voltage

Rated value (DC)24 V

for signal "0"-3 to +5V

for signal "1"+15 to +30 V

Input current

for signal "0", max. (permissible quiescent current)0.5 mA

for signal "1", min.2.5 mA

for signal "1", typ.4 mA; 6 mA maximum

for standard inputs

— parameterizableYes; Fail-safe: 0.8 / 1.6 / 3.2 / 6.4 / and 12.8 ms (selectable individually) Standard: 0.2 / 0.4 / 0.8 / 1.6 / 3.2 / 6.4 / and 12.8 ms (selectable together)

Cable length

shielded, max.500 m

unshielded, max.300 m

Digital outputs

Number of digital outputs2

in groups of2

Short-circuit protectionYes; per channel, electronic

Response threshold, typ.10 A

Open-circuit detectionYes; per channel, only detects when output is off with PM load that allows small negative current

Overload protectionYes; per channel

Response threshold, typ.4 A; measured at P-switch for more than 0.5 s

Limitation of inductive shutdown voltage toTyp. -74 V (typ. -26 V P-switch; typ. +48 V M-switch)

Controlling a digital inputYes; Only permitted in PP mode, not with PM mode

Switching capacity of the outputs

on lamp load, max.10 W

Output voltage

Rated value (DC)24 V

for signal "1", min.2L+ (-2.0 V); P-switch: 2L+ (-1.5 V); M-switch: 0.5 V

Output current

for signal "1" rated value2 A

for signal "1" permissible range, max.10 mA to 2 A; 4 A total for all outputs

for signal "0" residual current, max.0.5 mA; P-switch or M-switch

Parallel switching of two outputs

for upratingNo

for redundant control of a loadNo

Switching frequency

with resistive load, max.30 Hz

with inductive load, max.0.1 Hz

on lamp load, max.10 Hz

Cable length

shielded, max.500 m

unshielded, max.30 m for hardware version FS-01; 10 m for hardware revision FS-01 when used in burner applications related to EN 298

Interrupts/diagnostics/status information

Diagnostics functionYes; available for the module and failsafe I/O only; not supported for standard inputs

Diagnostics indication LED

DIAG LEDYes

for status of the inputsYes

for status of the outputsYes

Potential separation digital inputs

between the channelsNo

Number of potential groups1

between the channels and backplane busYes

Potential separation digital outputs

between the channelsNo

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

CE markYes

cULusYes

RCM (formerly C-TICK)Yes

KC approvalYes

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1PLd (F-DI single-channel, F-DQ with Dark test disabled), PLe (F-DI two-channel, F-DQ including Dark test disabled for 48 hours)

Category according to ISO 13849-1Cat. 3 (F-DI single-channel, F-DQ with Dark test disabled), Cat. 4 (F-DI two-channel, F-DQ including Dark test disabled for 48 hours)

SIL acc. to IEC 61508SIL 2 (F-DI single-channel, F-DQ with Dark test disabled), SIL 3 (F-DI two-channel, F-DQ including Dark test disabled for 48 hours)

Probability of failure (for service life of 20 years and repair time of 100 hours)

— Low demand mode: PFDavg in accordance with SIL2< 2.00E-04 F-DI; < 2.00E-04 F-DQ

— Low demand mode: PFDavg in accordance with SIL3< 3.00E-05 F-DI; < 3.00E-05 F-DQ

— High demand/continuous mode: PFH in accordance with SIL2< 5.00E-09 1/h F-DI; < 6.00E-09 1/h F-DQ

— High demand/continuous mode: PFH in accordance with SIL3< 5.00E-10 1/h F-DI; < 5.00E-09 1/h F-DQ

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

horizontal installation, min.0 °C; No condensation

horizontal installation, max.60 °C; at max. specification

vertical installation, min.0 °C; No condensation

vertical installation, max.50 °C; at max. specification

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Operation, min.540 hPa

Operation, max.1 140 hPa

Storage/transport, min.540 hPa

Storage/transport, max.1 140 hPa

Altitude during operation relating to sea level

Installation altitude, min.-1 000 m

Installation altitude, max.5 000 m

Ambient air temperature-barometric pressure-altitudeFor altitudes above 2 000 m, the maximum permissible ambient temperature must be derated: >2 000 m 0.9 factor, >3 000 m 0.8 factor, >4 000 m 0.7 factor. 5 000 m is max allowed altitude.

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Mechanics/material

PlasticYes

Dimensions

Width30 mm

Height125 mm

Depth100 mm

Weights

Weight, approx.180 g
