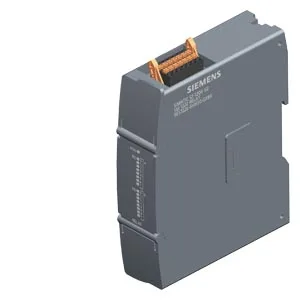

Siemens 6ES7222-5HH50-0XB0

SIMATIC S7-1200 G2: SM 1222 digital output, 16 relays; outputs: 16x DO, relay 2 A

SiemensMFR # 6ES7222-5HH50-0XB0SKU # YLSCMXDRXAOPDBN

Product type designationSM 1222, DQ 16x relay/2 A

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.115 mA

from load voltage L+, max.9 mA; per relay coil
