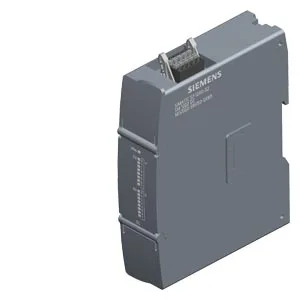

Siemens 6ES7222-5BH50-0XB0

SIMATIC S7-1200 G2: SM 1222 digital output, 16 DO; outputs: 16x DO, 24 V DC 0.5 A, sourcing transistor

SiemensMFR # 6ES7222-5BH50-0XB0SKU # YLSEOOC2BSKH93J

Product type designationSM 1222, DQ 16x 24 V DC/0.5 A

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.120 mA

from load voltage L+, max.45 mA

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200 G2: SM 1222 digital output, 16 DO; outputs: 16x DO, 24 V DC 0.5 A, sourcing transistor

Siemens 6ES7222-5BH50-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1222, DQ 16x 24 V DC/0.5 A

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from backplane bus 5 V DC, max.120 mA

Digital outputs

from load voltage L+, max.45 mA

Power loss

Power loss, typ.3.5 W

Digital outputs

Number of digital outputs16

in groups of8

Short-circuit protectionNo; to be provided externally

Limitation of inductive shutdown voltage totyp. (L+) -40 V, 1 W dissipation

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.5 W

Output voltage

Rated value (DC)24 V

for signal "0", max.0.1 V; with 10 kOhm load

for signal "1", min.L+ (-0.5 V)

Output current

for signal "1" rated value0.5 A

for signal "0" residual current, max.10 µA

Output delay with resistive load

"0" to "1", max.50 µs

"1" to "0", max.200 µs

horizontal installation

— up to 50 °C, max.4 A; Current per mass (Group of 8)

Cable length

shielded, max.500 m

unshielded, max.150 m

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes

Diagnoses

Monitoring the supply voltageYes

Diagnostics indication LED

DIAG LEDYes

for status of the outputsYes

Potential separation digital outputs

between the channels, in groups of8

between the channels and backplane bus707 V DC (type test)

Isolation

Isolation tested with707 V DC (type test)

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

Siemens Eco Profile (SEP)Siemens EcoTech

CE markYes

CSA approvalNo

UL approvalYes

cULusYes

FM approvalNo

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalNo

Ecological footprint

environmental product declarationYes; type 2 acc. to ISO 14021

Global warming potential

— global warming potential, (total) [CO2 eq]40.3 kg

— global warming potential, (during production) [CO2 eq]7.79 kg

— global warming potential, (during operation) [CO2 eq]32.5 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.089 kg

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

horizontal installation, min.-20 °C

horizontal installation, max.60 °C; at max. voltages and max. specification

vertical installation, min.-20 °C

vertical installation, max.50 °C; at max. voltages and max. specification

permissible temperature change5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Operation, min.540 hPa

Operation, max.1 140 hPa

Storage/transport, min.540 hPa

Storage/transport, max.1 140 hPa

Altitude during operation relating to sea level

Installation altitude, min.-1 000 m

Installation altitude, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Vibrations

Vibration resistance during operation acc. to IEC 60068-2-63.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz

Operation, tested according to IEC 60068-2-6Yes

Shock testing

tested according to IEC 60068-2-27Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms

Pollutant concentrations

SO2 at RH < 60% without condensationS02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free

Connection method

required front connectorNo

Mechanics/material

PlasticYes

Dimensions

Width30 mm

Height125 mm

Depth100 mm

Weights

Weight, approx.173 g
