How can I get a price quote for Siemens 6ES7222-1XF32-0XB0?

You can request a fast quote for Siemens 6ES7222-1XF32-0XB0 from Yılsa Engineering. Reference part number CEY-8EF3B02CE26E. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7222-1XF32-0XB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7222-1XF32-0XB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7222-1XF32-0XB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

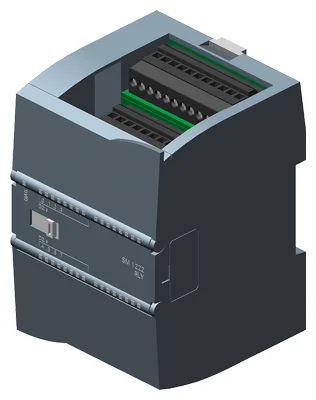

Siemens 6ES7222-1XF32-0XB0

SIMATIC S7-1200, Digital output SM 1222, 8 DO, Relay Changeover contact

SiemensMFR # 6ES7222-1XF32-0XB0SKU # CEY-8EF3B02CE26E

Product type designationSM 1222, DQ 8x relay/2 A

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.140 mA

from load voltage L+, max.16.7 mA/relay coil

Power loss, typ.5 W

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200, Digital output SM 1222, 8 DO, Relay Changeover contact

Siemens 6ES7222-1XF32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1222, DQ 8x relay/2 A

Supply voltage

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from backplane bus 5 V DC, max.140 mA

Digital outputs

from load voltage L+, max.16.7 mA/relay coil

Power loss

Power loss, typ.5 W

Digital outputs

Number of digital outputs8

in groups of1

Short-circuit protectionNo; to be provided externally

Switching capacity of the outputs

with resistive load, max.2 A

on lamp load, max.30 W with DC, 200 W with AC

Output voltage

Rated value (DC)5 V DC to 30 V DC

Rated value (AC)5 V AC to 250 V AC

Output current

for signal "1" rated value2 A

Output delay with resistive load

"0" to "1", max.10 ms

"1" to "0", max.10 ms

horizontal installation

— up to 50 °C, max.2 A; Current per mass

Relay outputs

Number of relay outputs8

Rated supply voltage of relay coil L+ (DC)24 V

Number of operating cycles, max.mechanically 10 million, at rated load voltage 100 000

Switching capacity of contacts

— with inductive load, max.2 A

— on lamp load, max.30 W with DC, 200 W with AC

— with resistive load, max.2 A

Cable length

shielded, max.500 m

unshielded, max.150 m

Alarms

Diagnostic alarmYes

Diagnostics indication LED

for status of the outputsYes

Potential separation digital outputs

between the channelsRelays

between the channels, in groups of1

between the channels and backplane bus1 500 V AC for 1 minute

Permissible potential difference

between different circuits750 V AC for 1 minute

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]68.6 kg

— global warming potential, (during production) [CO2 eq]8.16 kg

— global warming potential, (during operation) [CO2 eq]60.7 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.334 kg

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C; Number of simultaneously activated outputs: 4 (no adjacent points) at 60 °C horizontal or 50 °C vertical, 8 at 55 °C horizontal or 45 °C vertical

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

permissible temperature change5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Connection method

required front connectorYes

Mechanics/material

plasticYes

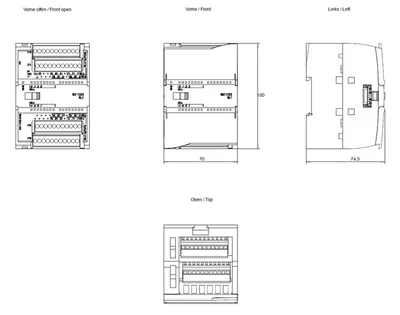

Dimensions

Width70 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.310 g

Accessories 7

Genuine accessories that can be used with the Siemens 6ES7222-1XF32-0XB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
3RQ4118-2AM00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
3RQ4118-1AM00	Aksesuar · SIRIUS 3RQ4 coupling relay, narrow design
6ES7291-1BB30-0XA0	Yedek parça · spare part
6ES7292-1AL40-0XA0	Yedek parça · spare part
6ES7212-1AE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
6ES7212-1BE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
6ES7212-1HE40-0XB0	Seçmeli zorunlu ürün · Central Processing Unit
