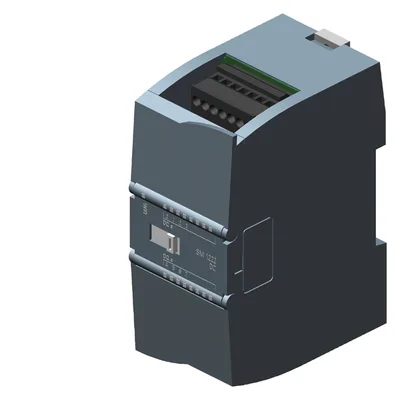

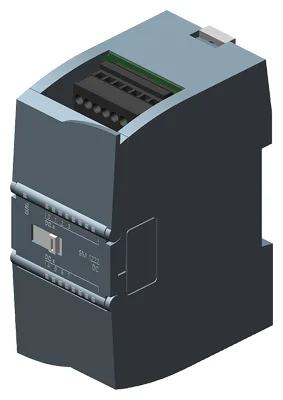

Siemens 6ES7222-1BF32-0XB0

SIMATIC S7-1200, Digital output SM 1222, 8 DO, 24 V DC, transistor 0.5 A

SiemensMFR # 6ES7222-1BF32-0XB0SKU # CEY-937FC7805DB0

Product type designationSM 1222, DQ 8x24 V DC/0.5 A

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

from backplane bus 5 V DC, max.120 mA

Power loss, typ.1.5 W

Number of digital outputs8

Have questions?Chat on WhatsApp

About This Product

SIMATIC S7-1200, Digital output SM 1222, 8 DO, 24 V DC, transistor 0.5 A

Siemens 6ES7222-1BF32-0XB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationSM 1222, DQ 8x24 V DC/0.5 A

Supply voltage

permissible range, lower limit (DC)20.4 V

permissible range, upper limit (DC)28.8 V

Input current

from backplane bus 5 V DC, max.120 mA

Power loss

Power loss, typ.1.5 W

Digital outputs

Number of digital outputs8

in groups of1

Short-circuit protectionNo; to be provided externally

Limitation of inductive shutdown voltage totyp. (L+) -48 V

Switching capacity of the outputs

with resistive load, max.0.5 A

on lamp load, max.5 W

Output voltage

Rated value (DC)24 V

for signal "0", max.0.1 V; with 10 kOhm load

for signal "1", min.20 V DC

Output current

for signal "1" rated value0.5 A

for signal "0" residual current, max.10 µA

Output delay with resistive load

"0" to "1", max.50 µs

"1" to "0", max.200 µs

horizontal installation

— up to 50 °C, max.4 A; Current per mass

Cable length

shielded, max.500 m

unshielded, max.150 m

Alarms

Diagnostic alarmYes

Diagnostics indication LED

for status of the outputsYes

Potential separation digital outputs

between the channels, in groups of1

between the channels and backplane bus500 V AC

Degree and class of protection

IP degree of protectionIP20

Standards, approvals, certificates

CE markYes

CSA approvalYes

UL approvalYes

cULusYes

FM approvalYes

RCM (formerly C-TICK)Yes

KC approvalYes

Marine approvalYes

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]68.6 kg

— global warming potential, (during production) [CO2 eq]8.16 kg

— global warming potential, (during operation) [CO2 eq]60.7 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.334 kg

Free fall

Fall height, max.0.3 m; five times, in product package

Ambient temperature during operation

min.-20 °C

max.60 °C

horizontal installation, min.-20 °C

horizontal installation, max.60 °C

vertical installation, min.-20 °C

vertical installation, max.50 °C

permissible temperature change5°C to 55°C, 3°C / minute

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Air pressure acc. to IEC 60068-2-13

Storage/transport, min.660 hPa

Storage/transport, max.1 080 hPa

Relative humidity

Operation at 25 ℃ without condensation, max.95 %

Connection method

required front connectorYes

Mechanics/material

PlasticYes

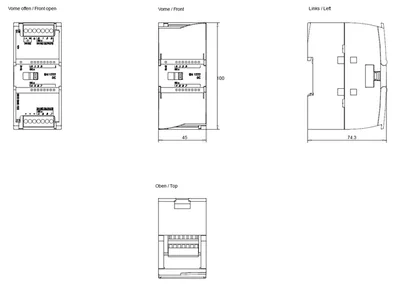

Dimensions

Width45 mm

Height100 mm

Depth75 mm

Weights

Weight, approx.180 g
