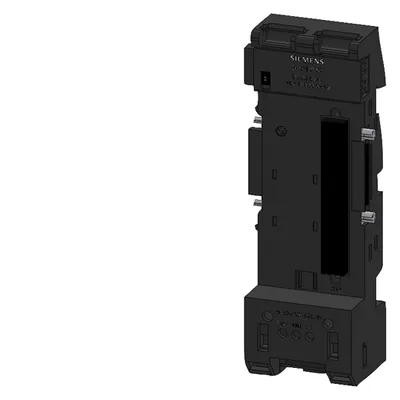

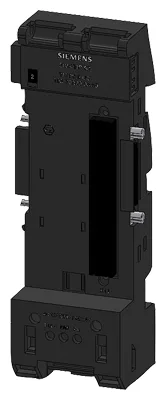

Siemens 6ES7193-7DB20-0AA0
SIMATIC, terminal module TM-PS-B for ET200iSP, in addition to TM-PS-A, for holding the redundant power supply module 120/230 V AC and 24 V DC, Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb
Product type designationTM-PS-B UC
Rack mountingNo
Front mountingYes
Rail mountingYes
Wall mounting/direct mountingNo
Type of supply voltageAC
About This Product
SIMATIC, terminal module TM-PS-B for ET200iSP, in addition to TM-PS-A, for holding the redundant power supply module 120/230 V AC and 24 V DC, Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb
Siemens 6ES7193-7DB20-0AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationTM-PS-B UC
Installation type/mounting
Rack mountingNo
Front mountingYes
Rail mountingYes
Wall mounting/direct mountingNo
Supply voltage
Type of supply voltageAC
permissible range, lower limit (AC)85 V
permissible range, upper limit (AC)264 V
Input current
At 50 Hz AC, max.6 A
At 60 Hz AC, max.6 A
Output voltage
Type of output voltageDC
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Output current
At DC, max.5 A
Slots
Number of slots1
Plug-in modules, analog I/ONo
Plug-in modules, digital I/ONo
Plug-in modules, function modules and technology modulesNo
Plug-in modules, communication modulesNo
Plug-in modules, CPUsNo
Plug-in modules, othersYes
Isolation
Isolation tested with2500 V AC between control supply voltages and all output voltages
Standards, approvals, certificates
CE markCE 0344
UKCA markDEKRA 21UKEX0032 Importer UK: Siemens plc Manchester M20 2UR
cULusLISTED E334384
FM approvalCLASSIFIED 3025852
Suitable for safety functionsYes
INMETRO certificateUL-BR 12.0077
Use in hazardous areas
ATEX markingII 2 G (1) G Ex eb [ia Ga/ib] IIC T4 Gb II 2 G (1) D Ex eb [ia IIIC Da] IIC T4 Gb I M2 Ex eb [ia/ib] I Mb
ATEX certificateKEMA 04 ATEX 2242
IECExIECEx KEM 05.0003
CCC Ex2020322310002881
Explosion protection category for gasATEX gas explosion protection, Zone 1
Explosion protection category for dustATEX dust explosion protection, Zone 21 always install in corresponding enclosure
associated equipment (Ex ia)No
associated equipment (Ex ib)No
Terminals
Conductor cross-section, min.0.5 mm²; note "Wiring rules for ET 200iSP"
Conductor cross-section, max.4 mm²

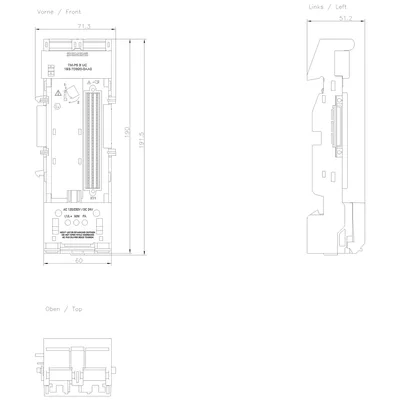

Dimensions
Width60 mm
Height190 mm
Depth52 mm
Weights
Weight, approx.230 g
