Siemens 6ES7193-7DA20-0AA0

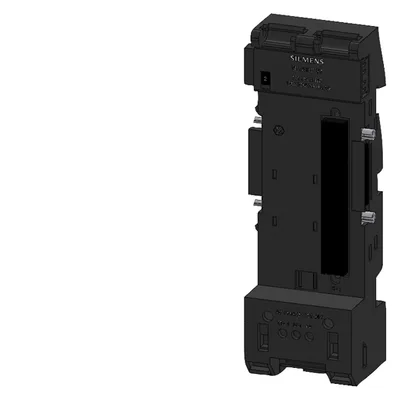

SIMATIC, terminal module TM-PS-A standard for ET200iSP, for holding the power supply module 120/230 V AC and 24 V DC, Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb
Product type designationTM-PS-A UC
Rack mountingNo
Front mountingYes
Rail mountingYes
Wall mounting/direct mountingNo
Type of supply voltageAC
About This Product
SIMATIC, terminal module TM-PS-A standard for ET200iSP, for holding the power supply module 120/230 V AC and 24 V DC, Ex eb [ia Ga/ib] IIC T4 Gb, Ex eb [ia IIIC Da] IIC T4 Gb, Ex eb [ia/ib] I Mb
Siemens 6ES7193-7DA20-0AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationTM-PS-A UC
Installation type/mounting
Rack mountingNo
Front mountingYes
Rail mountingYes
Wall mounting/direct mountingNo
Supply voltage
Type of supply voltageAC
permissible range, lower limit (AC)85 V
permissible range, upper limit (AC)264 V
Input current
At 50 Hz AC, max.6 A
At 60 Hz AC, max.6 A
Output voltage
Type of output voltageDC
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Output current
At DC, max.5 A
Slots
Number of slots1
Plug-in modules, analog I/ONo
Plug-in modules, digital I/ONo
Plug-in modules, function modules and technology modulesNo
Plug-in modules, communication modulesNo
Plug-in modules, CPUsNo
Plug-in modules, othersYes
Isolation
Isolation tested with2500 V AC between control supply voltages and all output voltages
Standards, approvals, certificates
CE markCE 0344
UKCA markDEKRA 21UKEX0032 Importer UK: Siemens plc Manchester M20 2UR
cULusLISTED E334384
FM approvalCLASSIFIED 3025852
Suitable for safety functionsYes
INMETRO certificateUL-BR 12.0077
Use in hazardous areas
ATEX markingII 2 G (1) G Ex eb [ia Ga/ib] IIC T4 Gb II 2 G (1) D Ex eb [ia IIIC Da] IIC T4 Gb I M2 Ex eb [ia/ib] I Mb
ATEX certificateKEMA 04 ATEX 2242
IECExIECEx KEM 05.0003
CCC Ex2020322310002881
Explosion protection category for gasATEX gas explosion protection, Zone 1
Explosion protection category for dustATEX dust explosion protection, Zone 21 always install in corresponding enclosure
associated equipment (Ex ia)No
associated equipment (Ex ib)No
Marine approval
Germanischer Lloyd (GL)Yes
American Bureau of Shipping (ABS)Yes
Bureau Veritas (BV)Yes
Det Norske Veritas (DNV)Yes
Terminals
Conductor cross-section, min.0.5 mm²; note "Wiring rules for ET 200iSP"
Conductor cross-section, max.4 mm²

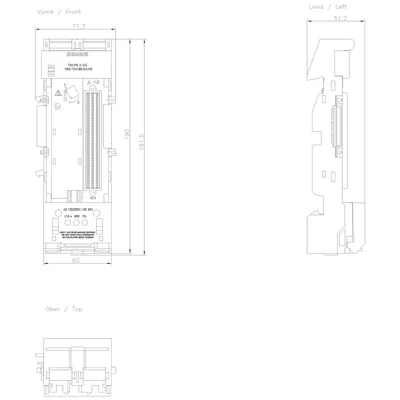

Dimensions
Width60 mm
Height190 mm
Depth52 mm
Weights
Weight, approx.230 g
