Siemens 6ES7193-7CB00-0AA0
SIMATIC, terminal module TM-RM/RM for ET200iSP, for two electronic modules, screw terminals, Ex db eb ib IIC T4 Gb, Ex db eb ib I Mb
Product type designationTM-RM/RM
Rack mountingNo
Front mountingYes
Rail mountingYes
Wall mounting/direct mountingNo
Type of supply voltageDC
About This Product
SIMATIC, terminal module TM-RM/RM for ET200iSP, for two electronic modules, screw terminals, Ex db eb ib IIC T4 Gb, Ex db eb ib I Mb
Siemens 6ES7193-7CB00-0AA0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationTM-RM/RM
Installation type/mounting
Rack mountingNo
Front mountingYes
Rail mountingYes
Wall mounting/direct mountingNo
Supply voltage
Type of supply voltageDC
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Input current
At DC, max.4 A
Output voltage
Type of output voltageDC
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
Output current
At DC, max.4 A
Slots
Number of slots2
Plug-in modules, analog I/ONo
Plug-in modules, digital I/OYes
Plug-in modules, function modules and technology modulesNo
Plug-in modules, communication modulesNo
Plug-in modules, CPUsNo
Plug-in modules, othersYes
Standards, approvals, certificates
CE markCE 0344
UKCA markDEKRA 21UKEX0031 Importer UK: Siemens plc Manchester M20 2UR
cULusLISTED E334384
FM approvalCLASSIFIED 3025852
Suitable for safety functionsNo
INMETRO certificateUL-BR 12.0079
reference designation according to IEC 81346-2 (2009)XX
Use in hazardous areas
ATEX markingsee ET 200iSP system
ATEX certificateKEMA 07 ATEX 0205
IECExIECEx KEM 07.0060
CCC Ex2020322310002992
Explosion protection category for gasATEX gas explosion protection, Zone 1
Explosion protection category for dustATEX dust explosion protection, Zone 21 always install in corresponding enclosure
associated equipment (Ex ia)No
associated equipment (Ex ib)Yes
Marine approval
Germanischer Lloyd (GL)Yes
American Bureau of Shipping (ABS)Yes
Bureau Veritas (BV)Yes
Det Norske Veritas (DNV)Yes
Terminals
Conductor cross-section, min.0.2 mm²
Conductor cross-section, max.2 mm²

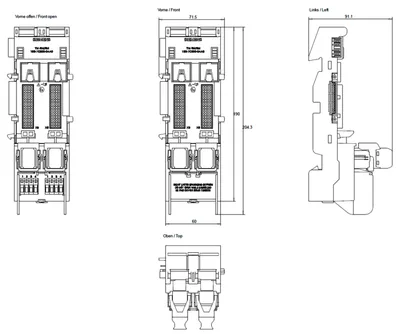

Dimensions
Width60 mm
Height190 mm
Depth52 mm
Weights
Weight, approx.340 g
