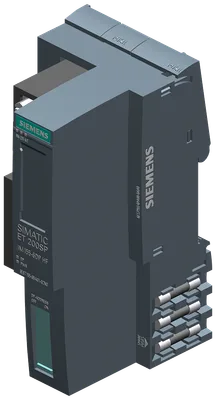

Siemens 6ES7155-6BA01-0CN0

SIMATIC ET 200SP, bundle PROFIBUS IM, IM 155-6DP HF, max. 32 I/O modules and 16 ET 200AL modules, multi hot swap, bundle consists of: interface module (6ES7155-6BU01-0CN0), server module (6ES7193-6PA00-0AA0), PROFIBUS plug (6ES7972-0BB70-0XA0); product phase-out planned – see SIOS 109989704

SiemensMFR # 6ES7155-6BA01-0CN0SKU # YLS9W9EXCXEVILY

Product type designationIM 155-6 DP HF

HW functional statusFrom FS02

Firmware versionV4.2

FW update possibleYes

I&M dataYes; I&M0 to I&M3

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7155-6BA01-0CN0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIM 155-6 DP HF

HW functional statusFrom FS02

Firmware versionV4.2

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M3

Module swapping during operation (hot swapping)Yes; Multi-hot swapping

Isochronous modeNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV15 SP1

STEP 7 configurable/integrated from versionV5.5 SP4, only up to FW V3.1

PROFIBUS from GSD version/GSD revisionsi0181ab.gs* (V04.02.13, Rev.3, Rev.5)

Configuration control

via datasetYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Short-circuit protectionYes

Mains buffering

Mains/voltage failure stored energy time10 ms

Input current

Current consumption, max.335 mA

Inrush current, max.1.6 A

I²t0.038 A²·s

Power loss

Power loss, typ.1.5 W

Address space per module

Address space per module, max.32 byte; For input and output data respectively

Address space per station

Address space per station, max.244 byte

Rack

Quantity of operable ET 200SP modules, max.32

Quantity of operable ET 200AL modules, max.16

Interfaces

Number of PROFIBUS interfaces1

Interface types

RS 485Yes; 1 integrated RS 485 socket

Output current of the interface, max.90 mA

Protocols

PROFIBUS DP deviceYes

RS 485

Transmission rate, max.12 Mbit/s

Protocols

Supports protocol for PROFINET IONo

PROFIsafeYes

PROFIBUSYes

EtherNet/IPNo

Modbus TCPNo

Open IE communication

TCP/IPNo

Services

— SYNC capabilityYes

— FREEZE capabilityYes

— DPV0Yes

— DPV1Yes

Interrupts/diagnostics/status information

Status indicatorYes

AlarmsYes

Diagnostics functionYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDYes; Yellow LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Connection display DPYes; green DP LED

Potential separation

between backplane bus and electronicsNo

between PROFIBUS DP and all other circuit componentsYes

between supply and all other circuitsNo

Permissible potential difference

between different circuitsSafety extra low voltage SELV

Isolation

Isolation tested with707 V DC (type test)

Ambient temperature during operation

horizontal installation, min.-25 °C; No condensation

horizontal installation, max.60 °C

vertical installation, min.-25 °C; No condensation

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.5 000 m; Restrictions for installation altitudes > 2 000 m, see manual

ET-Connection

via BU/BA SendYes; + 16 ET 200AL modules

Dimensions

Width50 mm

Height117 mm

Depth74 mm

Weights

Weight, approx.150 g

Accessories 16

Genuine accessories that can be used with the Siemens 6ES7155-6BA01-0CN0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES5710-8MA11	Aksesuar · Mounting rail
6ES5710-8MA21	Aksesuar · Mounting rail
6ES5710-8MA31	Aksesuar · Mounting rail
6ES5710-8MA41	Aksesuar · Mounting rail
6ES7193-6LA10-0AA0	Aksesuar · label
6ES7193-6LA10-0AG0	Aksesuar · label
6ES7193-6LF30-0AW0	Aksesuar · label
6ES7193-6LR10-0AA0	Aksesuar · label
6ES7972-0BB70-0XA0	Aksesuar · PROFIBUS connector
6ES7193-6LR10-0AG0	Aksesuar · label
6ES7193-6PA00-0AA0	Yedek parça · spare part
6ES7193-4JB00-0AA0	Yedek parça · Connection plug · HMI connecting components
6ES7193-6MR00-0AA0	Zorunlu ek ürün · Mounting rail
6ES7193-6MR00-0BA0	Zorunlu ek ürün · Mounting rail
6ES7193-6MR00-0CA0	Zorunlu ek ürün · Mounting rail
6ES7193-6MR00-0DA0	Zorunlu ek ürün · Mounting rail
