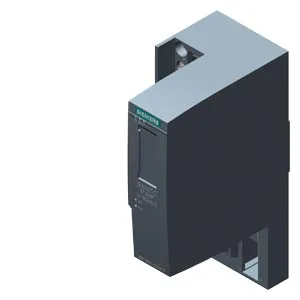

Siemens 6ES7155-6AU00-0HM0

SIMATIC ET 200SP, PROFINET, 2-port interface module IM 155-6 PN R1, 1 slot for BusAdapter, max. 64 I/O modules R1 redundancy, multi hot swap, 1 ms, PN security class 1

SiemensMFR # 6ES7155-6AU00-0HM0SKU # YLSFZCF8BBTVDM4

Product type designationIM 155-6 PN R1

HW functional statusFrom FS03

Firmware versionV6.1

FW update possibleYes

I&M dataYes; I&M0 to I&M4

Isochronous modeNo

Have questions?Chat on WhatsApp

About This Product

SIMATIC ET 200SP, PROFINET, 2-port interface module IM 155-6 PN R1, 1 slot for BusAdapter, max. 64 I/O modules R1 redundancy, multi hot swap, 1 ms, PN security class 1

Siemens 6ES7155-6AU00-0HM0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIM 155-6 PN R1

HW functional statusFrom FS03

Firmware versionV6.1

FW update possibleYes

Product function

I&M dataYes; I&M0 to I&M4

Module swapping during operation (hot swapping)Yes; Multi-hot swapping

Isochronous modeNo

IRTNo

Engineering with

STEP 7 TIA Portal configurable/integrated from versionV19

STEP 7 configurable/integrated from versionuse GSD file

PROFINET from GSD version/GSD revisionGSDML V2.45

Configuration control

via datasetNo

CiR - Configuration in RUN

Reparameterization possible in RUNYes

reconfiguration possible in RUNYes

Supply voltage

Rated value (DC)24 V

permissible range, lower limit (DC)19.2 V

permissible range, upper limit (DC)28.8 V

Reverse polarity protectionYes

Short-circuit protectionYes

Mains buffering

Mains/voltage failure stored energy time10 ms

Input current

Current consumption, max.700 mA

Inrush current, max.5 A

I²t0.36 A²·s

Power loss

Power loss, typ.2.4 W

Address space per module

Address space per module, max.288 byte; For input and output data respectively

Address space per station

Address space per station, max.1 440 byte

Rack

Quantity of operable ET 200SP modules, max.64

Quantity of operable ET 200AL modules, max.0

Submodules

Number of submodules per station, max.256

Interfaces

Transmission procedure100BASE-TX

Number of PROFINET interfaces1; 2 ports (switch)

Interface types

RJ 45 (Ethernet)Yes; with BusAdapter

Number of ports2; with BusAdapter

integrated switchYes

BusAdapter (PROFINET)Yes; BA 2x RJ45, BA 2x M12, BA 2x FC, BA 2x SCRJ, BA SCRJ/RJ45, BA SCRJ/FC, BA 2x LC, BA LC/RJ45, BA LC/FC, BA 2x LC-LD, BA LC-LD/RJ45, BA LC-LD/M12

Protocols

PROFINET IO DeviceYes

Open IE communicationYes

Media redundancyYes; PROFINET MRP client

Services

— IRTNo

— Dynamic Frame Packing (DFP)No

— PROFIenergyNo

— Prioritized startupNo

— Shared deviceNo

RJ 45 (Ethernet)

Transmission procedurePROFINET with 100 Mbit/s full duplex (100BASE-TX)

100 MbpsYes

AutonegotiationYes

AutocrossingYes

Protocols

Supports protocol for PROFINET IOYes

PROFIsafeYes

PROFIBUSNo

EtherNet/IPNo

Modbus TCPNo

Redundancy mode

PROFINET system redundancy (S2)No

PROFINET system redundancy (R1)Yes

H-Sync forwardingYes

Media redundancy

— MRPYes

— MRPDNo

Open IE communication

TCP/IPYes

SNMPYes

LLDPYes

Interrupts/diagnostics/status information

Status indicatorYes

AlarmsYes

Diagnostics functionYes

Diagnostics indication LED

RUN LEDYes; green LED

ERROR LEDYes; red LED

MAINT LEDYes; Yellow LED

ACT LEDYes; green LED

Monitoring of the supply voltage (PWR-LED)Yes; green PWR LED

Connection display LINK TX/RXYes; 2x green link LEDs on BusAdapter

Potential separation

between backplane bus and electronicsNo

between PROFINET and all other circuitsYes; 1500 V AC (type test)

between supply and all other circuitsYes

Permissible potential difference

between different circuitsSafety extra low voltage SELV

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Network loading class3

Ecological footprint

environmental product declarationYes

Global warming potential

— global warming potential, (total) [CO2 eq]105 kg

— global warming potential, (during production) [CO2 eq]13.7 kg

— global warming potential, (during operation) [CO2 eq]91.9 kg

— global warming potential, (after end of life cycle) [CO2 eq]-0.617 kg

Security

PROFINET Security Class1

signed firmware updateYes

Secure BootNo

securely removing dataNo

data integrityYes

Ambient temperature during operation

horizontal installation, min.-30 °C; No condensation

horizontal installation, max.60 °C

vertical installation, min.-30 °C; No condensation

vertical installation, max.50 °C

Altitude during operation relating to sea level

Installation altitude above sea level, max.2 000 m

ET-Connection

via BU/BA SendNo

Dimensions

Width50 mm

Height138 mm

Depth89 mm

Weights

Weight, approx.192 g; without BusAdapter

Accessories 18

Genuine accessories that can be used with the Siemens 6ES7155-6AU00-0HM0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES5710-8MA11	Aksesuar · Mounting rail
6ES5710-8MA21	Aksesuar · Mounting rail
6ES5710-8MA31	Aksesuar · Mounting rail
6ES5710-8MA41	Aksesuar · Mounting rail
6ES7193-6LR10-0AG0	Aksesuar · label
6ES7193-6LR10-0AA0	Aksesuar · label
6ES7193-6LF30-0AW0	Aksesuar · label
6ES7193-6LA10-0AG0	Aksesuar · label
6ES7193-6LA10-0AA0	Aksesuar · label
6ES7193-6PA00-0AA0	Yedek parça · spare part
6ES7193-4JB00-0AA0	Yedek parça · Connection plug · HMI connecting components
6ES7193-6MR00-0AA0	Zorunlu ek ürün · Mounting rail
6ES7193-6MR00-0BA0	Zorunlu ek ürün · Mounting rail
6ES7193-6MR00-0CA0	Zorunlu ek ürün · Mounting rail
6ES7193-6MR00-0DA0	Zorunlu ek ürün · Mounting rail
6ES7193-6AR00-0AA0	Zorunlu ek ürün · BusAdapter
6ES7193-6AM00-0AA0	Zorunlu ek ürün · BusAdapter
6ES7193-6AF00-0AA0	Zorunlu ek ürün · BusAdapter
