How can I get a price quote for Siemens 6ES7154-2AA01-0AB0?

You can request a fast quote for Siemens 6ES7154-2AA01-0AB0 from Yılsa Engineering. Reference part number CEY-55221B13077A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7154-2AA01-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7154-2AA01-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7154-2AA01-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

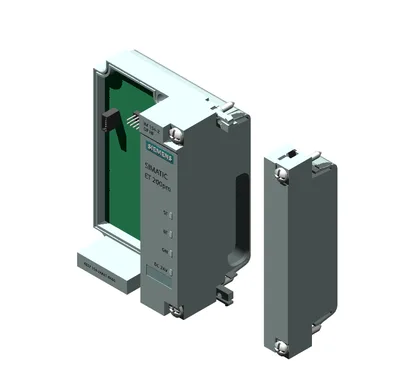

Siemens 6ES7154-2AA01-0AB0

SIMATIC DP, PROFIBUS DP interface module IM 154-2 High Feature for ET 200pro incl. termination module, connection module in 6ES7194-4A.00-0AA0 to be ordered separately

SiemensMFR # 6ES7154-2AA01-0AB0SKU # CEY-55221B13077A

Product type designationIM 154-2 DP HF

Vendor identification (VendorID)8119H

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

Short-circuit protectionYes; over exchangeable fuses

Rated value (DC)24 V

Have questions?Chat on WhatsApp

About This Product

SIMATIC DP, PROFIBUS DP interface module IM 154-2 High Feature for ET 200pro incl. termination module, connection module in 6ES7194-4A.00-0AA0 to be ordered separately

Siemens 6ES7154-2AA01-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

Product type designationIM 154-2 DP HF

Vendor identification (VendorID)8119H

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

Short-circuit protectionYes; over exchangeable fuses

power supply according to NEC Class 2 requiredNo

Load voltage 2L+

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

Input current

from supply voltage 1L+, max.200 mA

Power loss

Power loss, typ.5 W

Address space per module

Inputs244 byte

Outputs244 byte

Interfaces

Interfaces/bus typePROFIBUS DP

RS 485

Transmission rate, max.12 Mbit/s

automatic detection of transmission rateYes

Protocols

Supports protocol for PROFINET IONo

PROFIsafeYes

PROFIBUSYes

EtherNet/IPNo

Services

— SYNC capabilityYes

— FREEZE capabilityYes

— Direct data exchange (slave-to-slave communication)Yes

Alarms

Diagnostic alarmYes; Parameterizable

Hardware interruptYes; Parameterizable

Diagnostics indication LED

For load voltage monitoringYes

Bus fault BF (red)Yes

Group error SF (red)Yes

Monitoring 24 V voltage supply ON (green)Yes

Parameter

Swapping interruptParameterizable

Startup if setpoint not equal to actual configurationParameterizable

Hot swapping of modulespossible

Potential separation

between supply voltage and electronicsYes

Isolation

Isolation tested with707 V DC (type test)

Ambient temperature during operation

min.-25 °C

max.55 °C

Ambient temperature during storage/transportation

min.-40 °C

max.70 °C

Dimensions

Width90 mm

Height130 mm

Depth60 mm

Weights

Weight, approx.375 g

Accessories 14

Genuine accessories that can be used with the Siemens 6ES7154-2AA01-0AB0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7194-4AK00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4AL00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4GA00-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GA60-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GA20-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GB00-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GB60-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GB20-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GC70-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GC60-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GC20-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GD00-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GD10-0AA0	Zorunlu ek ürün · Module rack
6ES7194-4GD20-0AA0	Zorunlu ek ürün · Module rack
