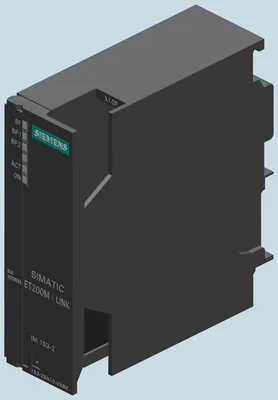

Siemens 6ES7153-2BA70-0XB0
THE INTERFACE MODULE (6ES7153-2BA70-0XB0) CANNOT LONGER BE USED ON BUS MODULE (6ES7195-7HE80-0XA0) (SEE ALSO ARTICLE: 104981189) DP/PA-Link and ET200M IM153-2 HF for extended temperature range for max. 12 S7-300 modules with redundancy capability, Timestamping suitable for isochronous mode New features: up to 12 modules can be used Slave Initiative for Drive ES and Switch ES Expanded quantity structure for HART auxiliary variables Operation of the 64-channel modules 32 signals / slot +++ Observe compatibility instructions in manual +++
Product type designationIM 153-2 OD
Firmware versionV6.1
Vendor identification (VendorID)801Eh
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
About This Product
THE INTERFACE MODULE (6ES7153-2BA70-0XB0) CANNOT LONGER BE USED ON BUS MODULE (6ES7195-7HE80-0XA0) (SEE ALSO ARTICLE: 104981189) DP/PA-Link and ET200M IM153-2 HF for extended temperature range for max. 12 S7-300 modules with redundancy capability, Timestamping suitable for isochronous mode New features: up to 12 modules can be used Slave Initiative for Drive ES and Switch ES Expanded quantity structure for HART auxiliary variables Operation of the 64-channel modules 32 signals / slot +++ Observe compatibility instructions in manual +++
Siemens 6ES7153-2BA70-0XB0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
Product type designationIM 153-2 OD
Firmware versionV6.1
Vendor identification (VendorID)801Eh
Supply voltage
Rated value (DC)24 V
permissible range, lower limit (DC)20.4 V
permissible range, upper limit (DC)28.8 V
external protection for power supply lines (recommendation)2,5 A
Mains buffering
Mains/voltage failure stored energy time5 ms
Input current
Current consumption, max.650 mA
Inrush current, typ.3 A
I²t0.1 A²·s
Output current
for backplane bus (5 V DC), max.1.5 A
Power loss
Power loss, typ.5.5 W
Address space per module
Inputs244 byte
Outputs244 byte
Hardware configuration
number of modules per DP device interface, max.12
Time stamp
Accuracy1 ms; 1 ms at up to 8 modules; 10 ms at up to 12 modules
Number of message buffers15
Messages per message buffer20
Number of stampable digital inputs, max.128; Max. 128 signals/station; max. 32 signals/slot
Time formatRFC 1119
Time resolution0.466 ns
Time interval for transmitting the message buffer if a message is present1 000 ms
Time stamp on signal changerising / falling edge as signal entering or exiting
Interfaces
Transmission procedureRS 485
Transmission rate, max.12 Mbit/s
1. Interface
automatic detection of transmission rateYes
Interface types
Output current of the interface, max.70 mA
Design of the connection9-pin sub D socket
PROFIBUS DP device
GSD fileSI05801E.GSG
automatic baud rate searchYes
Protocols
Bus protocol/transmission protocolPROFIBUS DP to EN 50170
PROFIBUS DP
Number of node addresses, max.1 to 125 permitted
Services
— SYNC capabilityYes
— FREEZE capabilityYes
— Direct data exchange (slave-to-slave communication)Yes; as publisher with all IO, as subscriber with F-IO only
Potential separation
Potential separation existsYes
Isolation
Isolation tested withIsolation voltage 500 V
Degree and class of protection
IP degree of protectionIP20
Ambient temperature during operation
horizontal installation, min.-25 °C
horizontal installation, max.60 °C
vertical installation, min.-25 °C
vertical installation, max.40 °C
Altitude during operation relating to sea level
Installation altitude above sea level, max.3 000 m
Configuration software
STEP 7Yes; STEP 7 / COM PROFIBUS / non-Siemens tools via GSD file
Dimensions
Width40 mm
Height125 mm
Depth117 mm
Weights
Weight, approx.360 g
