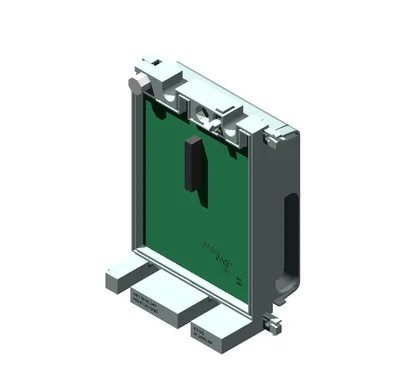

Siemens 6ES7148-4FC00-0AB0

SIMATIC DP, ET 200pro fail-safe electronic module 4/8 F-DI/4 F-DO 24 V DC/2A PROFIsafe, 90 mm overall width, up to category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849)

SiemensMFR # 6ES7148-4FC00-0AB0SKU # CEY-937FC77D6CBA

Rated value (DC)24 V

from supply voltage 1L+, max.100 mA; Typical

from backplane bus 3.3 V DC, max.20 mA

Power loss, typ.5.8 W

Number of digital inputs8

for signal "1", typ.3.7 mA

Have questions?Chat on WhatsApp

About This Product

SIMATIC DP, ET 200pro fail-safe electronic module 4/8 F-DI/4 F-DO 24 V DC/2A PROFIsafe, 90 mm overall width, up to category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849)

Siemens 6ES7148-4FC00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

Rated value (DC)24 V

power supply according to NEC Class 2 requiredNo

Input current

from supply voltage 1L+, max.100 mA; Typical

from load voltage 2L+ (without load), max.50 mA; Typical

from backplane bus 3.3 V DC, max.20 mA

Power loss

Power loss, typ.5.8 W

Digital inputs

Number of digital inputs8

Input current

for signal "1", typ.3.7 mA

Digital outputs

Number of digital outputs4

Short-circuit protectionYes

Controlling a digital inputYes; digital output, according to IEC 61131-2, type 2

Output current

for signal "1" rated value2 A

Highest safety class achievable in safety mode

Performance level according to ISO 13849-1e

SIL acc. to IEC 615083

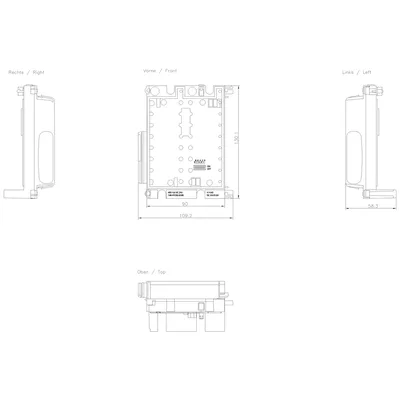

Dimensions

Width90 mm

Height130 mm

Depth65 mm
