How can I get a price quote for Siemens 6ES7148-4CA00-0AA0?

You can request a fast quote for Siemens 6ES7148-4CA00-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B03011E2. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7148-4CA00-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7148-4CA00-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7148-4CA00-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

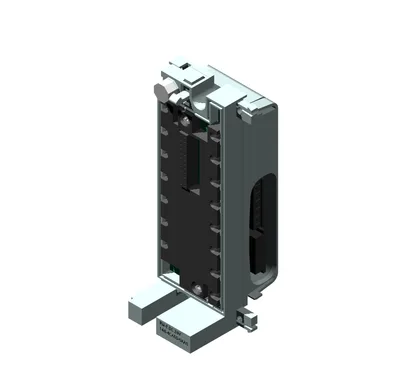

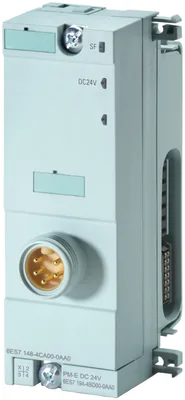

Siemens 6ES7148-4CA00-0AA0

SIMATIC DP, power modules for electronic modules ET 200pro PM-E, 24 V DC, incl. bus module, connection module PM-E 6ES7194-4B.00-0AA0 to be ordered separately

SiemensMFR # 6ES7148-4CA00-0AA0SKU # CEY-8EF3B03011E2

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

from load voltage 2L+, max.3 mA

Power loss, typ.0.1 W

Diagnostics functionYes

Diagnostic information readableYes

Have questions?Chat on WhatsApp

About This Product

SIMATIC DP, power modules for electronic modules ET 200pro PM-E, 24 V DC, incl. bus module, connection module PM-E 6ES7194-4B.00-0AA0 to be ordered separately

Siemens 6ES7148-4CA00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Load voltage 2L+

Rated value (DC)24 V

Short-circuit protectionYes; via an exchangeable fuse in the power module

Reverse polarity protectionYes; against destruction

Input current

from load voltage 2L+, max.3 mA

Current carrying capacity

max.10 A; up to 55 °C (on the internal busbars of the ET 200pro)

Power loss

Power loss, typ.0.1 W

Interrupts/diagnostics/status information

Diagnostics functionYes

Diagnoses

Diagnostic information readableYes

Missing load voltageYes

Diagnostics indication LED

For load voltage monitoringYes

Group error SF (red)Yes

Parameter

Missing load voltagePotential group of the power module

Potential separation

between load voltage and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Dimensions

Width45 mm

Height130 mm

Depth35 mm

Weights

Weight, approx.140 g

Accessories 5

Genuine accessories that can be used with the Siemens 6ES7148-4CA00-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6ES7194-4BD00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4BL00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4BA00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4BE00-0AA0	Zorunlu ek ürün · Connection module
6ES7194-4BC00-0AA0	Zorunlu ek ürün · Connection module
