How can I get a price quote for Siemens 6ES7145-4FF00-0AB0?

You can request a fast quote for Siemens 6ES7145-4FF00-0AB0 from Yılsa Engineering. Reference part number CEY-937FC77CB70C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6ES7145-4FF00-0AB0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6ES7145-4FF00-0AB0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6ES7145-4FF00-0AB0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

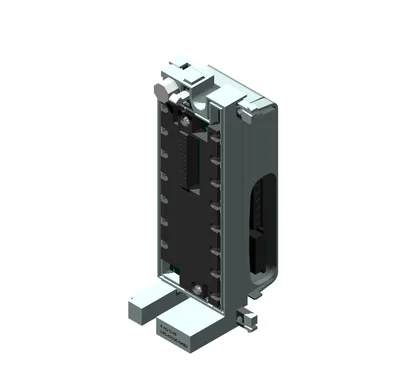

Siemens 6ES7145-4FF00-0AB0

SIMATIC DP, electronic modules for ET 200pro 4 AO U High Feature, +-10 V; 0...10 V; 1...5 V, Channel diagnostics; incl. bus module, connection module IO 6ES7194-4..00-0AA0 to be ordered separately

SiemensMFR # 6ES7145-4FF00-0AB0SKU # CEY-937FC77CB70C

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

from supply voltage 1L+, max.65 mA

from backplane bus 3.3 V DC, max.10 mA

Number of outputs4

Short-circuit protectionYes; per module

Have questions?Chat on WhatsApp

About This Product

SIMATIC DP, electronic modules for ET 200pro 4 AO U High Feature, +-10 V; 0...10 V; 1...5 V, Channel diagnostics; incl. bus module, connection module IO 6ES7194-4..00-0AA0 to be ordered separately

Siemens 6ES7145-4FF00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

Input current

from supply voltage 1L+, max.65 mA

from backplane bus 3.3 V DC, max.10 mA

Actuator supply

Number of outputs4

Short-circuit protectionYes; per module

Output current

up to 55 °C, max.1 A

Power loss

Power loss, typ.1.7 W

Address space per module

Address space per module, max.8 byte

Analog outputs

Number of analog outputs4

Voltage output, short-circuit protectionYes; per channel, electronic to chassis

Voltage output, short-circuit current, max.50 mA

Cycle time (all channels) max.3 ms

Output ranges, voltage

0 to 10 VYes

1 V to 5 VYes

-10 V to +10 VYes

Connection of actuators

for voltage output two-wire connectionYes

for voltage output four-wire connectionYes

Load impedance (in rated range of output)

with voltage outputs, min.1 000 Ω

with voltage outputs, capacitive load, max.1 µF

Destruction limits against externally applied voltages and currents

Voltages at the outputs towards MANA16 V; Permanent

Cable length

shielded, max.30 m

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.15 bit; at -10 to +10 V; 14 bit at 1 to 5 V; 15 bit at 0 to 10 V

Conversion time (per channel)0.7 ms

Settling time

for resistive load0.1 ms

for capacitive load6 ms

Errors/accuracies

Output ripple (relative to output range, bandwidth 0 to 50 kHz), (+/-)0.02 %

Linearity error (relative to output range), (+/-)0.1 %

Temperature error (relative to output range), (+/-)0.01 %/K

Repeat accuracy in steady state at 25 °C (relative to output range), (+/-)0.05 %

Operational error limit in overall temperature range

Voltage, relative to output range, (+/-)0.2 %

Basic error limit (operational limit at 25 °C)

Voltage, relative to output range, (+/-)0.15 %

Interrupts/diagnostics/status information

Substitute values connectableYes

Alarms

Diagnostic alarmYes; Parameterizable

Hardware interruptNo

Diagnoses

Diagnostic information readableYes

Wire breakNo

Short-circuitYes; per channel, not in zero range

Diagnostics indication LED

Group error SF (red)Yes

Potential separation analog outputs

between the channelsNo

between the channels and backplane busYes

Isolation

Isolation tested with707 V DC (type test)

Dimensions

Width45 mm

Height130 mm

Depth35 mm

Weights

Weight, approx.150 g
