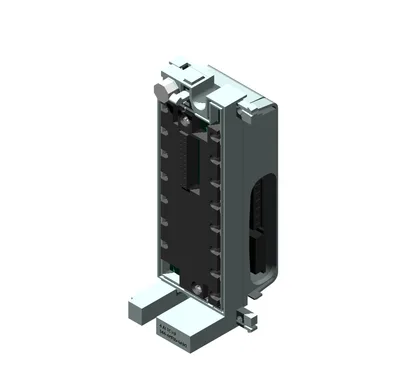

Siemens 6ES7144-4PF00-0AB0

SIMATIC DP, electronic module for ET 200pro, 4 AI TC High Feature, TC type B, E, J, K, L, N, R, S,T voltage +/-80 mV, channel diagnostics, incl. bus module, connection module IO 6ES7194-4..00-0AA0 to be ordered separately

SiemensMFR # 6ES7144-4PF00-0AB0SKU # CEY-8EF3B0387E54

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

from supply voltage 1L+, max.34 mA; Typical

from backplane bus 3.3 V DC, max.20 mA; Typical

Power loss, typ.0.7 W

Address space per module, max.8 byte

Have questions?Chat on WhatsApp

About This Product

Siemens 6ES7144-4PF00-0AB0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Supply voltage

Rated value (DC)24 V

Reverse polarity protectionYes; against destruction

Input current

from supply voltage 1L+, max.34 mA; Typical

from backplane bus 3.3 V DC, max.20 mA; Typical

Power loss

Power loss, typ.0.7 W

Address space per module

Address space per module, max.8 byte

Analog inputs

Number of analog inputs4

permissible input voltage for voltage input (destruction limit), max.20 V

Cycle time (all channels) max.Number of active channels per module x basic conversion time

Technical unit for temperature measurement adjustableYes; °C/°F/K

Input ranges (rated values), voltages

-80 mV to +80 mVYes

— Input resistance (-80 mV to +80 mV)10 MΩ

Input ranges (rated values), thermocouples

Type BYes

— Input resistance (Type B)10 MΩ

Type EYes

— Input resistance (Type E)10 MΩ

Type JYes

— Input resistance (type J)10 MΩ

Type KYes

— Input resistance (Type K)10 MΩ

Type LYes

— Input resistance (Type L)10 MΩ

Type NYes

— Input resistance (Type N)10 MΩ

Type RYes

— Input resistance (Type R)10 MΩ

Type SYes

— Input resistance (Type S)10 MΩ

Type TYes

— Input resistance (Type T)10 MΩ

Temperature compensation

— internal temperature compensationYes

— external temperature compensation with compensations socketYes

Cable length

shielded, max.30 m

Analog value generation for the inputs

Measurement principleintegrating

Integration and conversion time/resolution per channel

Resolution with overrange (bit including sign), max.15 bit; + sign

Integration time (ms)2,5 / 16,67 / 20 / 100 ms

Interference voltage suppression for interference frequency f1 in Hz10 / 50 / 60 / 400 Hz

Conversion time (per channel)4.7/19/22/102 ms

Smoothing of measured values

parameterizableYes

Step: NoneYes; 1x cycle time

Step: lowYes; 4x cycle time

Step: MediumYes; 16x cycle time

Step: HighYes; 64x cycle time

Connection of signal encoders

for voltage measurementYes

Errors/accuracies

Linearity error (relative to input range), (+/-)0.01 %

Temperature error (relative to input range), (+/-)0.0004 %/K; Positive temperature

Crosstalk between the inputs, min.-90 dB; max.

Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0.01 %

Operational error limit in overall temperature range

Voltage, relative to input range, (+/-)0.12 %; Positive temperature

Basic error limit (operational limit at 25 °C)

Voltage, relative to input range, (+/-)0.1 %

Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency

Series mode interference (peak value of interference < rated value of input range), min.42 dB

Common mode interference (USS < 2.5 V), min.85 dB; Interference voltage < 10 V

Interrupts/diagnostics/status information

Diagnostics functionYes

Alarms

Diagnostic alarmYes; Parameterizable

Hardware interruptNo

Diagnoses

Diagnostic information readableYes

Wire breakYes

Overflow/UnderflowYes

Diagnostics indication LED

Group error SF (red)Yes

Parameter

Comparison pointNone/internal/RTD(0)/dyn. ref. temp./fix. ref. temp.

Potential separation analog inputs

between the channelsNo

between the channels and backplane busYes

Permissible potential difference

between the inputs (UCM)20 Vpp AC

Isolation

Isolation tested with707 V DC (type test)

Standards, approvals, certificates

Suitable for applications according to AMS 2750Yes; Declaration of Conformity, see online support entry 109757262

Suitable for applications according to CQI-9Yes; Based on AMS 2750 E

Dimensions

Width45 mm

Height130 mm

Depth35 mm

Weights

Weight, approx.150 g
